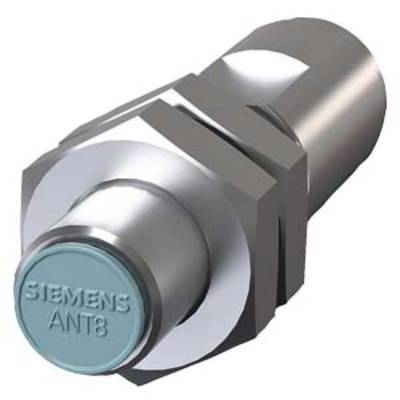

Siemens 6GT2398-1CF10 6GT23981CF10 Antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 268.07 / piece)
€ 268.07
plus VAT.
14-day return policy included
Technical specifications
- Material: stainless steel
- Protection class: IP67
- Product type
Antenna
- Type
Monopole antenna
- Antenna socket
M8 plug
- Weight
140 g
- Mounting type
Screw fastening
- Length
40 mm
- Temperature range
-25°C to +70 °C
Other
38 mm
Plug
Other
3 m
TRUE
TRUE
TRUE
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1734986 Siemens 6GT2398-1CF10 6GT23981CF10 Antenna
User & Safety Instructions
User & Safety Instructions 1734986 Siemens 6GT2398-1CF10 6GT23981CF10 Antenna
Description
SIMATIC RF200/RF300 Antenna ANT 8 M8x 38 mm, IP67, -25 to +70°C, with drag chain capable antenna cable, PUR can be plugged on both sides, UL 758, length 3 m consisting of: 1x 6GT23981CF00 1x 6GT23910AH30 antenna ANT 8 with antenna cable Eespecially suitable for difficult installation situations with little space, e.g. for mounting on robots for the identification of tools (tool identification).Very small design in the M8 housing enables the very exact positioning. The 3 m antenna connection cable is suitable for tow chains and can be plugged on both sides.
