Image similar
Siemens 6GT28980AC00 Rail mounted PSU (DIN) 24 V DC 3 A No. of outputs:2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Nominal input voltage
AC 100 V - 240 V
- Product type
Rail mounted PSU (DIN)
- Max. output current
3 A
- Output current (max.) - rounded
3 A
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
24 V DC
- No. of outputs
2 x
- Connection
Plug
- Manufacturer part #
6GT28980AC00
- Content
1 pc(s)
- PSU features
incl. mains adapter
- Type
6GT2898-0AC00
85000
35000 mm
175000 mm
AC
IP67
TRUE
3.9 A
3 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2873252 Siemens 6GT28980AC00 Rail mounted PSU (DIN) 24 V DC 3 A No. of outputs:2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2873252 Siemens 6GT28980AC00 Rail mounted PSU (DIN) 24 V DC 3 A No. of outputs:2 x Content 1 pc(s)
Description

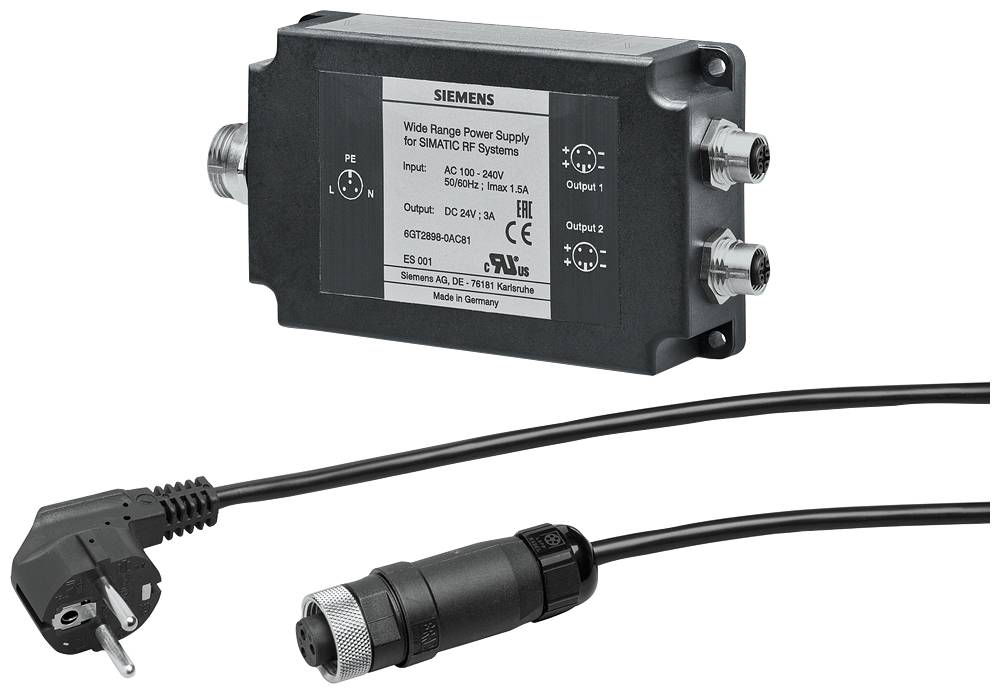

SIMATIC RF600 Wide-range power supply for SIMATIC RF systems In: AC: 100-240V Out: 24V DC 3A CE, UL, CSA Protection class IP67 with power cable/plug CEE 7/7 consisting of: 1x 6GT28980AC81 1x 6GT28980AC01. SIMATIC RF wide-range power supply unit with EU connection cables For the power supply of RFID read/write devices. With EU/CEE 7/7-plug for use in Europe.Two readers can be connected directly. Robust and cast industrial power supply unit with high protection class for use directly on the process.
