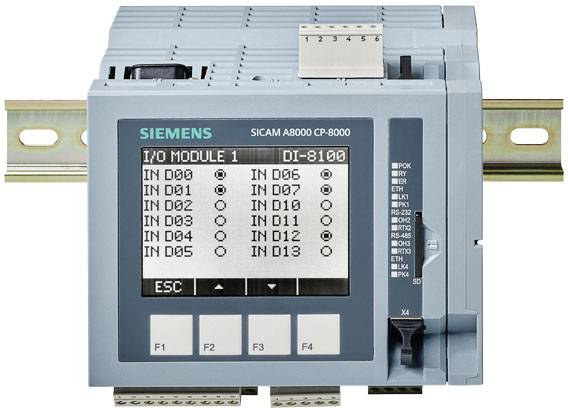

Image similar
Siemens 6MF2101-1AB10-0AA0 6MF21011AB100AA0 PLC remote actuator
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Electrical connection type: Screw connection
- Housing material: Plastic
- Surge voltage resistance: 2.5 kV
- Connectable conductor cross-section: 0.2 mm² - 2.5 mm²
- Mounting height in relation to normal height hull max.: 3000 m.
- Status indicator: Yes
- Surge voltage 4 kV
- Memory capacity of RAM memory: 32 MB
- Product type
PLC remote actuator
- Interfaces
Ethernet
- No. of digital inputs (max.)
12
- No. of outputs (max.)
8
- No. of relay outputs (max.)
8
- Supported protocols
Modbus RTU slave;Security event log
- Min. operating voltage
18 V DC
- Operating voltage
18 - 78 V DC
- Max. operating voltage
78 V DC
- Height
124 mm
- Length
123 mm
- Width
128 mm
IP40
- Type
6MF2101-1AB10-0AA0
- Manufacturer part #
6MF21011AB100AA0
- Dim
(L x W x H) 123 x 128 x 124 mm
- Display
Yes
- Fitting type (details)
Top hat DIN rail mounting
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
- Series
S7-1500
128
124 mm
123 mm
12
8
DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2263725 Siemens 6MF2101-1AB10-0AA0 6MF21011AB100AA0 PLC remote actuator
User & Safety Instructions
User & Safety Instructions 2263725 Siemens 6MF2101-1AB10-0AA0 6MF21011AB100AA0 PLC remote actuator
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
