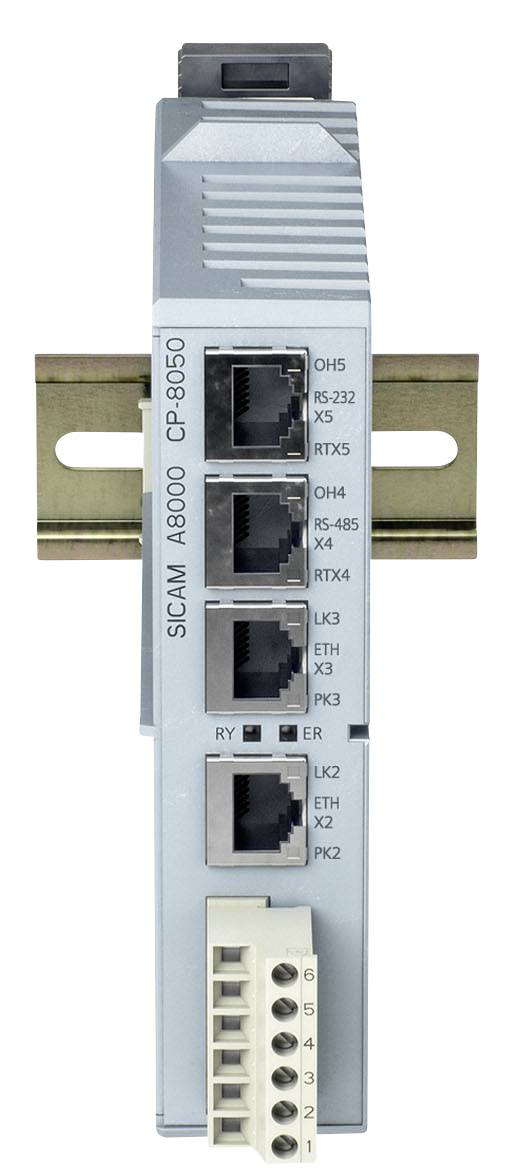

Siemens 6MF2805-0AA00 6MF28050AA00 PLC controller
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Electrical connection type: Screw connection
- Housing material: Plastic
- Surge voltage resistance: 2.5 kV
- Connectable conductor cross-section: 0.2 mm² - 2.5 mm²
- Mounting height in relation to normal height hull max.: 3000 m.
- Status indicator: Yes
- Surge voltage 4 kV
- Memory capacity of RAM memory: 512 MB
- Product type
PLC controller
- Interfaces
Ethernet
- No. of outputs (max.)
2
- No. of relay outputs (max.)
2
- Supported protocols
Modbus RTU slave;Security event log
- Height
132 mm
- Length
124 mm
- Width
30 mm
IP40
- Type
6MF2805-0AA00
- Manufacturer part #
6MF28050AA00
- Dim
(L x W x H) 124 x 30 x 132 mm
- Display
Yes
- Fitting type (details)
Top hat DIN rail mounting
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-25 °C
- Series
S7-1500
30
132 mm
124 mm
0
2
DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2263728 Siemens 6MF2805-0AA00 6MF28050AA00 PLC controller
User & Safety Instructions
User & Safety Instructions 2263728 Siemens 6MF2805-0AA00 6MF28050AA00 PLC controller
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
