Siemens 6XV18015DH10 Current Cable Grey 1.00 m
EAN:
Part number:
Item no:
Datasheet (PDF)
11 Piece(s)
Sales and shipping:
Number
Total (€ 36.97 / piece)
€
Technical specifications
- 5.7 mm outer diameter/the sheath:
- External diameter/of the inner conductor: 1.1 mm
- External diameter/of the wire insulation: 1.7 mm
- The number of bending cycles: 100000
- Number of electrical wires: 4
- Bending radius / with a unique bend/minimum allowed: 57 mm
- Bending radius / with constant bending: 57 mm
- Weight per length: 54 kg/km
- Product type
Current Cable
- Cable use
Current
- Version
Cable
- Cable length
1.00 m
- Factory colour
Grey
- Nominal voltage (details)
300 V
- Type
M 12-180
- Halogen-free
No
300 V
0.75 mm²
Other
Other
1 m
Grey
Polyvinyl chloride (PVC)
4
FALSE
5.7 mm
300-300 V
Other
FALSE
FALSE
None
None
None
None
Documents & Downloads
Datasheet
Datasheet 1699828 Siemens 6XV18015DH10 Current Cable Grey 1.00 m
User & Safety Instructions
User & Safety Instructions 1699828 Siemens 6XV18015DH10 Current Cable Grey 1.00 m
Description

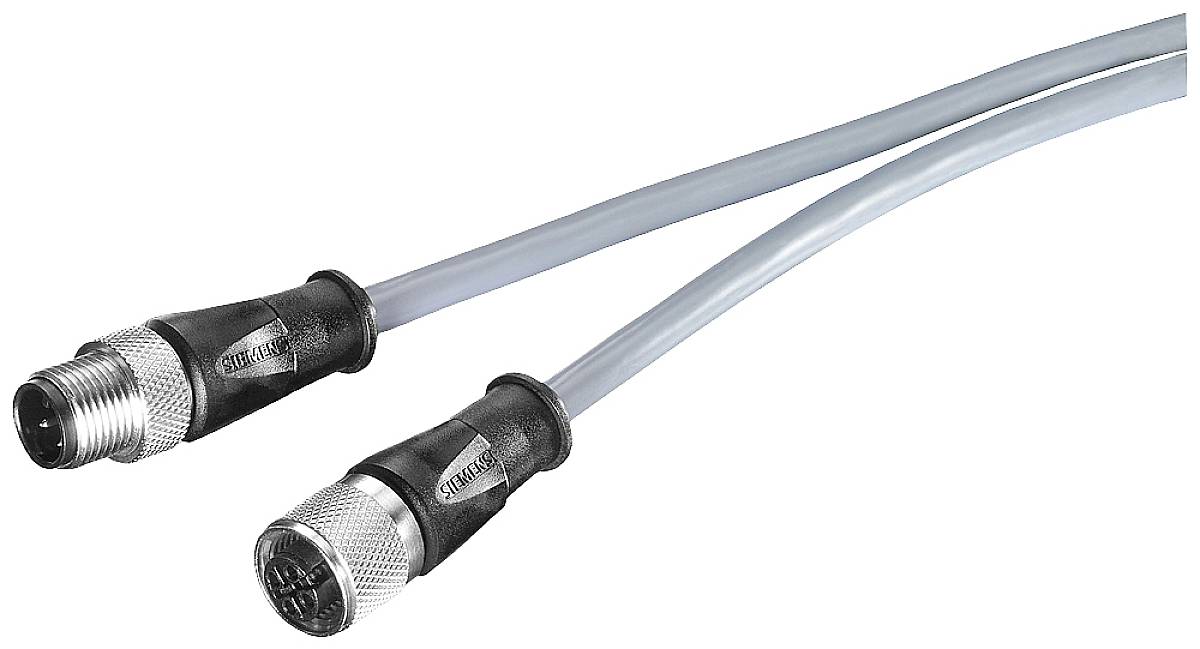

Power connecting cable M12-180/M12-180 for Power supply of the ET 200, pre-assembled cable with M12 connector and M12 socket, A-coded, 4-pole, 1.0 m
