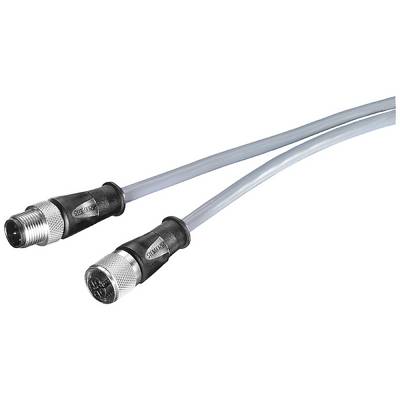

Siemens 6XV18015DH15 Current Cable Grey 1.50 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- 5.7 mm outer diameter/the sheath:
- External diameter/of the inner conductor: 1.1 mm
- External diameter/of the wire insulation: 1.7 mm
- The number of bending cycles: 100000
- Number of electrical wires: 4
- Bending radius / with a unique bend/minimum allowed: 57 mm
- Bending radius / with constant bending: 57 mm
- Weight per length: 54 kg/km
- Product type
Current Cable
- Cable use
Current
- Version
Cable
- Connector version
straight
- Cable length
1.50 m
- Factory colour
Grey
- Nominal voltage (details)
300 V
- Type
M 12-180
- Halogen-free
No
300 V
0.75 mm²
Other
Other
1.5 m
Grey
Polyvinyl chloride (PVC)
4
FALSE
5.7 mm
300-300 V
Other
FALSE
FALSE
None
None
None
None
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1732097 Siemens 6XV18015DH15 Current Cable Grey 1.50 m
User & Safety Instructions
User & Safety Instructions 1732097 Siemens 6XV18015DH15 Current Cable Grey 1.50 m
Description
SOFTWARE ON CD: DRIVE ES PCS7 V7.1 SP2 FUNCTION BLOCK LIBRARY TO LINK DRIVES IN THE PROCESS CONTROL SYSTEM PCS7 5-LANGUAGE CD WITH ELECTR. DOCUMENTATION UPGR. V6.X/V7.X V7.1 SP2 TO EXISTING SINGLE LICENSE DRIVE ES PCS7 V6.X/V7.X REQUIRES SIMATIC PCS7 V7.1
