Siemens 6XV18303EH10 1 pc(s)
EAN:
Part number:
Item no:
Features
Suitable for drag chains
Type
6XV1830-3EH10
Contact material
Copper
Manufacturer part #
6XV18303EH10
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Only 2 Set(s) available
Technical specifications
- Type
6XV1830-3EH10
- Contact material
Copper
- Features
Suitable for drag chains
- Manufacturer part #
6XV18303EH10
- Content
1 pc(s)
- RoHS-compliant
Yes
Other
Colour
No
Pairs
Other
Other
0.67 mm
None
Foil + braiding
Polyurethane (PUR)
-40-60 °C
-40-60 °C
1
2
FALSE
Bundle
8 mm
FALSE
Bare
Eca
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2875969 Siemens 6XV18303EH10 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2875969 Siemens 6XV18303EH10 1 pc(s)
Description

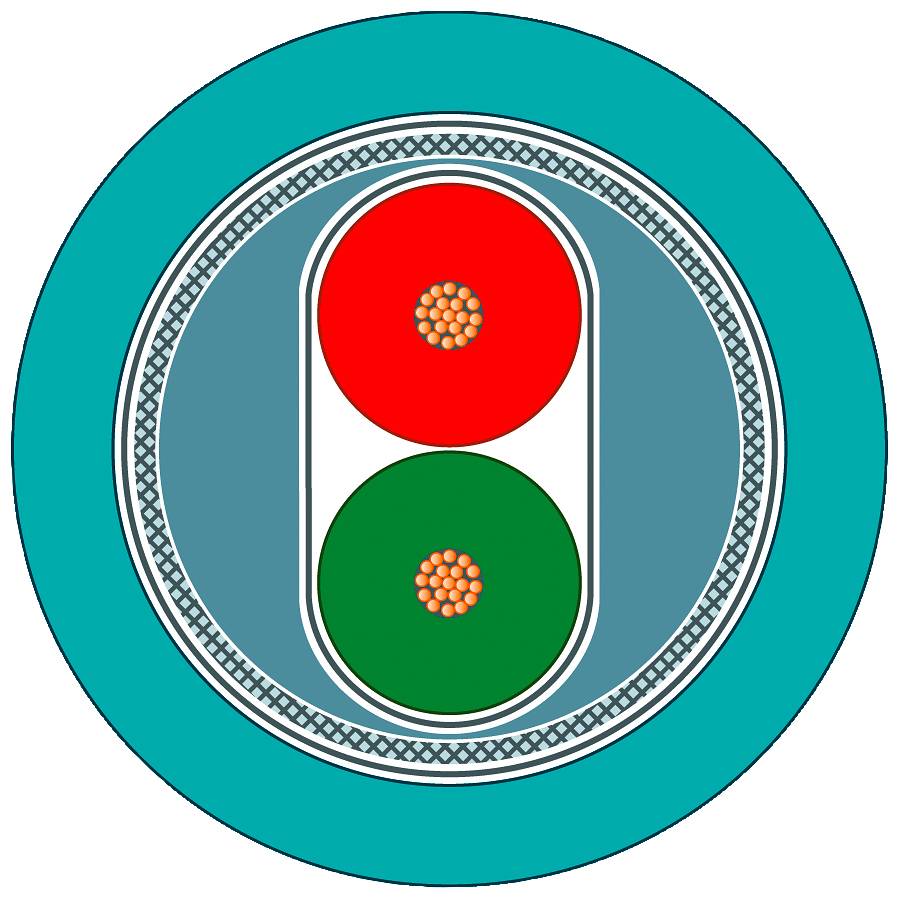

PROFIBUS FC Trailing Cable, PROFIBUS trailing cable, max. Acceleration 4 m/QS min. 3 million bending cycles min. Bending radius approx. 120 mm 2-wire shielded, sold by the meter delivery unit max. 1000 m minimum order quantity 20 m. Highly flexible bus cable specially designed for fast installation, for use in continuous motion in a trailing cable.Time is saved thanks to easy and quick on-site installation. Reliable shield contact and strain relief as well as efficient EMC shielding. Network is not sensitive to interferences due to shielded, twisted-pair cable. System-wide grounding concept can be implemented using the external shield of the bus cable and the grounding terminals on the bus terminal. Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines). Easy length measurement thanks to printed meter marking.
