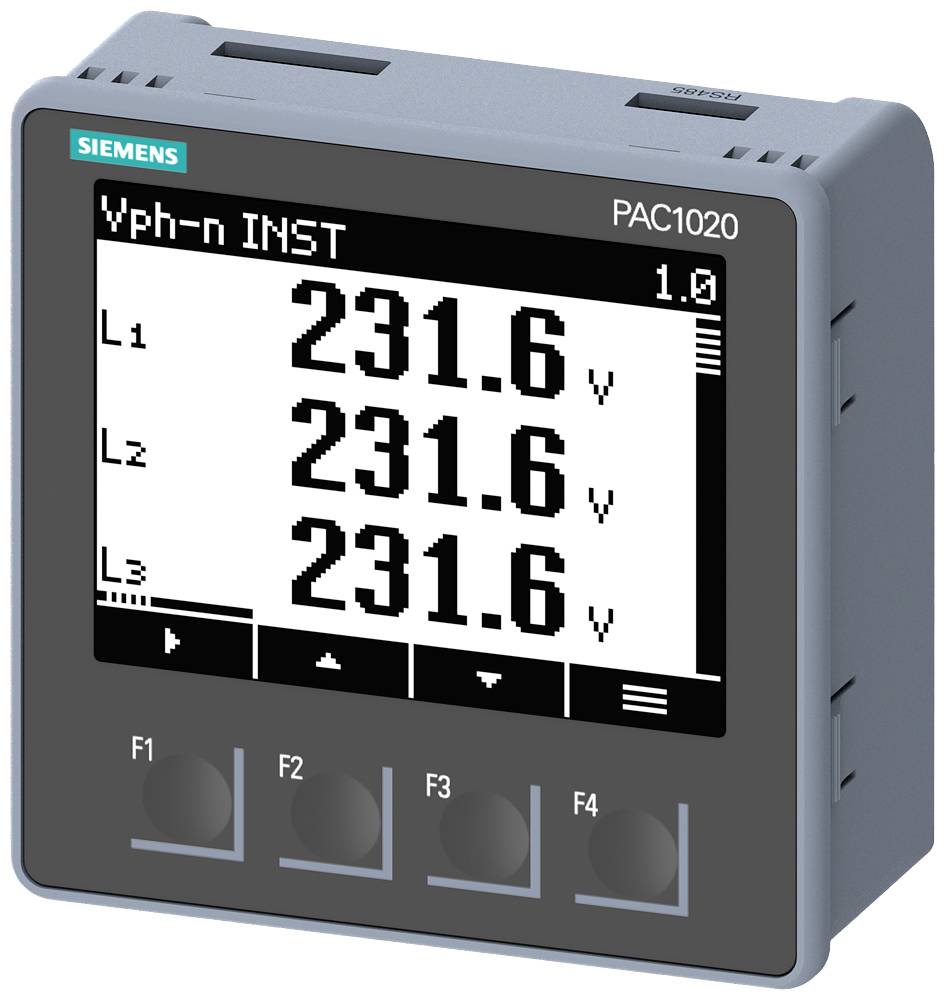

Siemens 7KM1020-0BA01-1DA0
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Reading type
AC voltage
AC current
Active power
Reactive power
Frequency
- Type
7KM1020-0BA01-1DA0
- Display technology
LCD
IP40

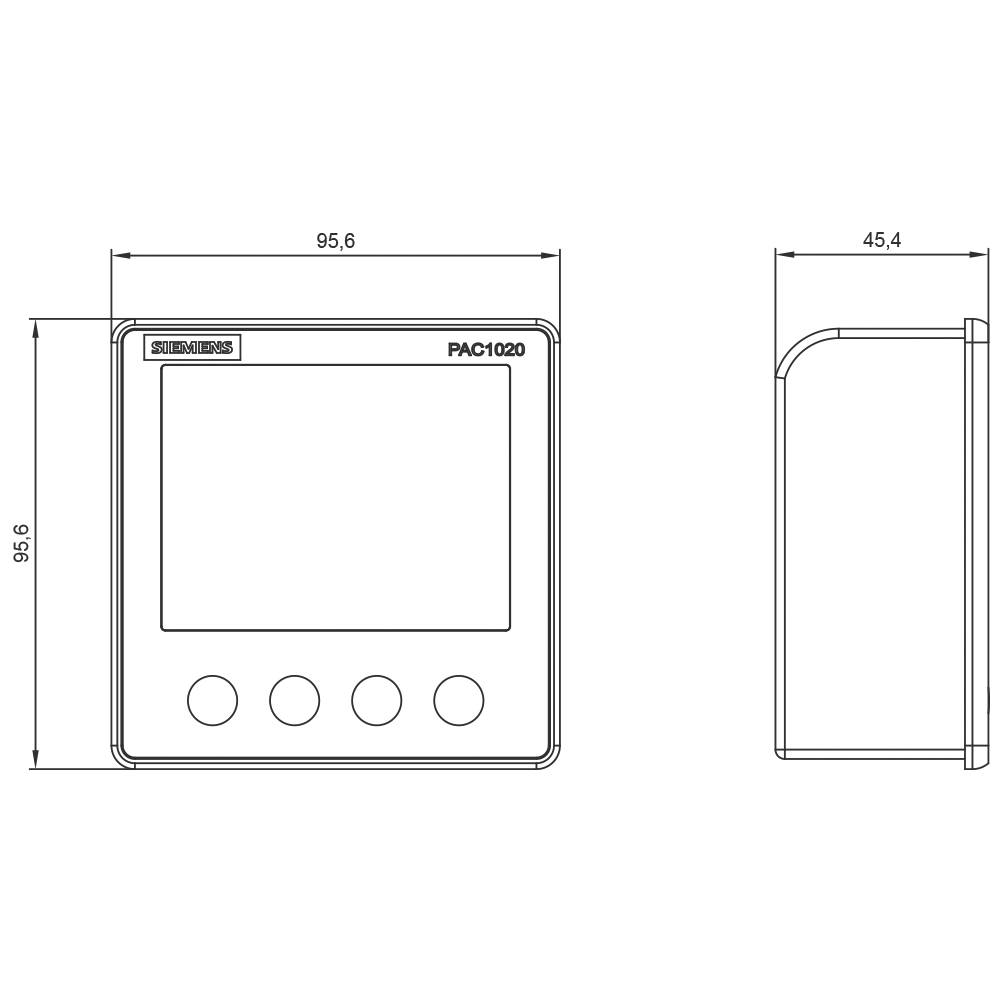

- Recess width
96 mm
- Recess height
96 mm
- Dim
(L x W x H) 42 x 96 x 96 mm
- Weight
1680 g
- Max. operating voltage
250 V DC/AC
- Min. operating voltage
100 V DC/AC
- Recess depth
42 mm
- Factory colour
Black
- Width
96 mm
- Height
96 mm
- Length
42 mm
- Interfaces
1x Ethernet
- Interfaces
Modbus RTU
96
96 mm
42 mm
1
1
0
0
0
TRUE
TRUE
FALSE
TRUE
FALSE
TRUE
TRUE
3
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2879374 Siemens 7KM1020-0BA01-1DA0
User & Safety Instructions
User & Safety Instructions 2879374 Siemens 7KM1020-0BA01-1DA0
