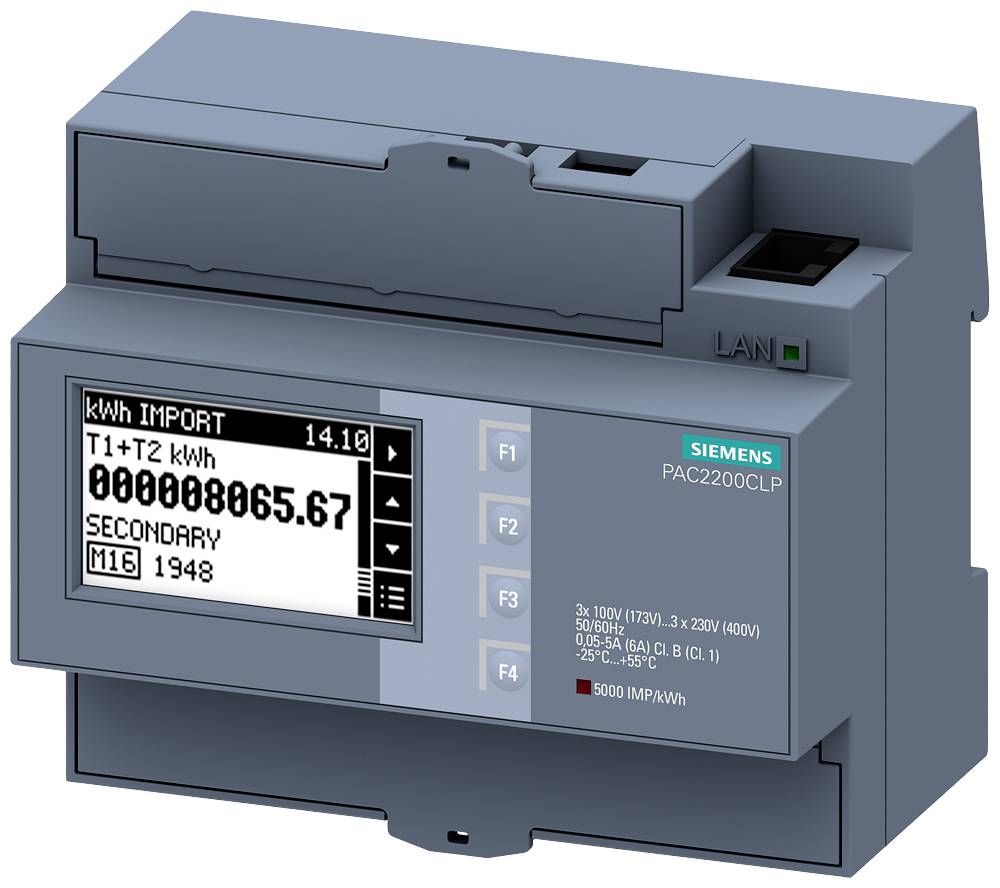

Siemens 7KM2200-2EA00-1JB1 Energy consumption meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Siemens 7KM2200-2EA00-1JB1 Energy consumption meter
- Siemens
Technical specifications
- SENTRON measuring device 7KM PAC2200 CLP L-L:400V, L-N:230V, x/1A & x/5A DIN rail device, 6TE, 3-phase LAN interface, ModbusTCP LCDisplay, MID approval screw connection, self-supplied apparent/active/reactive energy certified load profile memory measuring and calibration according to PTB-A50.7
- Product type
Energy consumption meter
- Type
7KM2200-2EA00-1JB1
IP40
- Weight
310
- MID-approved
No

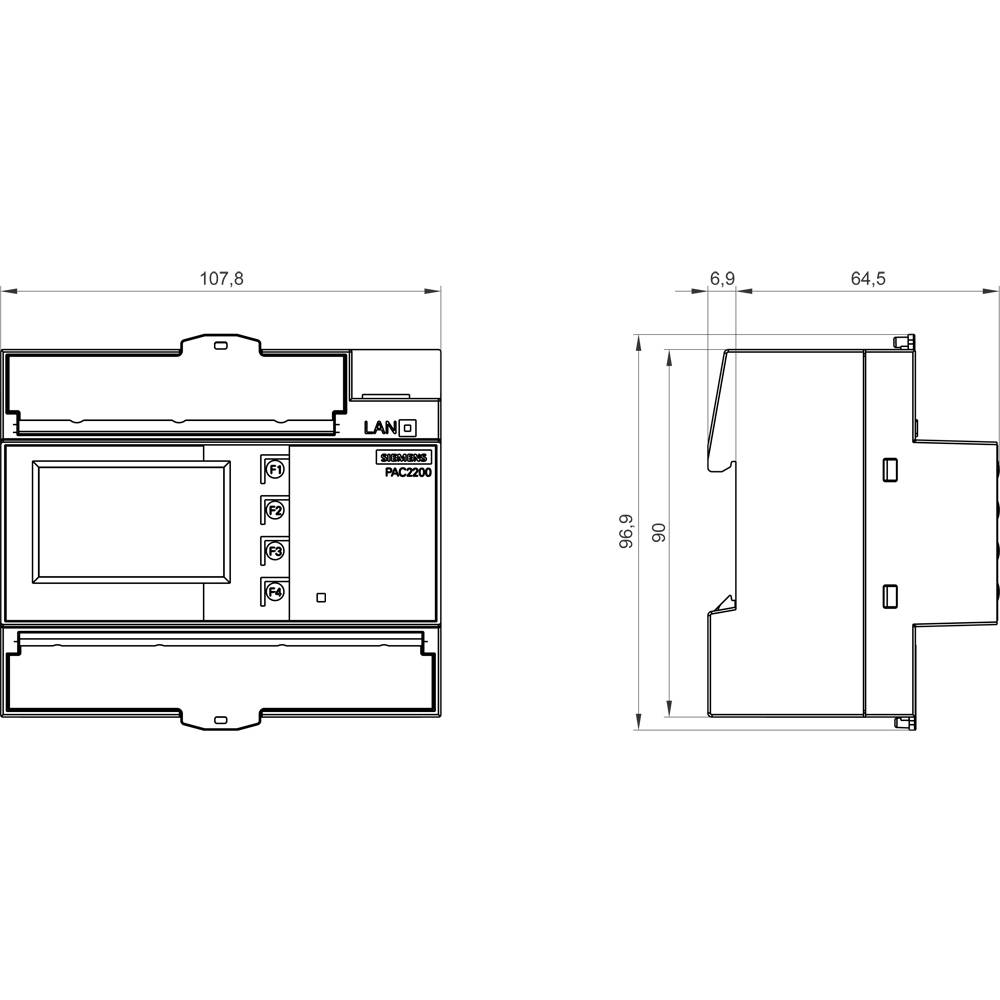

- Dim
(L x W x H) 71 x 108 x 97 mm
- Height
97 mm
- Length
71 mm
- Width
108 mm
Measurement transformer
Purchase/supply
Digital
100 A
6
12
Electronic
IP40
Effecive and reactive power
Two-tariff
Electrical
S0
Three conductor/four conductor
5 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2315630 Siemens 7KM2200-2EA00-1JB1 Energy consumption meter
User & Safety Instructions
User & Safety Instructions 2315630 Siemens 7KM2200-2EA00-1JB1 Energy consumption meter
Description
SENTRON 7KM PAC2200 CLP L-L:400V meter, L-N:230V, x/1A & x/5A DIN rail device, 6TE, 3-phase LAN interface, Modbus TCP LC display, MID approval screw connection, Self-powered Apparent/active/reactive energy certified load profile memory meas- and calibrated in accordance with PTB-A50.7
