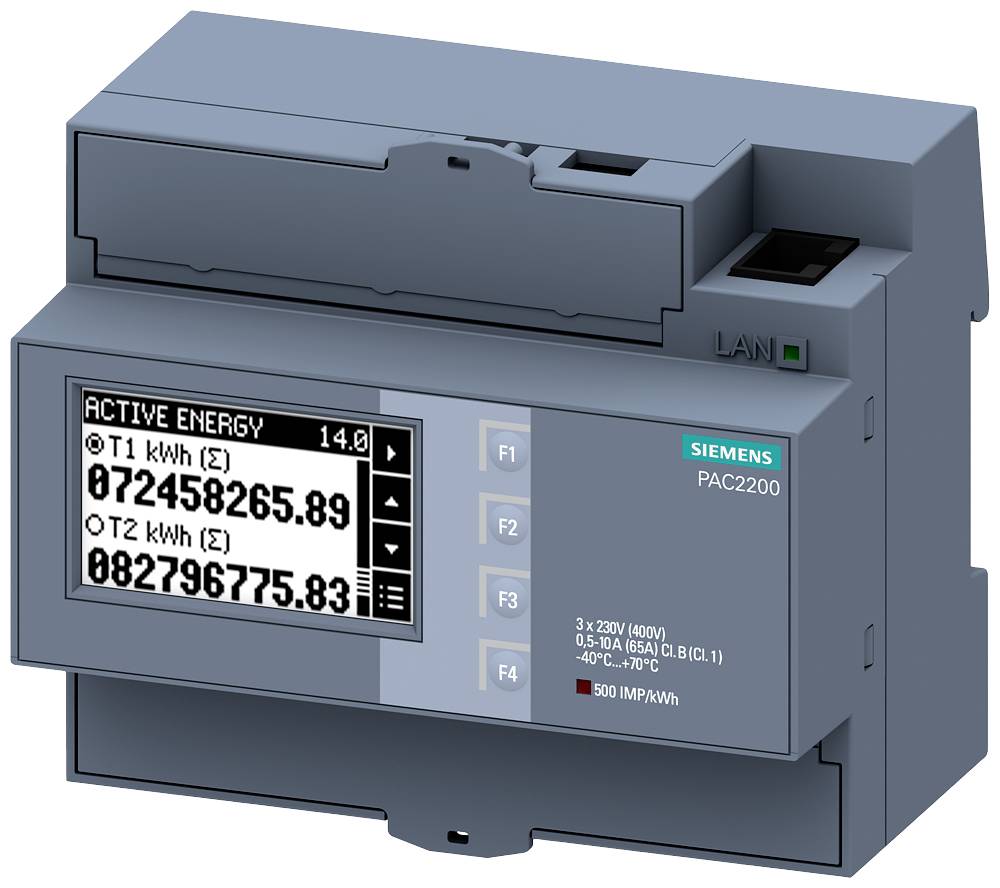

Siemens 7KM2200-2EA40-1EA1 Digital rack-mount meter
EAN:
Part number:
Item no:
Number
Total (€ 242.86 / piece)
€ 242.86
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Product type
Digital rack-mount meter
- Reading type
Energy consumption
- Type
7KM2200-2EA40-1EA1
- Reading range (max.)
65 A
- Display technology
LCD
- Operating voltage
400 V
- Dim
(W x H) 136.0000 mm x 123.0000 mm
- Weight
0.5280
- Factory colour
Multicolour
- Width
136.0000 mm
- Height
123.0000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2798215 Siemens 7KM2200-2EA40-1EA1 Digital rack-mount meter
Description
SENTRON, MEASURING DEVICE, 7KM PAC2200, LCD, L-L: 400 V, L-N: 230 V, 65 A, top hat rail device, 3-phase, Modbus TCP, Apparent / active / reactive power, self-supplied, screw connection Energy meter SENTRON 7KM PAC2200 for measuring energy consumption in one and three-phase networks, e.g. in industrial plants, purpose built, offices and apartments in multi-family houses.
The 7KM PAC 2200 energy meters with extended range of functions accurately, reproducible and reliable capture the energy values for the feed, electrical outlets or individual consumers via converter or direct measurement up to 65 A. They not only provide comprehensive information on your electrical installation and energy distribution, but also important measurement values for assessing the status of the plant. Thanks to their wide range of communication options, the devices can be easily integrated into higher-level automation and energy management systems via Modbus TCP, PROFINET, Modbus RTU and M-Bus for further processing of the measurement data.
The 7KM PAC measuring instruments are available in various versions, suitable for the scope of their requirements.
SENTRON PAC - specialists in measuring data acquisition
This text is machine translated.
The 7KM PAC 2200 energy meters with extended range of functions accurately, reproducible and reliable capture the energy values for the feed, electrical outlets or individual consumers via converter or direct measurement up to 65 A. They not only provide comprehensive information on your electrical installation and energy distribution, but also important measurement values for assessing the status of the plant. Thanks to their wide range of communication options, the devices can be easily integrated into higher-level automation and energy management systems via Modbus TCP, PROFINET, Modbus RTU and M-Bus for further processing of the measurement data.
The 7KM PAC measuring instruments are available in various versions, suitable for the scope of their requirements.
SENTRON PAC - specialists in measuring data acquisition
This text is machine translated.
