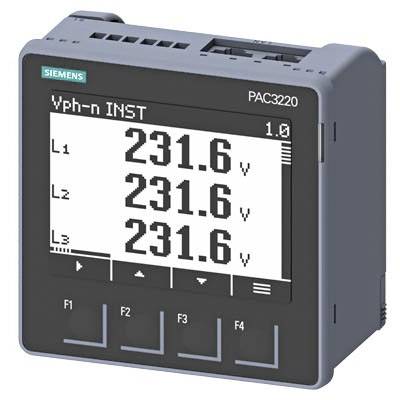

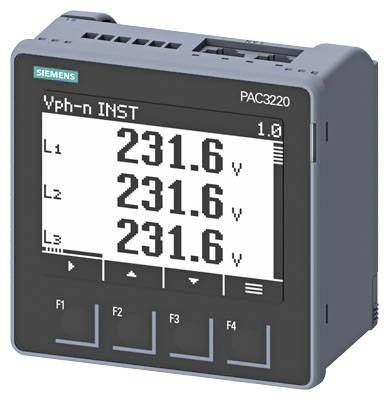

Siemens 7KM3220-0BA01-1DA0
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Multifunctional measuring apparatus
- Assembly dimensions 92 mm x 92 mm
Technical specifications
- 3-phase; Accuracy class Active energy: Class 0.2S; Power frequency: 45/65 Hz; Local language / display / supported: De, en, fr, spa, ita, por, tur, rus, chi, pol
- Reading type
Power
- Reading range (min.)
400 V
- Type
7KM3220-0BA01-1DA0
- Reading range (max.)
690 V
- Display technology
LCD
IP65 (front)
IP20
- Recess width
92
- Recess height
92 mm
- Operating voltage
250 V DC/AC

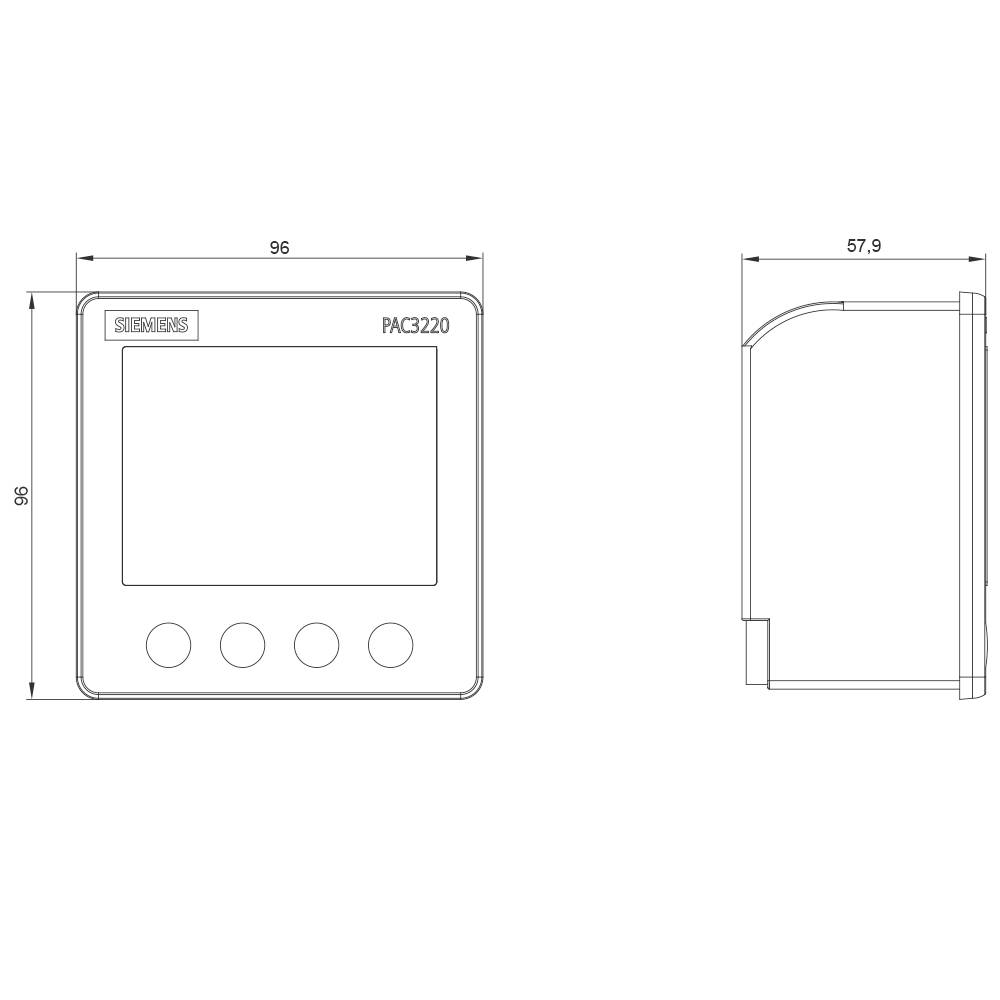

- Dim
(W x H x D) 96 x 96 x 56 mm
- Weight
325 g
- Max. operating voltage
240 V AC
340 V DC
- Min. operating voltage
95 V AC
110 V DC
- Display lighting
white
- Factory colour
Black
White
- Width
96 mm
- Height
96 mm
- Frame width
96 mm
- Interfaces
RJ45
- Interfaces
Screw terminal
- Depth
56 mm
- Connections
Screw terminals
- Display (details)
Point matrix, 130 x 100 pixels
- Assembly dimensions
92 mm x 92 mm
- Power supply (details)
95 - 240 V/AC, 110 - 340 A V DC
- Reading category
CAT III
96
96 mm
56 mm
2
2
0
0
0
TRUE
TRUE
FALSE
TRUE
TRUE
TRUE
TRUE
3
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2464216 Siemens 7KM3220-0BA01-1DA0
User & Safety Instructions
User & Safety Instructions 2464216 Siemens 7KM3220-0BA01-1DA0
Description
The device measures the power values of electronic feeders or individual consumers in the low voltage-power distribution. It can be used for single and multiphase networks (TN, TT, IT) and provides important data for assessment of the system status and power quality. Can be in incorporated into next level automation and power management systems.
