Buy Siemens 7KT1201 7KT1201 3-phase current transformer Primary current 100 A Secondary current 5 A Line feed-through diamet

'Siemens Current Transformer 3VT1 200', an electrical device for measurement and protection in switchgear networks. Shows connections and labelling.

Image similar

Circuit diagram of a Siemens contactor with three parallel circuits, marked with L1, L2, L3 and connections to terminals K/P1, L/P2, k.

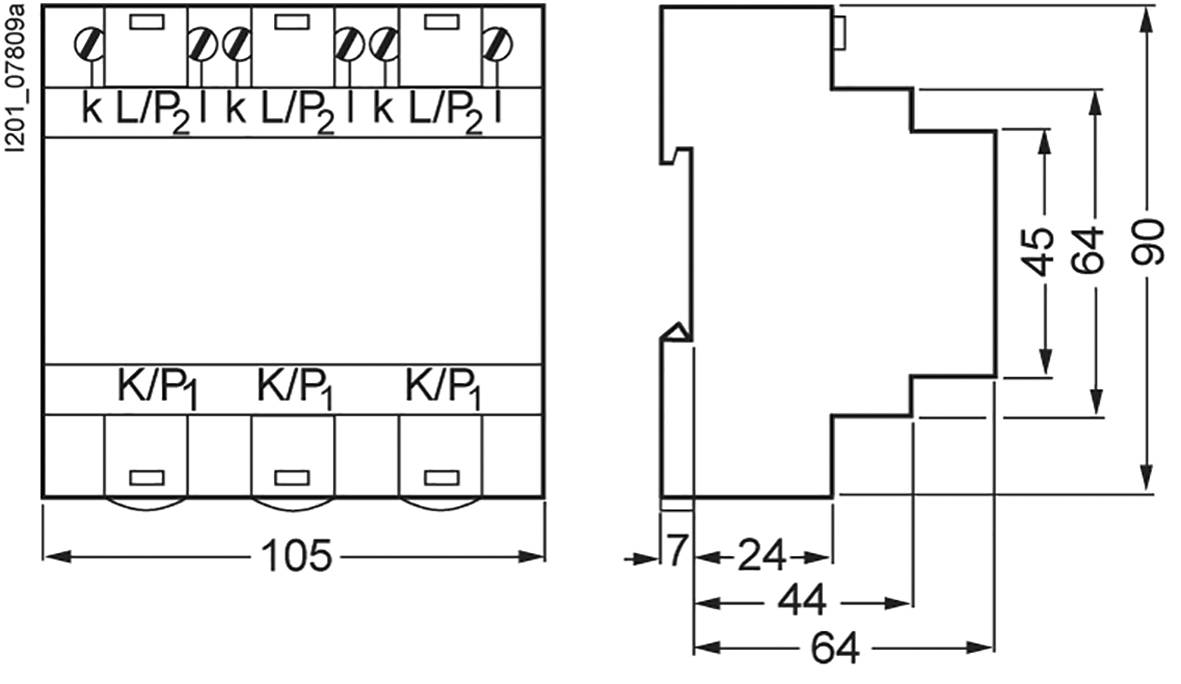

'Circuit diagram of an electrical component with dimensions: width 105 mm, height 90 mm. Details of connections K/P1 and L/P2 are marked.'

1/3

Image similar

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 117.64 / piece)

€ 117.64

plus VAT.

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

PROFIBUS PCF FO CABLE 300 M

Line feed-through diameter 13 mm

Technical specifications

Type of the current transformer: through-hole current transformer

Product type: 3-phase current transformer

Fitting type: Screw-fit

Primary current: 100 A

Secondary current: 5 A

: 2.5 VA

Line feed-through diameter: 13 mm

Accuracy class: 1

Type: 7KT1201

Dim: (L x W x H) 64 x 105 x 90 mm

Weight: 541 g

Factory colour: Grey

Width: 105 mm

Height: 90 mm

Length: 64 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1734387 Siemens 7KT1201 7KT1201 3-phase current transformer Primary current 100 A Secondary current 5 A Line feed-through diamet

User & Safety Instructions

User & Safety Instructions 1734387 Siemens 7KT1201 7KT1201 3-phase current transformer Primary current 100 A Secondary current 5 A Line feed-through diamet

Description

PROFIBUS PCF Fiber Optic, with 4 PCF BFOC connectors, Length 300 m
