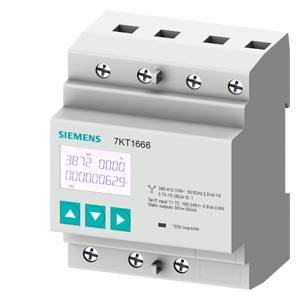

Siemens 7KT1666-0EE01-0EE0 Energy consumption meter MID calibration
EAN:
Part number:
Item no:
Highlights & Details
Siemens 7KT1666-0EE01-0EE0 Energy consumption meter
- Siemens
Technical specifications
- Product type
Energy consumption meter
- Type
7KT1666-0EE01-0EE0
- Energy meter features
MID calibration
- Reading type
Reactive power
Energy consumption
Apparent power
Active energy
- Nominal voltage range
400 V AC (max)
- Mains voltage (max.)
400 V AC
- Operating voltage
400
- Current range
80 A (max)
- Current (max.)
80 A
- Weight
210
- MID-approved
No
- Dim
(L x W x H) 63 x 71.6 x 90 mm
- Height
90 mm
- Length
63 mm
- Width
71.6 mm
- Factory colour
Multicolour
- Depth
55.0000 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190144 Siemens 7KT1666-0EE01-0EE0 Energy consumption meter MID calibration
Description
SENTRON, MEASURING DEVICE, 7KT PAC1600, LCD, L-L: 400 V, L-N: 230 V, 80 A, top hat rail device, 3-phase, Modbus RTU/ASCII + MID, apparent / active / reactive power, self-supplied, screw connection, power meter SENTRON 7KT PAC1600 for calibrated measurement of the energy consumption in one and three-phase networks, for example in industrial plants, purpose built, offices and apartments in apartment buildings, for billing purposes.
The energy measuring devices 7KT PAC1600, calibrated according to MID, collect precise, reproducible and reliable the energy values for the feed, electrical outlet or individual consumers via converter or direct measurement up to 80 A (3-phase) and up to 63 A (1-phase). They not only provide comprehensive information about your electrical installation and power distribution but also important measurement values for assessing the condition of your system. For further processing of the measurement data, the devices can be integrated very easily into higher-level automation and energy management systems via Modbus RTU, M-Bus or S0-interface thanks to their various communication options.
The 7KT PAC power meters are available in various versions, suitable for the scope of your requirements
SENTRON PAC - specialists in measuring data acquisition
This text is machine translated.
The energy measuring devices 7KT PAC1600, calibrated according to MID, collect precise, reproducible and reliable the energy values for the feed, electrical outlet or individual consumers via converter or direct measurement up to 80 A (3-phase) and up to 63 A (1-phase). They not only provide comprehensive information about your electrical installation and power distribution but also important measurement values for assessing the condition of your system. For further processing of the measurement data, the devices can be integrated very easily into higher-level automation and energy management systems via Modbus RTU, M-Bus or S0-interface thanks to their various communication options.
The 7KT PAC power meters are available in various versions, suitable for the scope of your requirements
SENTRON PAC - specialists in measuring data acquisition
This text is machine translated.
