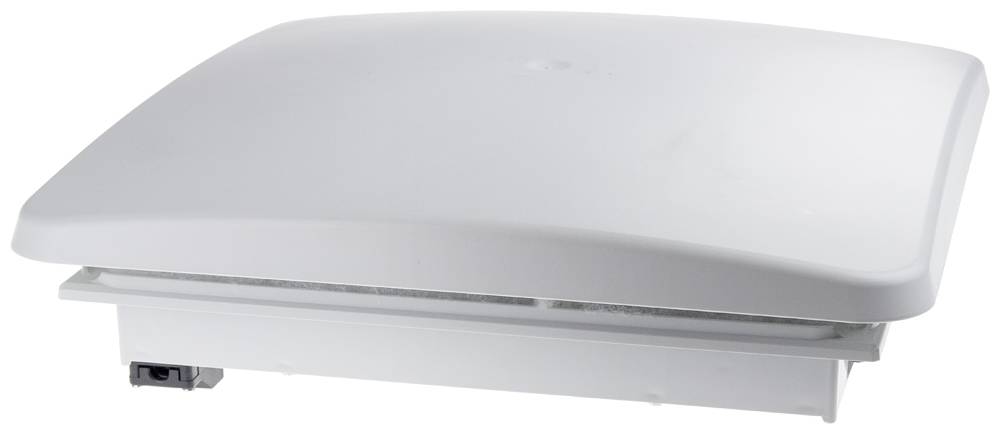

Siemens 8MR6402-5VL80 Top fan 24 V DC 105 W (W x H x D) 361 x 361 x 203 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Top fan
Operating voltage
24 V DC
Power
105 W
Rotational speed
2750 U/min
Noise emission (max.)
66 dB
Datasheet (PDF)
Number
Total (€ 578.99 / piece)
€ 578.99
plus VAT.
14-day return policy included
Highlights & Details
Roof-mounted fan, cutout: B: 292 mm, H: 292 mm, RAL 7035, IP54, air flow: 840 ...
Our service for you
Technical specifications
- Mounting type: Snap-on mounting
- Material: plastic
- Product type
Top fan
- Type
8MR6402-5VL80
- Operating voltage
24 V DC
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
105 W
- Rotational speed
2750 U/min
- Noise emission (max.)
66 dB
- Factory colour
Light grey
- Min. temperature
-10 °C
- Max. temperature
+55 °C
IP54
- Width
361 mm
- Height
361 mm
- Depth
203 mm
- Dim
(W x H x D) 361 x 361 x 203 mm
- Weight
4.979 kg
- Content
1 pc(s)
Snap mounting
Grey
361
361 mm
203 mm
7035
DC
1
IP54
FALSE
105 W
FALSE
FALSE
839.88 m³/h
FALSE
FALSE
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1748854 Siemens 8MR6402-5VL80 Top fan 24 V DC 105 W (W x H x D) 361 x 361 x 203 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1748854 Siemens 8MR6402-5VL80 Top fan 24 V DC 105 W (W x H x D) 361 x 361 x 203 mm 1 pc(s)
Description
Roof fan, Extract: W: 292 mm, H: 292 mm, RAL 7035, IP54, Airflow: 840 m3/h, Ue DC: 24 V SIVACON 8MF/8MR system air-conditioning - for air-conditioning in the cabinet. Meeting meet specific system air-conditioning requirements. SIVACON 8MR ensures the error-free operation of the electrical and electronic devices fitted in the cabinet even in adverse ambient conditions. It prevents condensation and frost damage, for example, and protects devices from the potential resulting malfunctions. The portfolio ranges from filter fans and cooling and heating units to thermostats. Alternatively, ventilated cabinets with which system air conditioning is ensured by natural convection can be used in equipment rooms. www.siemens.de/sivacon-8mf. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
