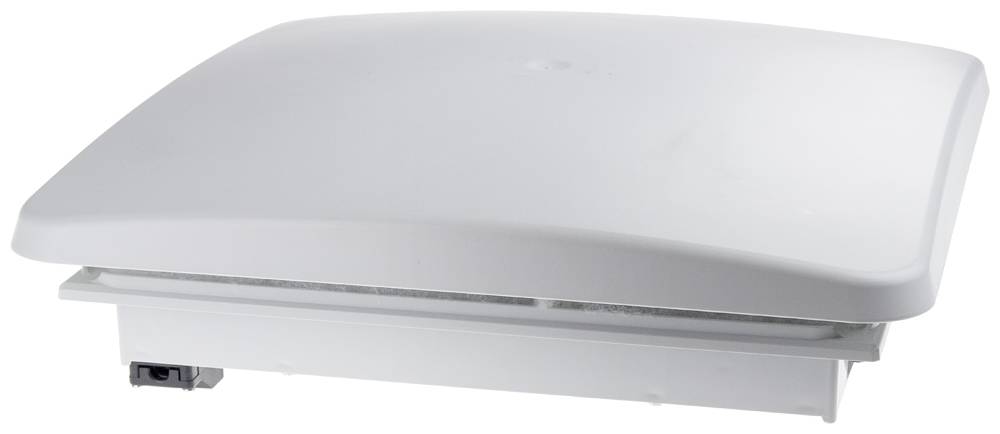

Siemens 8MR6411-5VL44 Top fan 115 V AC 48 W (W x H x D) 287 x 287 x 104 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Top fan
Operating voltage
115 V AC
Power
48 W
Rotational speed
3200 U/min
Noise emission (max.)
42 dB
Datasheet (PDF)
Number
Total (€ 247.90 / piece)
€ 247.90
plus VAT.
14-day return policy included
Highlights & Details
Roof-mounted fan, cutout: B: 223 mm, H: 223 mm, RAL 7035, IP54, air flow: 71 m3/h
Our service for you
Technical specifications
- Mounting type: Snap-on mounting
- Material: plastic
- Product type
Top fan
- Type
8MR6411-5VL44
- Operating voltage
115 V AC
- Max. operating voltage
115 V AC
- Operating voltage
115 V AC (max)
48 W
- Rotational speed
3200 U/min
- Noise emission (max.)
42 dB
- Factory colour
Light grey
- Min. temperature
-10 °C
- Max. temperature
+55 °C
IP54
- Width
287 mm
- Height
287 mm
- Depth
104 mm
- Dim
(W x H x D) 287 x 287 x 104 mm
- Weight
2.6 kg
- Content
1 pc(s)
Snap mounting
Grey
287
287 mm
104 mm
7035
AC
4
IP54
FALSE
48 W
FALSE
FALSE
70.92 m³/h
FALSE
FALSE
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1748864 Siemens 8MR6411-5VL44 Top fan 115 V AC 48 W (W x H x D) 287 x 287 x 104 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1748864 Siemens 8MR6411-5VL44 Top fan 115 V AC 48 W (W x H x D) 287 x 287 x 104 mm 1 pc(s)
Description
Roof fan, Extract: W: 223 mm, H: 223 mm, RAL 7035, IP54, Airflow: 71 m3/h, Ue AC: 115 V SIVACON 8MF/8MR system air-conditioning - for air-conditioning in the cabinet. Meeting meet specific system air-conditioning requirements. SIVACON 8MR ensures the error-free operation of the electrical and electronic devices fitted in the cabinet even in adverse ambient conditions. It prevents condensation and frost damage, for example, and protects devices from the potential resulting malfunctions. The portfolio ranges from filter fans and cooling and heating units to thermostats. Alternatively, ventilated cabinets with which system air conditioning is ensured by natural convection can be used in equipment rooms. www.siemens.de/sivacon-8mf. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
