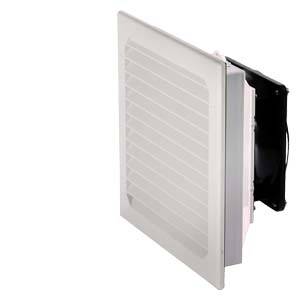

Siemens 8MR6511-5LV30 Fan and filter 115 V AC 20 W (W x H x D) 204 x 204 x 96 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fan and filter
Operating voltage
115 V AC
Power
20 W
Rotational speed
3100 U/min
Noise emission (max.)
51 dB
Datasheet (PDF)
Number
Total (€ 159.66 / piece)
€ 159.66
plus VAT.
14-day return policy included
Technical specifications
- Mounting type: Snap-on mounting
- Material: plastic
- Product type
Fan and filter
- Type
8MR6511-5LV30
- Operating voltage
115 V AC
- Max. operating voltage
115 V AC
- Operating voltage
115 V AC (max)
20 W
- Rotational speed
3100 U/min
- Noise emission (max.)
51 dB
- Factory colour
Light grey
- Min. temperature
-10 °C
- Max. temperature
+55 °C
IP55
- Width
204 mm
- Height
204 mm
- Depth
96 mm
- Dim
(W x H x D) 204 x 204 x 96 mm
- Weight
1.088 kg
- Content
1 pc(s)
Snap mounting
Grey
204
204 mm
96 mm
7035
AC
1
IP55
20 W
FALSE
105.12 m³/h
FALSE
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1748903 Siemens 8MR6511-5LV30 Fan and filter 115 V AC 20 W (W x H x D) 204 x 204 x 96 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1748903 Siemens 8MR6511-5LV30 Fan and filter 115 V AC 20 W (W x H x D) 204 x 204 x 96 mm 1 pc(s)
Description
Filter fan, Extract: W: 223 mm, H: 223 mm, RAL 7035, IP55, EMC, Airflow: 230 m3/h, Ue AC: 115 V SIVACON 8MF/8MR system air-conditioning - for air-conditioning in the cabinet. Meeting meet specific system air-conditioning requirements. SIVACON 8MR ensures the error-free operation of the electrical and electronic devices fitted in the cabinet even in adverse ambient conditions. It prevents condensation and frost damage, for example, and protects devices from the potential resulting malfunctions. The portfolio ranges from filter fans and cooling and heating units to thermostats. Alternatively, ventilated cabinets with which system air conditioning is ensured by natural convection can be used in equipment rooms. www.siemens.de/sivacon-8mf. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
