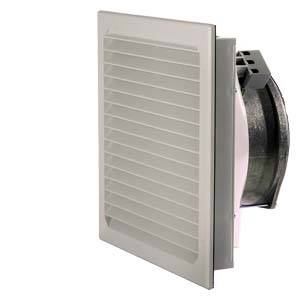

Siemens 8MR6511-5LV41 Fan and filter 115 V AC 43 W (W x H x D) 250 x 250 x 126 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fan and filter
Operating voltage
115 V AC
Power
43 W
Rotational speed
3030 U/min
Noise emission (max.)
52 dB
Datasheet (PDF)
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
Highlights & Details
Filter fan, cutout: B: 223 mm, H: 223 mm, RAL 7035, IP55, EMC, ...
Our service for you
Technical specifications
- Mounting type: Snap-on mounting
- Material: plastic
- Product type
Fan and filter
- Type
8MR6511-5LV41
- Operating voltage
115 V AC
- Max. operating voltage
115 V AC
- Operating voltage
115 V AC (max)
43 W
- Rotational speed
3030 U/min
- Noise emission (max.)
52 dB
- Factory colour
Light grey
- Min. temperature
-10 °C
- Max. temperature
+55 °C
IP55
- Width
250 mm
- Height
250 mm
- Depth
126 mm
- Dim
(W x H x D) 250 x 250 x 126 mm
- Weight
1.919 kg
- Content
1 pc(s)
Snap mounting
Grey
250
250 mm
126 mm
7035
AC
1
IP55
43 W
FALSE
230.04 m³/h
FALSE
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1748904 Siemens 8MR6511-5LV41 Fan and filter 115 V AC 43 W (W x H x D) 250 x 250 x 126 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1748904 Siemens 8MR6511-5LV41 Fan and filter 115 V AC 43 W (W x H x D) 250 x 250 x 126 mm 1 pc(s)
Description
Filter fan, Extract: W: 223 mm, H: 223 mm, RAL 7035, IP55, EMC, Airflow: 147 m3/h, Ue AC: 115 V SIVACON 8MF/8MR system air-conditioning - for air-conditioning in the cabinet. Meeting meet specific system air-conditioning requirements. SIVACON 8MR ensures the error-free operation of the electrical and electronic devices fitted in the cabinet even in adverse ambient conditions. It prevents condensation and frost damage, for example, and protects devices from the potential resulting malfunctions. The portfolio ranges from filter fans and cooling and heating units to thermostats. Alternatively, ventilated cabinets with which system air conditioning is ensured by natural convection can be used in equipment rooms. www.siemens.de/sivacon-8mf. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
