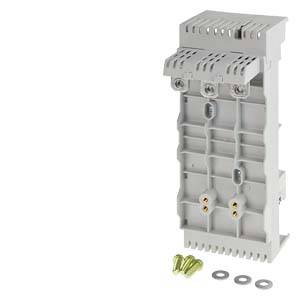

Siemens 8US12134AU01 Device adapter, busbar center-to-center spacing: 60 mm, In: 160 A, Un AC: 690 V, 600 V, ... Mount 1
EAN:
Part number:
Item no:
Product type
Mount
Nominal voltage
690 V
Dim

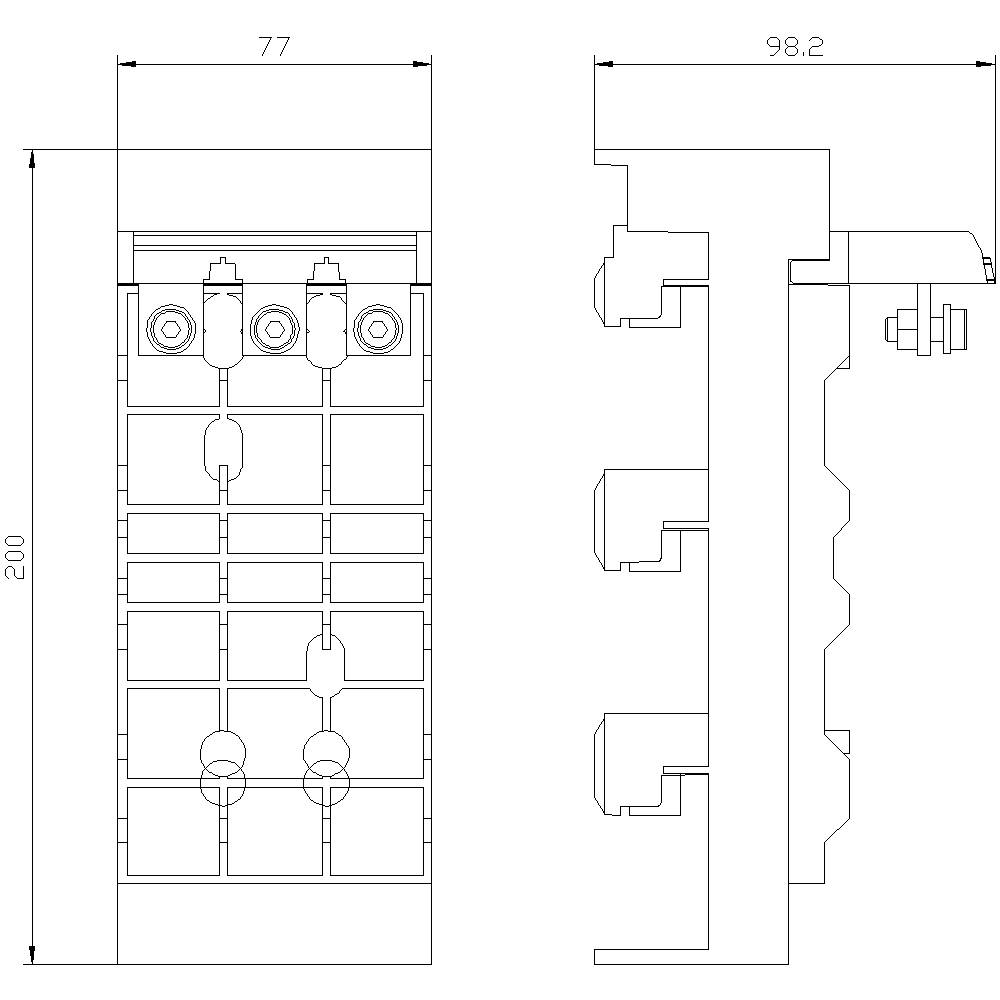

(L x W x H) 200 x 77 x 200 mm
Nominal current
160 A
Nominal current - rounded value
160 A
Datasheet (PDF)
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
14 days return policy included
Technical specifications
- Net weight: 569 g
- Nominal voltage
690 V
- Product type
Mount
- Dim
(L x W x H) 200 x 77 x 200 mm
- Nominal current
160 A
- Nominal current - rounded value
160 A
- Content
1 pc(s)
- Width
77 mm
- Height
200 mm
- Length
200 mm
60 mm
76 mm
5 mm
160 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1749626 Siemens 8US12134AU01 Device adapter, busbar center-to-center spacing: 60 mm, In: 160 A, Un AC: 690 V, 600 V, ... Mount 1
User & Safety Instructions
User & Safety Instructions 1749626 Siemens 8US12134AU01 Device adapter, busbar center-to-center spacing: 60 mm, In: 160 A, Un AC: 690 V, 600 V, ... Mount 1
Description
Device adapter MCCB, 3-pole, 160 A Busbar center-to-center spacing 60 mm for 3VA10/11, 200 x 77 mm Contacting to the adapter is included in supply
