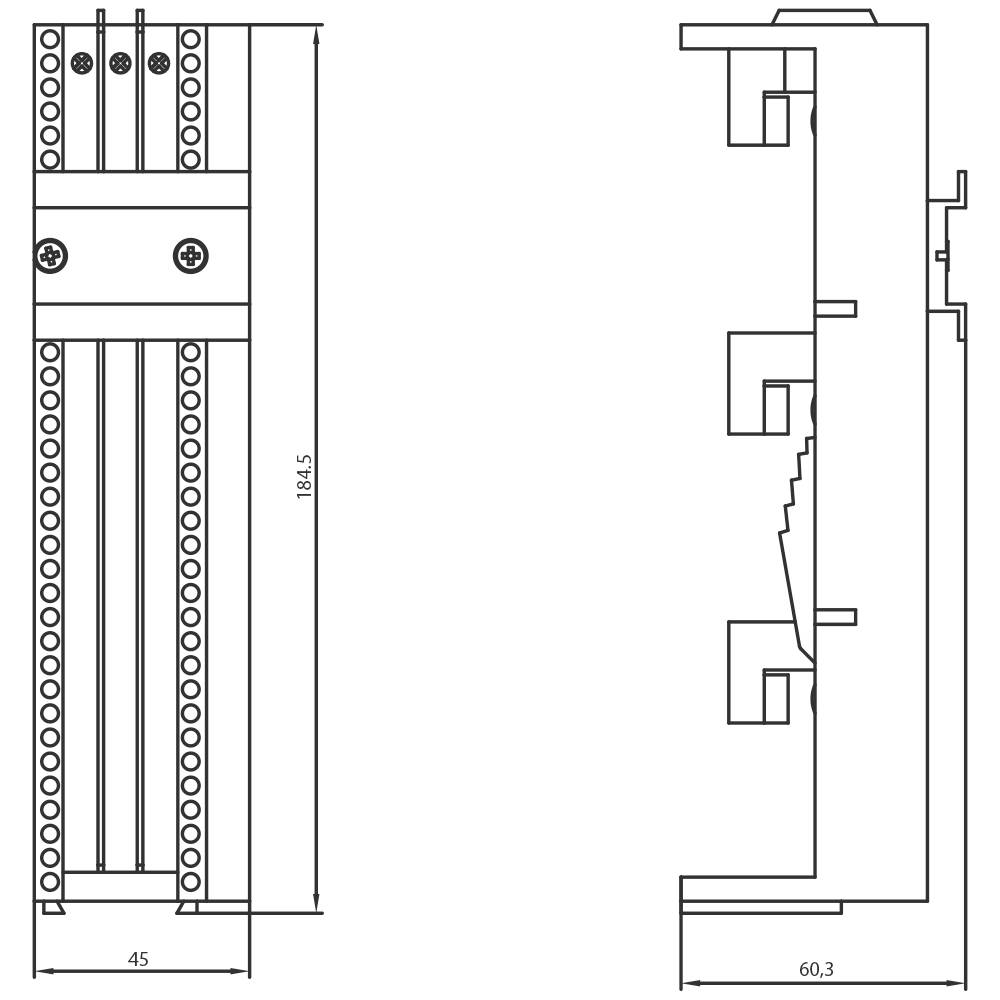

Siemens 8US12505RM07 Busbar system Rail distance 60 mm equipment adapter, width: 45 mm Mount 25 A 690 V 1 pc(s)

Busbar system Rail center distance 60mm Device adapter, width: 45mm Track thickness: 5.10mm+TT profile for any equipment with 1 mounting rail 35mm,...25A Output terminals top 1.5...4 mm2 Length 182mm busbar system 8US for the construction of protective devices such as fuse switch disconnectors and circuit breakers - safe, space-saving, clear. The use of the Siemens 8US busbar systems offers a wide range of options for installing rail-adaptable connection, switching and installation devices. Due to the space-saving modular design and quick mounting contacts, economical electrotechnical equipment is ensured in today's installation distribution building. The assembly takes place on longitudinal rails, the distance between the rails is 60 mm. The Siemens 8US busbar systems are characterized above all by: 1. Mechanical fastening and electrical contact in one operation. 2. Worldwide approval and thus worldwide application possibilities in machine and plant construction. 3. Simple replacement of individual devices or entire combinations. 4. Assembly time savings and cost reduction through fully assembled consumer branches. 5. High operational safety through finger-safe cover of the adapter and device carrier. 6. Wide range of busbars for easy adaptation to current strengths up to 1,600 A.
