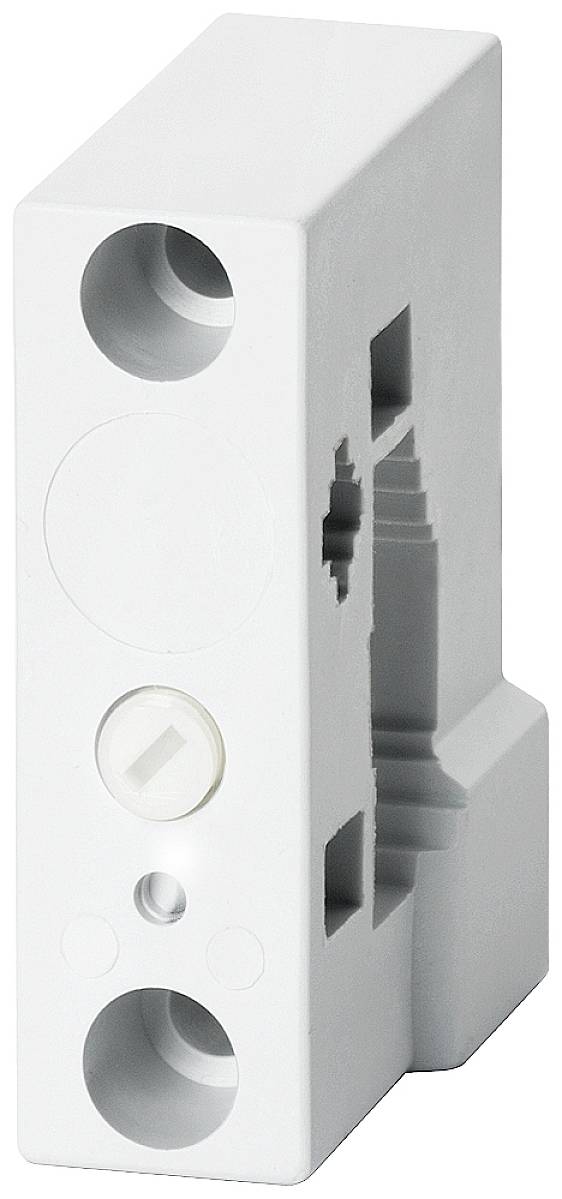

Siemens 8US1923-1AA01 Busbar mount 1 pc(s) Piece

Busbar system, accessories Rail center distance 60mm N/PE busbar holder for rails 12x 5 (10)-30x 5 (10) and 6x 6mm, free installation or mounting on 8US1923-2AA01 busbar system 8US for the construction of protective devices such as fuse disconnector and circuit breaker - safe, space-saving, clear. The use of the Siemens 8US busbar systems offers various options for the installation of rail-adapted connection, switching and installation devices. The space-saving modular design and rapid assembly contacting ensure economical electrical equipment in today's installation distribution system. The assembly takes place on longitudinal brace, the track distance is 60 mm. The Siemens 8US busbar systems are characterized above all by: 1. Mechanical mounting and electrical contact in one operation. 2. Worldwide approval and thus worldwide usage in machine and plant engineering. 3. Simple replacement of single devices or whole combinations. 4. Installation time saving and cost reduction by fully assembled branches. 5. High operational safety by finger-secure cover of the adapter and device carrier. 6. Wide range of busbars for a simple adjustment of current up to 1,600 A.
