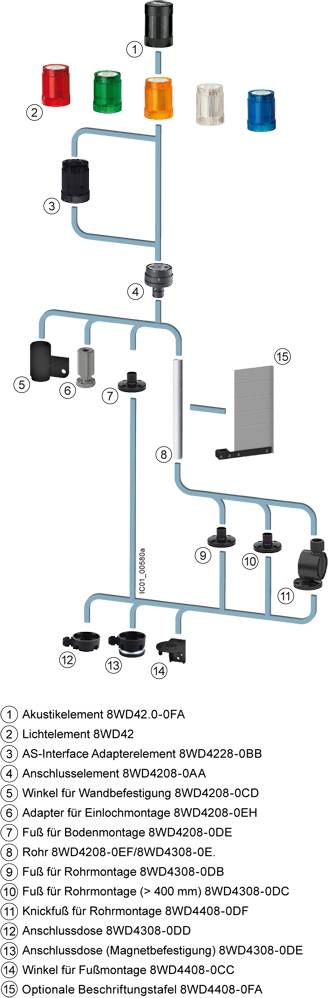

'Diagram of a Piping System with Numbered Components: Acoustic Element, Light Element, AS-Interface, Floor Mounting, Pipe Mounting.'

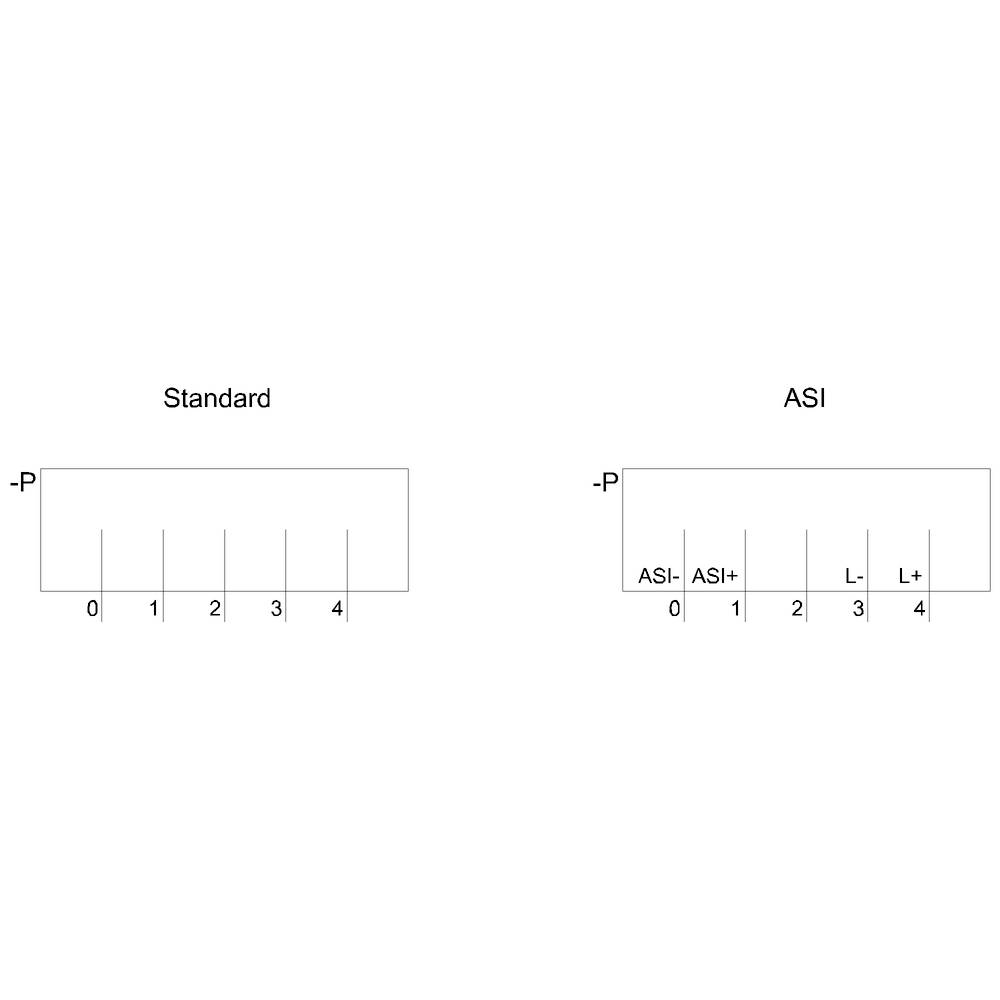

Diagram with two scales: On the left "Standard" with markings from 0 to 4; on the right "ASI" with markings of -ASI and +ASI at 0, and L- to L+ from 1 to 4.

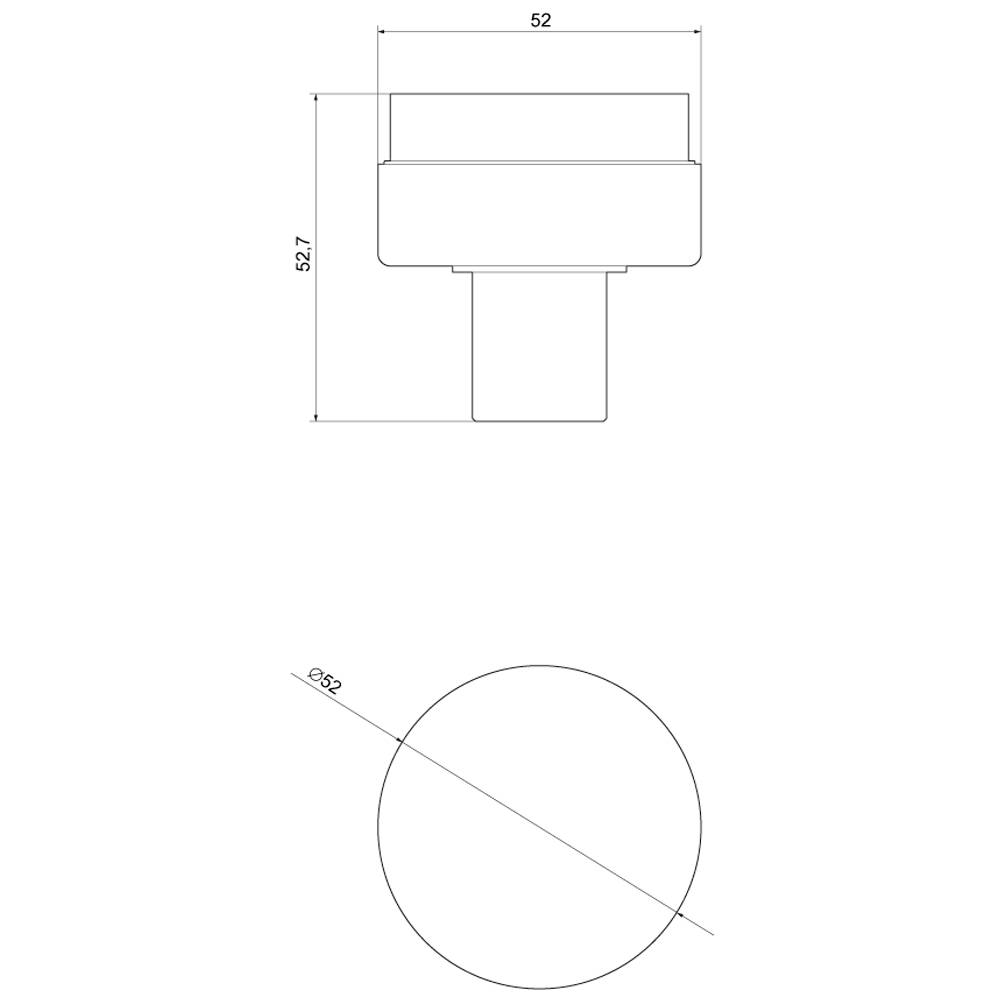

Technical drawing of a cylindrical part with a diameter of 52 mm and a height of 52 mm. Top view and side view.

1/5

Image similar

Siemens

Datasheet (PDF)

Fast track dispatch on Tue, 29 Sep

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 43.69 / piece)

€ 43.69

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Design of the product: For pipe, floor and angle mounting
Ambient temperature: -20 °C to +50 °C
Electrical connection type: Screw connection

Product type: Alarm sounder terminal

Dim: (Ø x H) 50 mm x 58 mm

(Ø): 50 mm

Height: 58 mm

Width: 52 mm

Type: 8WD4208-0AA

Type: Pipe mounting

Factory colour: Black

: IP54

Material: PA

Max. temperature: +50 °C

Min. temperature: -20 °C

Weight: 91 g

: Black

: Screw connection

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1748920 Siemens 8WD4208-0AA Alarm sounder terminal

User & Safety Instructions

User & Safety Instructions 1748920 Siemens 8WD4208-0AA Alarm sounder terminal

Description

SIGNAL COLUMNS, DIAMETER 70MM SINGLE ELEMENTS, THERMOPLAST IP54 SCREW CAP BA 15D, WITHOUT LAMP STEADY BURNING LIGHT, YELLOW
