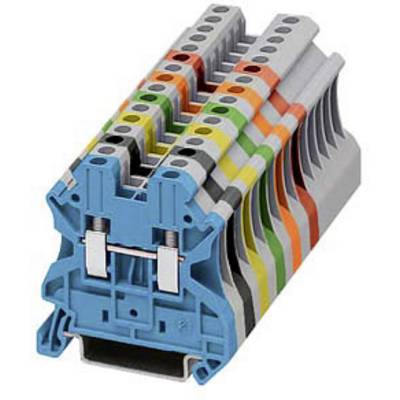

Image similar
Image similar
Siemens 8WH10000AG08 Serial terminal 4 mm Screws Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
50
-
€ 2.51
150
7% = € 0.18
€ 2.33
250
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 50
Total (€ 2.51 / piece)
€ 125.50
plus VAT.
Highlights & Details
Terminal block, 4 mm2 black screw mounting 2 connections black
- 8WH1000-0AG08
Our service for you
Technical specifications
- Type of mounting: top-hat rail 35 mm
- Material of the insulating body: thermoplastic
- Ambient temperature: -25 °C to +55 °C
- Number of clamping levels: 1
- Packaging type
Piece
- Product type
Serial terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
4 mm
- Factory colour
Black
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
1000 V
- Stripping length (max.)
9 mm
- Manufacturer part #
8WH10000AG08
- Content
1 pc(s)
- Type
8WH1000-0AG08
- Height
47.5 mm
- Length
47.7 mm
- RoHS-compliant
Yes
- Weight
9.5 g
- Connector colour
Black
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Black
48 mm
46.9 mm
1000 V
47.7 m
V0
4 mm
47.5 mm
TRUE
Screw connection
Screw connection
1
2
FALSE
Other
32 A
FALSE
Documents & Downloads
Datasheet
Datasheet 1699714 Siemens 8WH10000AG08 Serial terminal 4 mm Screws Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1699714 Siemens 8WH10000AG08 Serial terminal 4 mm Screws Black 1 pc(s) Piece
Description
Terminal block, 4 mm2 black Screw mounting 2 connections Black
