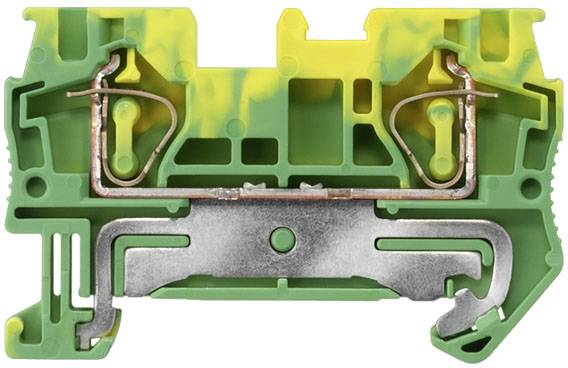

Siemens 8WH20000CG07 PG terminal 6.2 mm Spring-loaded connector Green-yellow 50 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Spring-loaded connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
Protective conductor terminals with tension spring connection, cross-section: 0.5-4mm2, width: 6.2.
- 8WH2000-0CG07
Our service for you
Technical specifications
- Connectable conductor cross-section / fine wire / with wire-end processing / maximum: 4 mm²
- connectable conductor cross-section / fine wire / with wire-end processing / minimum: 0.2 mm²
- connectable conductor cross-section / multi-wire / maximum: 6 mm²
- connectable conductor cross-section / multi-wire / minimum: 0.5 mm²
- number of terminal points / per terminal level: 2
- type of mounting: DIN rail 35 mm
- flammability class in accordance with UL 94: V0
- Height / with low-rise mounting type: 36.8 mm
- clamp pitch: 6.2 mm
- material / of the insulating body: Thermoplastic
- position / of the terminal clamp: Above
- Product component / required / end plate: no
- ambient temperature / during operation / maximum: 35 °C
- ambient temperature / during operation / minimum: -25 °C.
- Product type
PG terminal
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
4 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green-yellow
- Stripping length (max.)
10 mm
- Manufacturer part #
8WH20000CG07
- Content
50 pc(s)
- Type
8WH2000-0CG07
- Height
36.8 mm
- Length
56 mm
- RoHS-compliant
Yes
- Weight
12.7 g
- Flammability rating
V0
- Connector colour
Green-yellow
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Other
6.15
55.9 mm
35.25 mm
56 m
V0
6.2 mm
36.8 mm
FALSE
Spring clamp connection
Spring clamp connection
FALSE
1
2
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2264020 Siemens 8WH20000CG07 PG terminal 6.2 mm Spring-loaded connector Green-yellow 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2264020 Siemens 8WH20000CG07 PG terminal 6.2 mm Spring-loaded connector Green-yellow 50 pc(s)
Description
Protective conductor terminals with tension spring connection, cross-section: 0.5-4mm2, width: 6.2mm, color: Green-yellow terminal block connection technology for various industrial applications and modern building installation by Siemens. No matter whether you choose the screw, tension spring, push-in or quick connection: All connection methods can be combined freely with one another. The labeling and testing accessories are standardized and can be used across the board. Siemens terminal blocks can be used to implement many applications in industrial, industrial and residential buildings. Thus, you have the suitable connection technology for each connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and wires. 3. Implementation of a variety of applications. 4. Convenient and easy installation and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to standard touch protection. 7. Optimum technology for your safety - only from Siemens. www.siemens.de/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems, switches and sockets for the safe, efficient electrical infrastructure in buildings and industry.
