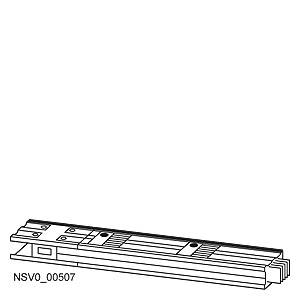

Siemens BVP:261480 BD2A-3-400-SB-3 Rail Box Aluminium Light grey 63 mm² 160 A 690 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rail Box
Nominal voltage
690 V AC
Compatible with (details)
Distribution system BD2
Operating voltage
690 V AC
Factory colour
Light grey
Datasheet (PDF)
1 Piece(s)
Sales and shipping:
Number
Total (€ 457.98 / piece)
€
Only 1 Piece(s) available
Technical specifications
- Protection class: IP52
- Insulation voltage 690 V/AC
- Mounting type: ceiling/wall
- Operating frequency: 50/60 Hz
- Surge current strength: 17 kA
- Nominal voltage
690 V AC
- Product type
Rail Box
- Compatible with (details)
Distribution system BD2
- Operating voltage
690 V AC
- Factory colour
Light grey
- Cross section
63 mm²
- Dim
(L x W x H) 325 x 167 x 68 mm
- Nominal current
160 A
- Nominal current - rounded value
160 A
- Type
Configuration of the power rails: L1, L2, L3, N
- Content
1 pc(s)
- Material
Aluminium
- Width
167 mm
- Height
68 mm
- Length
325 mm
- Mounting type
Surface-mount
3250 m
Documents & Downloads
Datasheet
Datasheet 1749894 Siemens BVP:261480 BD2A-3-400-SB-3 Rail Box Aluminium Light grey 63 mm² 160 A 690 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1749894 Siemens BVP:261480 BD2A-3-400-SB-3 Rail Box Aluminium Light grey 63 mm² 160 A 690 V AC 1 pc(s)
Description
BD2A-3-400-SB-3 STANDARD LENGTH 3,25M 400A, N + PE, 12 TAP OFFS
