Yellow Siemens plastic blanking plug cylinder, suitable as a closure or safety element for machines and equipment.

Image similar

Yellow Siemens plastic blanking plug cylinder, suitable as a closure or safety element for machines and equipment.

A yellow charging station with a green and red light indicates the charging status. In the background, a man is operating a device.

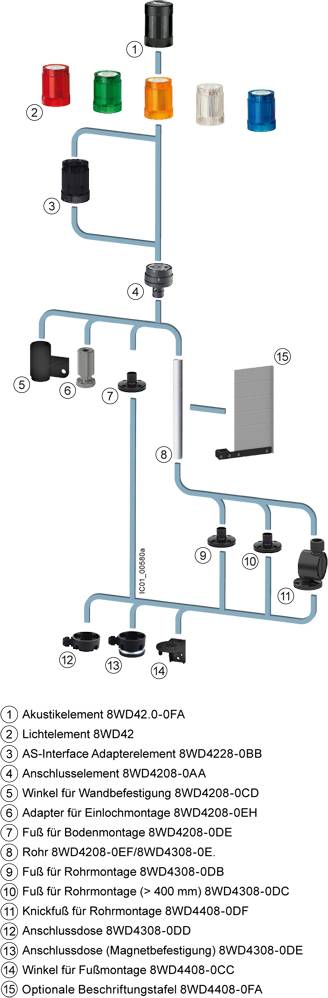

'Circuit diagram of an electronic system' with colour-coded elements such as lights, connectors, adapters, and wall mountings.

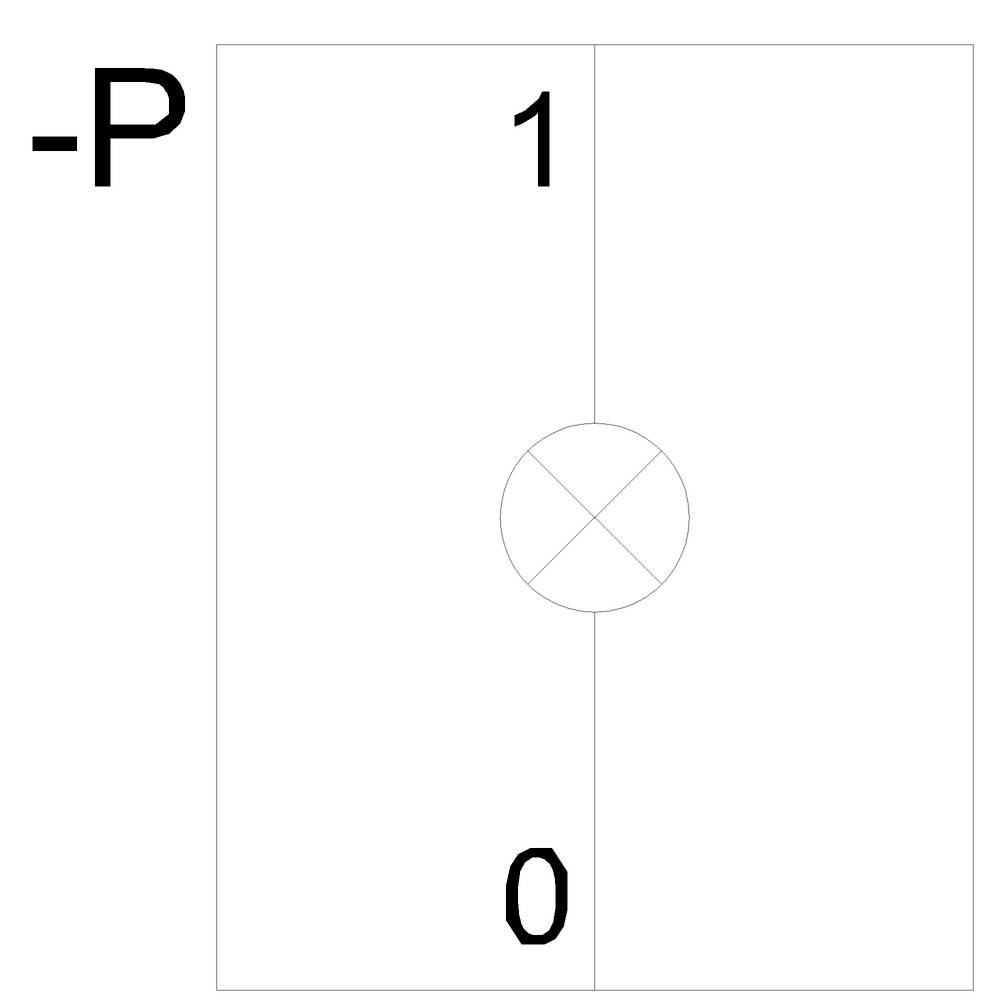

A diagram shows a crossed-out circular shape positioned in the centre of a vertical line. To the left is '-P', to the top right is '1', and to the bottom right is '0'.

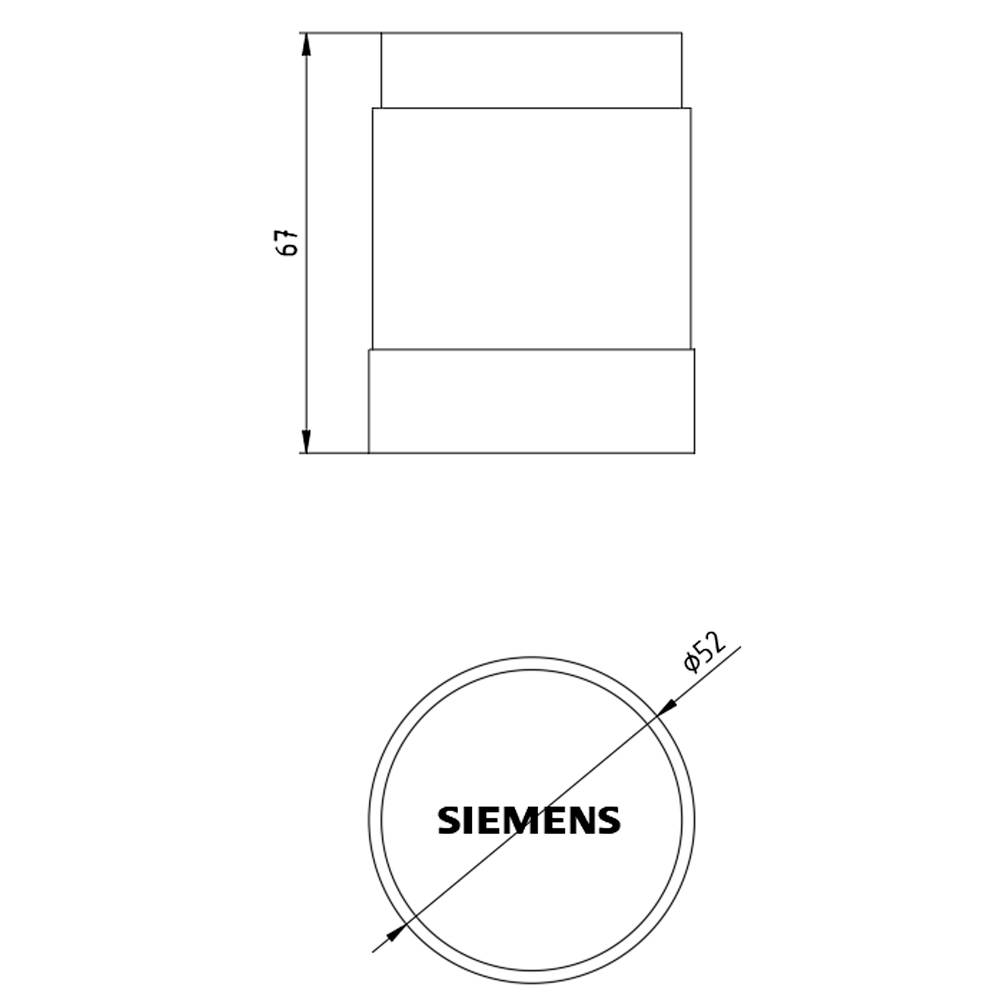

Technical drawing of a cylindrical component with dimensions height 67 mm and diameter 52 mm. Marking: 'SIEMENS'.

1/5

Image similar

Siemens

Datasheet (PDF)

Dispatches on Fri, 2 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.13 / piece)

€ 36.13

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Design of the product: Without bulbs
Ambient temperature: -20 °C to +60 °C
Type of bulb: Bulb/LED

Product type: Continuous light

Operating voltage: 12 V

Factory colour: Yellow

(Ø): 50 mm

Height: 67 mm

: IP54

Dim: (Ø x H) 50 mm x 67 mm

Width: 52 mm

Material: PC

Type: 8WD4200-1AD

Weight: 50 g

Type: Bayonet

Max. temperature: +60 °C

Min. temperature: -20 °C

: Yellow

: 50 mm

: Continuous light

: Other

: AC/DC

: Incandescent lamp/LED

: IP54

: 12-230 V

: 12-230 V

: 12-230 V

: Other

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1739117 Siemens Continuous light 8WD42001AD 8WD4200-1AD 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1739117 Siemens Continuous light 8WD42001AD 8WD4200-1AD 1 pc(s)

Description

pipe individually, length 100 mm, accessory for signaling columns, with diameters 50 mm and 70 mm
