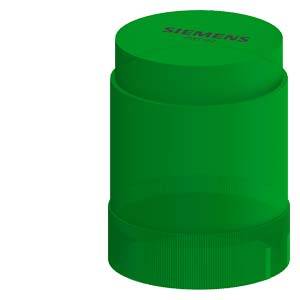

Buy Siemens Continuous light 8WD42505AC 8WD4250-5AC LED Green 1 pc(s)

Image similar

A man in workwear stands out of focus in the background, operating an electronic device. In the foreground, a signal lamp illuminates in red, yellow, and green.

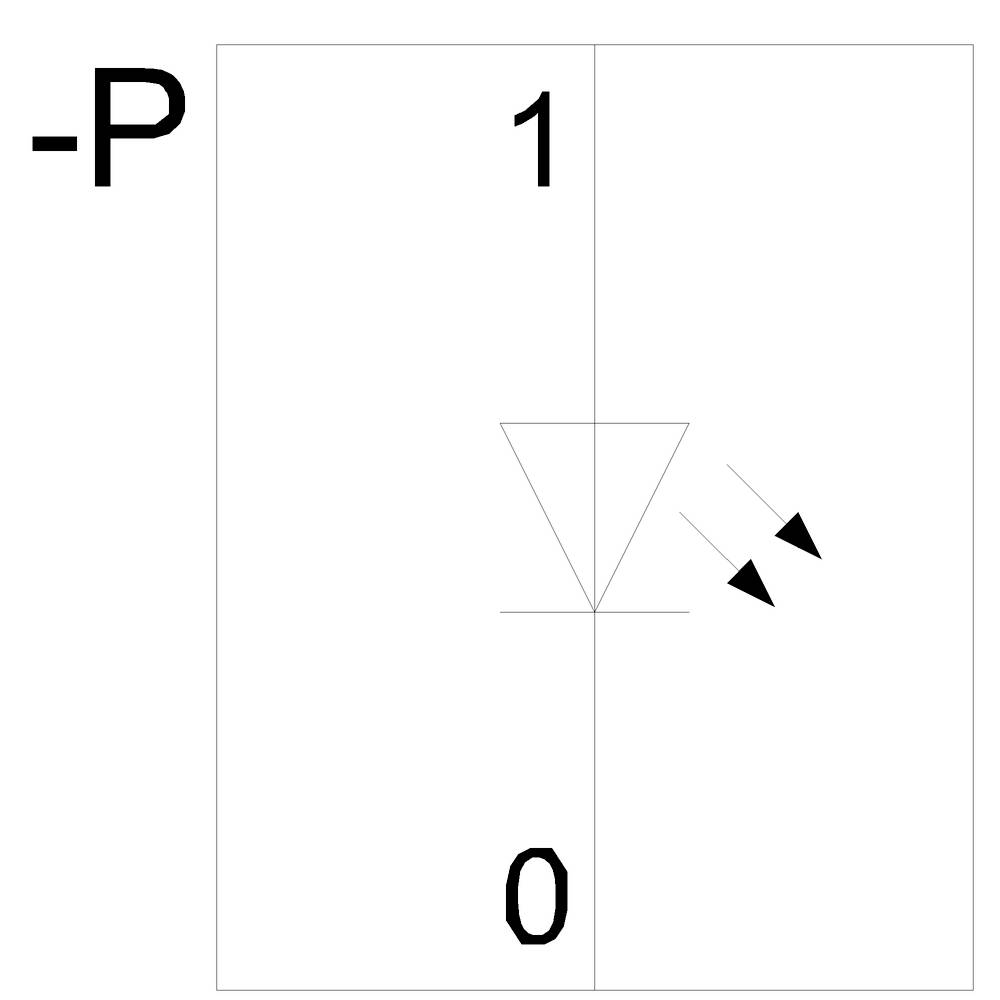

Diagram shows an inverted triangle with two arrows pointing towards the base, surrounded by "-P", "1", and "0".

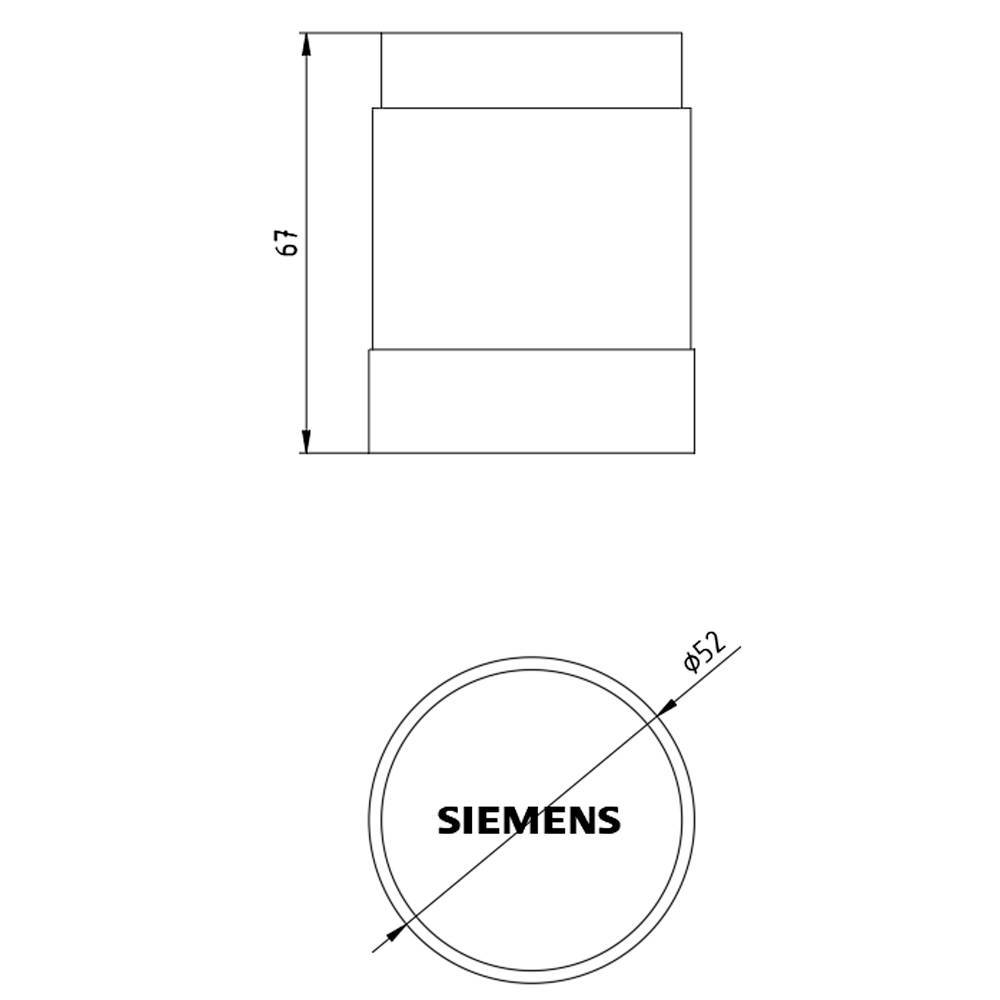

Technical drawing of a cylindrical component with dimensions of 67 mm height and 52 mm diameter, marked with 'SIEMENS'.

1/4

Image similar

Datasheet (PDF)

Dispatches on Wed, 30 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€ 113.44

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Design of the product: Including bulbs
Ambient temperature: -20 °C to +50 °C
LED life 100000 h
Maximum current consumed: 35 mA
Type of bulb: LED

Product type: Continuous light

Operating voltage: 230 V

Max. current consumption: 35 mA

Factory colour: Green

Lighted picture: Permanent light

Signal type: Non-stop light signal

(Ø): 50 mm

Height: 67 mm

Features: LED

: IP54

Dim: (Ø x H) 50 mm x 67 mm

Width: 52 mm

Colour: Green

Material: PC

Type: 8WD4250-5AC

Light intensity: 1.68 cd

Weight: 54 g

Type: Bayonet

Max. temperature: +50 °C

Min. temperature: -20 °C

: Green

: 50 mm

: Continuous light

: Green

: AC

: LED

: IP54

: Other

UKCA: yes
