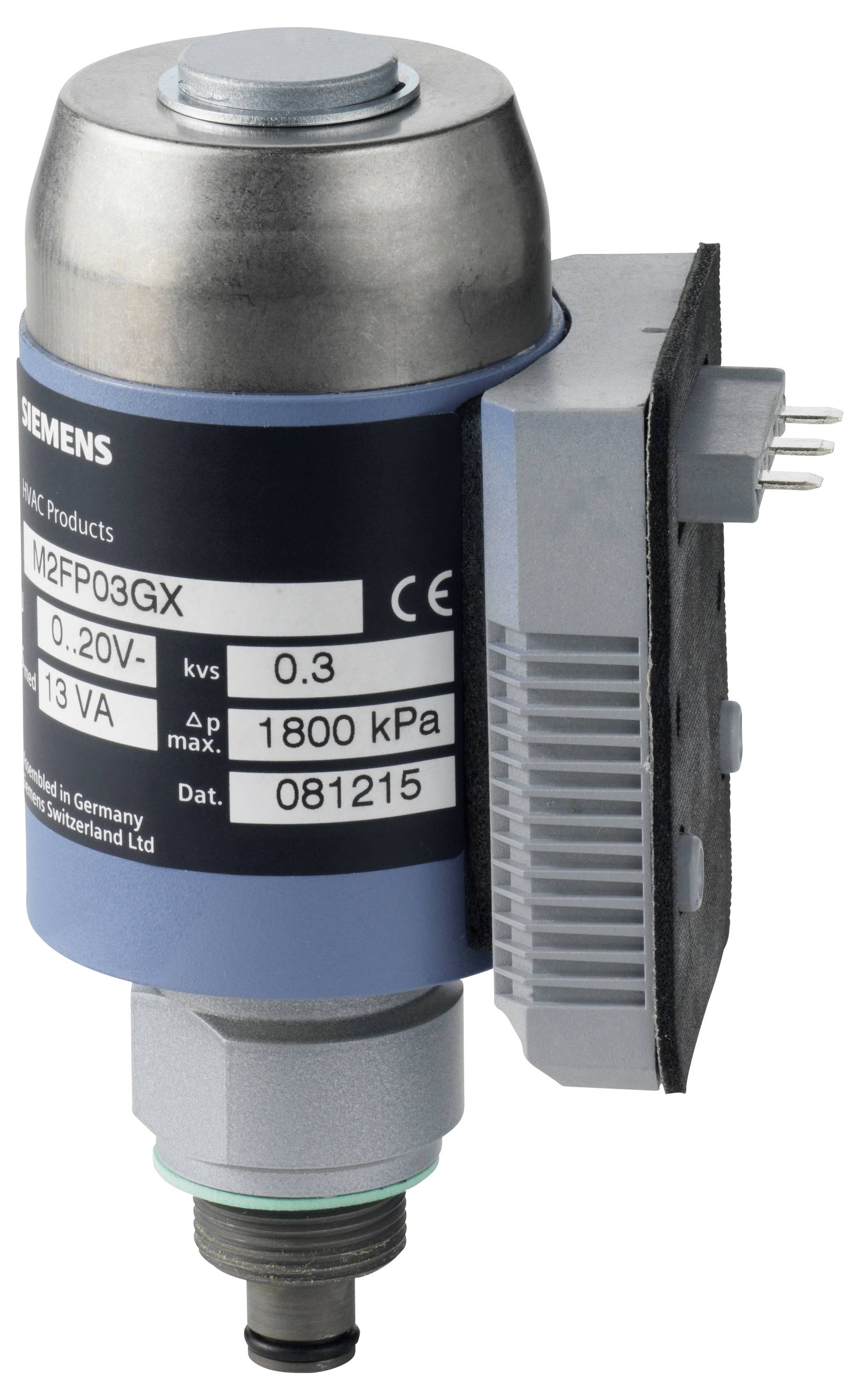

Image similar
Siemens Continuous pilot valve BPZ:M2FP03GX BPZ:M2FP03GX 24 V AC 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Continuous pilot valve
- Operating voltage
24 V AC
- Max. operating pressure
32 bar
- Enclosure material
Steel
- Media temperature (range)
-40 up to 100 °C
- Manufacturer part #
BPZ:M2FP03GX
- Max. media temperature
100 °C
- Media temperature (min.)
-40 °C
- Height
149 mm
IP54
- Max. ambient temperature
50 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3753738 Siemens Continuous pilot valve BPZ:M2FP03GX BPZ:M2FP03GX 24 V AC 1 pc(s)
Description
Hermetically sealed passage valve as control device for main valves from 2 to 5. - PN32 with threaded connection - For refrigerants such as R22, R134a, R404A, R407C, R507 and ammonia R717 - connecting electronics ZM must be ordered separately, see below
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
