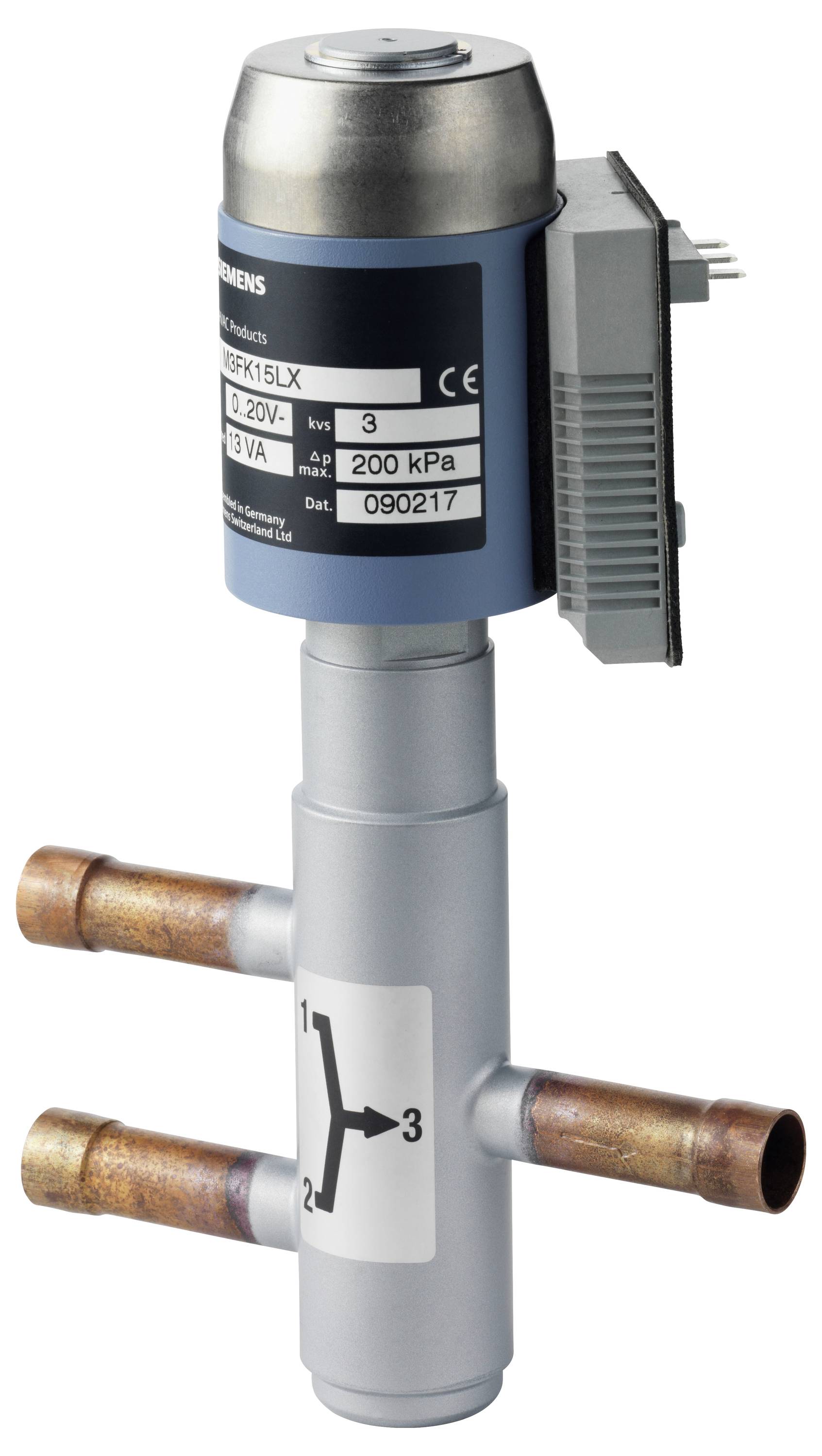

Siemens Coolant mixing/globe valve BPZ:M3FK20LX BPZ:M3FK20LX 24 V AC 20 mm Nominal width (details) 20 mm Mixing valve 1
EAN:
Part number:
Item no:
Technical specifications
- Product type
Coolant mixing/globe valve
- Operating voltage
24 V AC
- Max. operating pressure
32 bar
- Enclosure material
Steel
- Connection
20 mm
- Media temperature (range)
-40 up to 120 °C
- Manufacturer part #
BPZ:M3FK20LX
- Max. media temperature
120 °C
- Media temperature (min.)
-40 °C
- Nominal width
20 mm
- Height
265 mm
IP54
- Max. ambient temperature
50 °C
- Operating principle
Mixing valve
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3753748 Siemens Coolant mixing/globe valve BPZ:M3FK20LX BPZ:M3FK20LX 24 V AC 20 mm Nominal width (details) 20 mm Mixing valve 1
Description
Hermetically sealed mixing or through valves for continuous power control of capacitors. - PN32 with copper inner solder connection - For safety refrigerants such as R22, R134a, R404A, R407C, R507 etc. - ZM connection electronics must be ordered separately, see below
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
