Buy Siemens Flasher module 8WD44200CE 8WD4420-0CE Xenon Clear 1 pc(s)

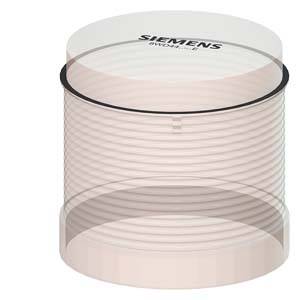

Cylindrical component with 'Siemens' inscription on the top surface, with ribbed sides. Potentially a part of an electronic device.

Image similar

A worker wearing safety glasses is operating a yellow machine with a signal light in the foreground. The lamp shows green, yellow, and red.

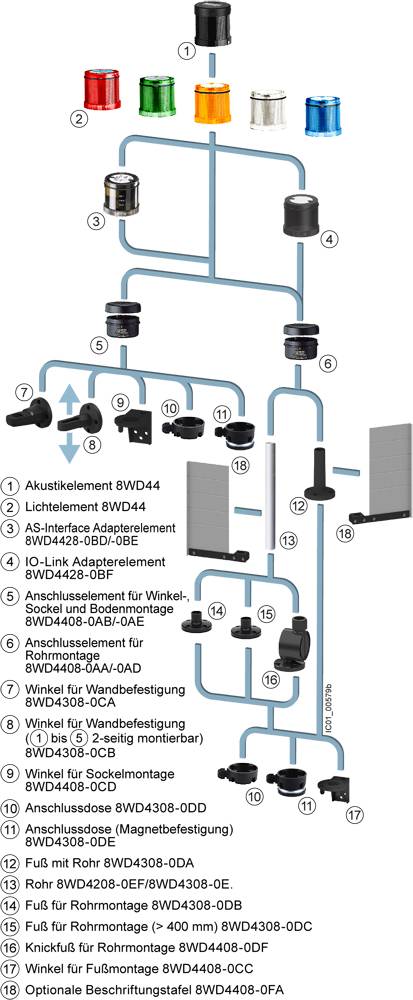

'Diagram of an automation system showing connections and components, numbered from 1 to 19 with explanations.'

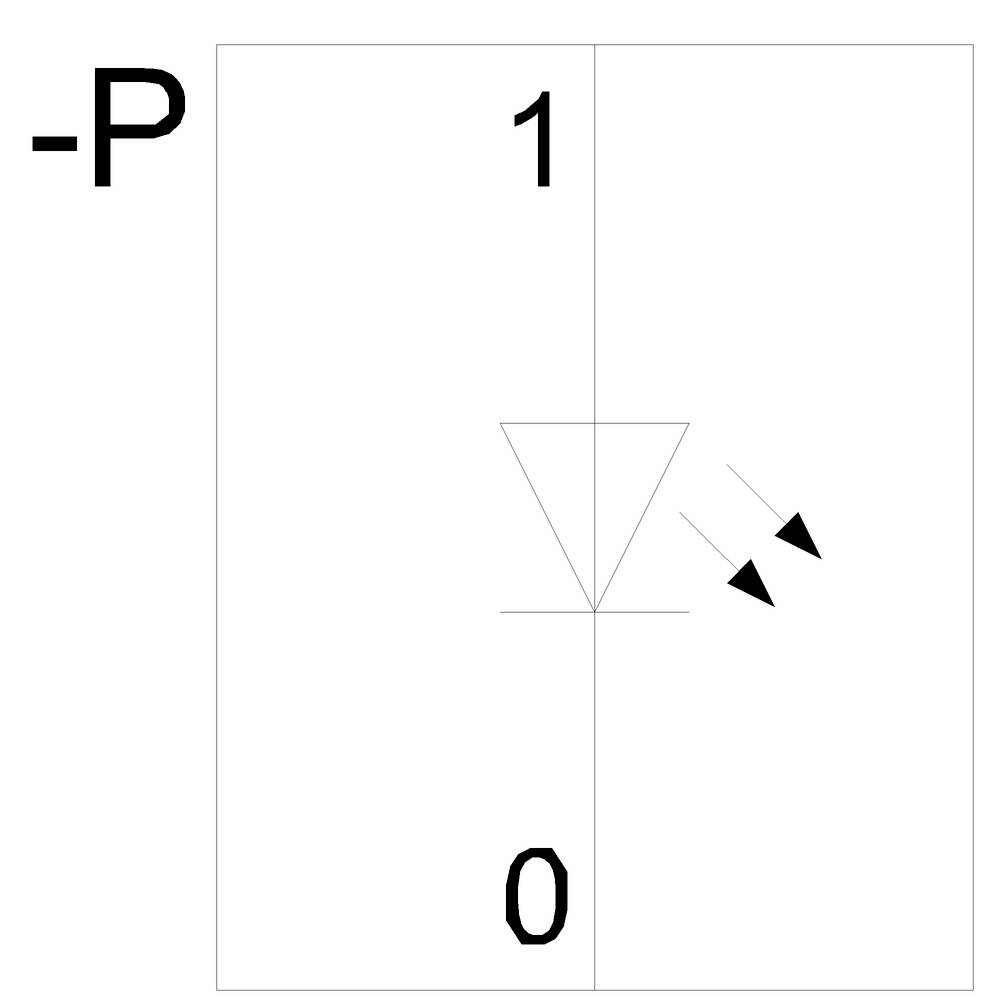

A diagram shows an arrow pointing to an inverted triangle at the centre. On the left is '-P', at the top '1', and at the bottom '0'.

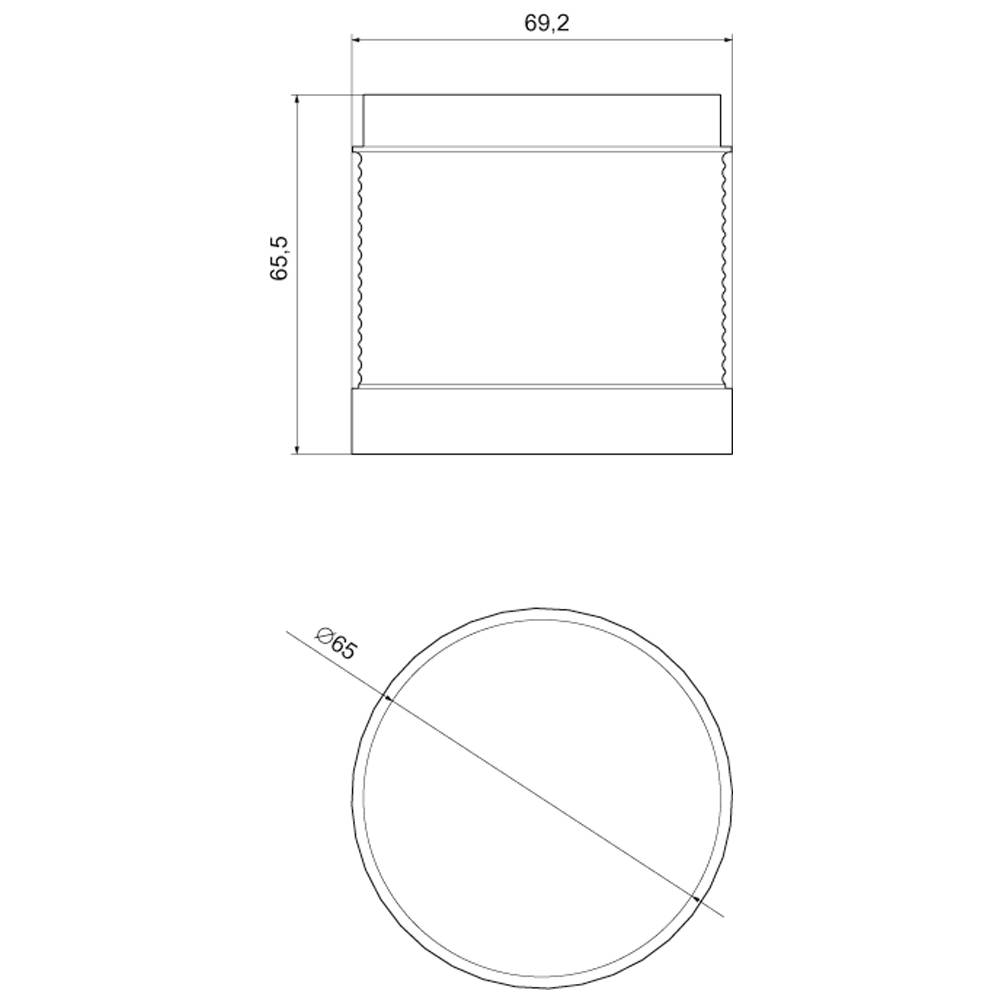

Technical drawing of a cylindrical object. Front view shows height of 69.2 mm and width of 68.5 mm, top view shows a circle.

1/5

Image similar

Datasheet (PDF)

Dispatches on Thu, 17 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 142.85 / piece)

€ 142.85

plus VAT.

Report legal concerns

Technical specifications

Design of the product: Including bulbs
Ambient temperature: -20 °C to +50 °C
Current consumption max. 125 mA
Type of bulb: Xenon gas discharge bulb

Product type: Flasher module

Operating voltage: 24 V

Max. current consumption: 125 mA

Factory colour: Transparent

Lighted picture: Flash

Signal type: Flash

(Ø): 70 mm

Height: 65.5 mm

Features: Xenon

: IP65

Dim: (Ø x H) 70 mm x 65.5 mm

Width: 70 mm

Colour: Clear

Material: PC

Type: 8WD4420-0CE

Light intensity: 92666 cd

Weight: 87 g

Type: Bayonet

Max. temperature: +50 °C

Min. temperature: -20 °C

: 70 mm

: Flash light

: Other

: DC

: Xenon

: IP65

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1748922 Siemens Flasher module 8WD44200CE 8WD4420-0CE Xenon Clear 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1748922 Siemens Flasher module 8WD44200CE 8WD4420-0CE Xenon Clear 1 pc(s)

Description

Continuous light element, with integrated LED, clear, 24 V AC/DC, Diameter 70 mm
