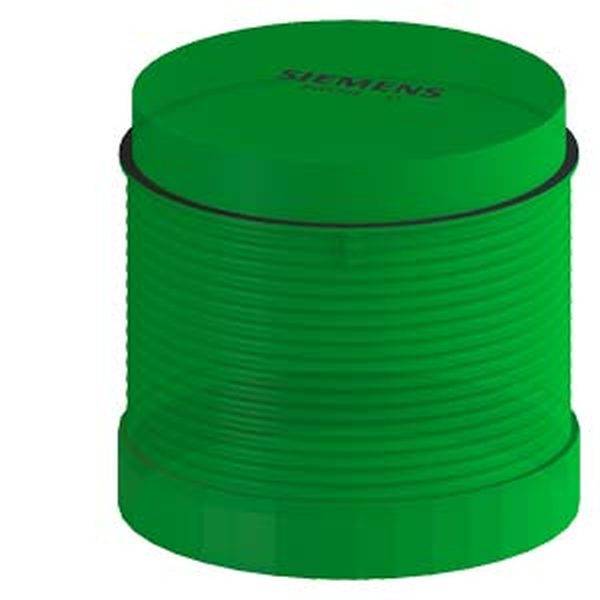

Buy Siemens Flasher module 8WD44400CC 8WD4440-0CC Xenon 1 pc(s)

Image similar

A man in workwear stands in front of machines in a factory. In the foreground is a signal lamp with green, yellow, and red lights.

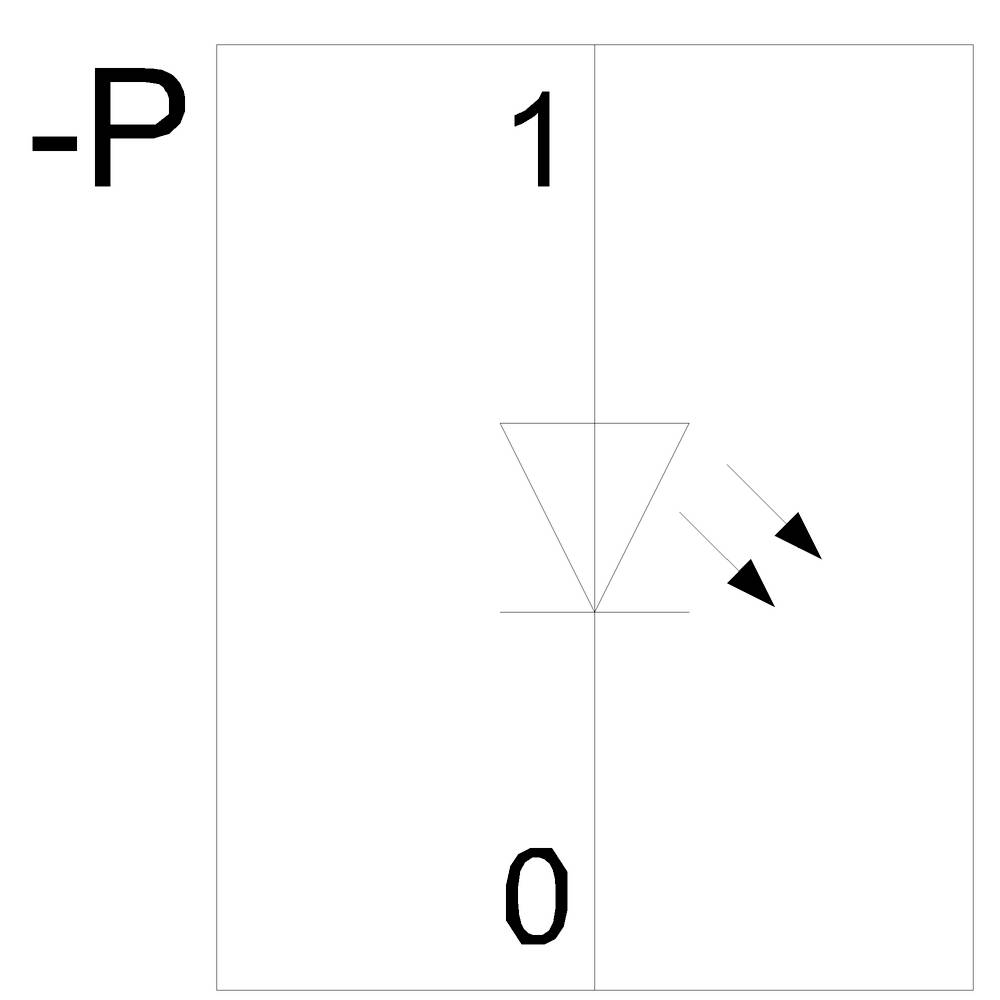

A diagram with a triangle shows a sequence of numbers. On the left is '-P', bottom right is '0', top is '1'. Arrows point to the right.

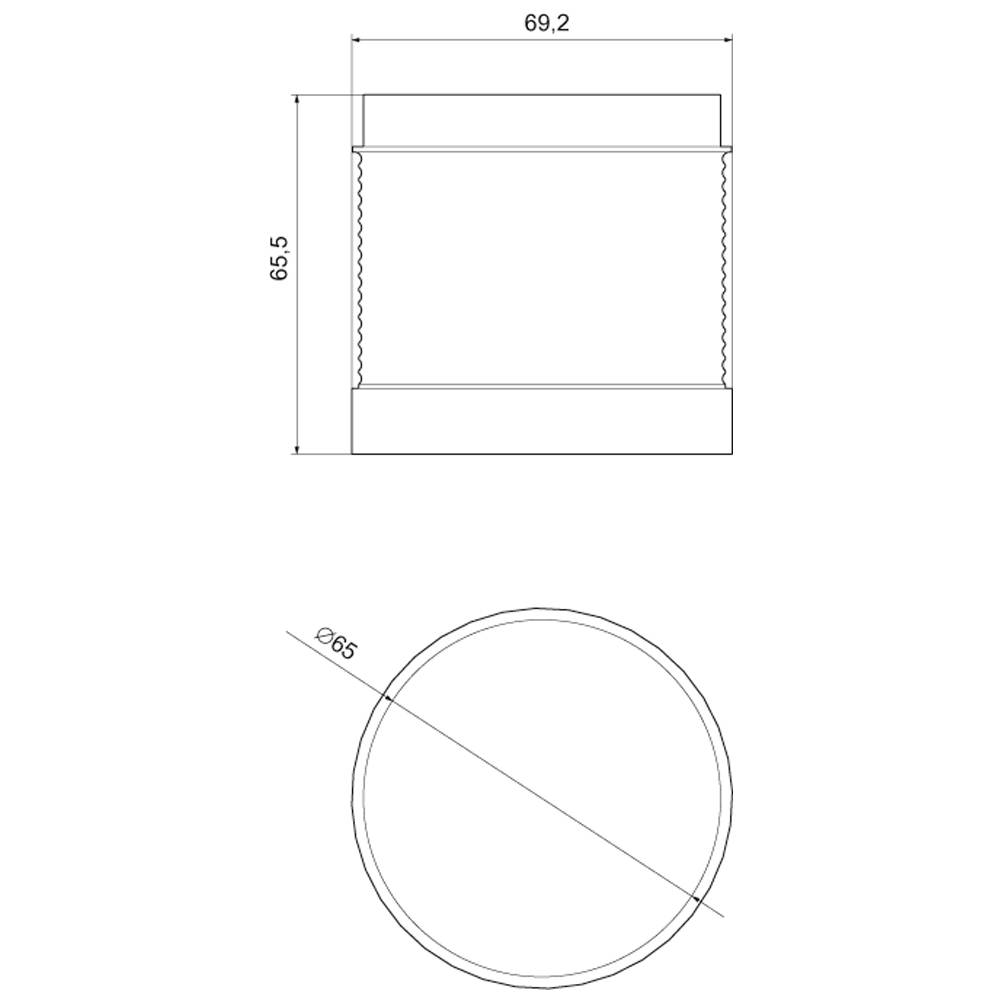

Technical drawing of a cylindrical object with dimensions: height 68.5 mm, diameter 69.2 mm. Top view and side view shown.

1/4

Image similar

Datasheet (PDF)

Dispatches on Wed, 14 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Design of the product: Including bulbs
Ambient temperature: -20 °C to +50 °C
Type of bulb: Xenon gas discharge bulb

Product type: Flasher module

Operating voltage: 115 V

Factory colour: Green

Lighted picture: Flash

Signal type: Flash

(Ø): 70 mm

Height: 65.5 mm

Features: Xenon

: IP65

Dim: (Ø x H) 70 mm x 65.5 mm

Width: 70 mm

Material: PC

Type: 8WD4440-0CC

Light intensity: 18809 cd

Weight: 86 g

Type: Bayonet

Calotte colour: Green

Max. temperature: +50 °C

Min. temperature: -20 °C

: Green

: 70 mm

: Flash light

: Green

: AC

: IP65

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1742566 Siemens Flasher module 8WD44400CC 8WD4440-0CC Xenon 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1742566 Siemens Flasher module 8WD44400CC 8WD4440-0CC Xenon 1 pc(s)

Description

Buzzer element, continuous tone or pulsating, adjustable, 85 dB, black, 115 V AC, diameter 70 mm
