Buy Siemens Flasher module 8WD44400CE 8WD4440-0CE Xenon Clear 1 pc(s)

A cylindrical object with transparent walls, labelled 'SIEMENS' at the top.

Image similar

A man is working at a charging station with yellow equipment and an illuminated display. The display shows green, yellow, and red indicators.

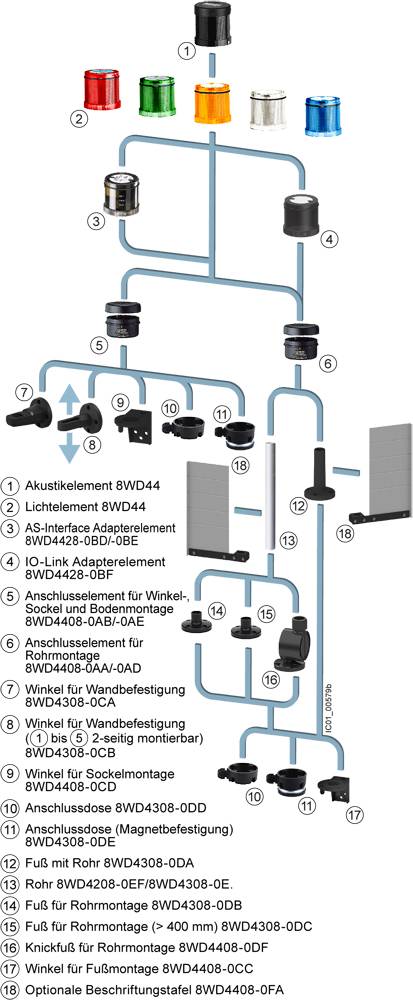

'Siemens diagram contains 22 components for automation: acoustic element, light elements, operating devices, and mounting accessories.'

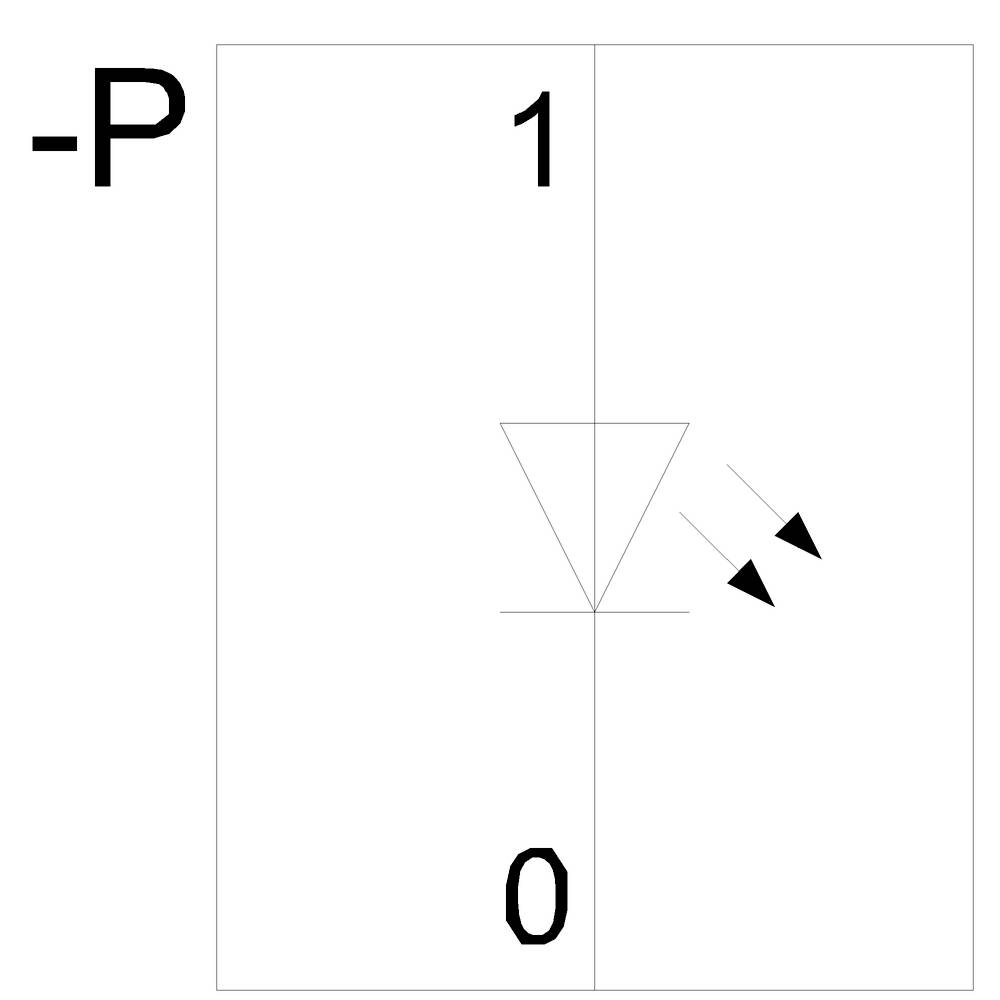

'1' is positioned in a rectangle, with an arrow pointing to a triangle accompanied by two additional arrows. On the left is '-P', and at the bottom is '0'.

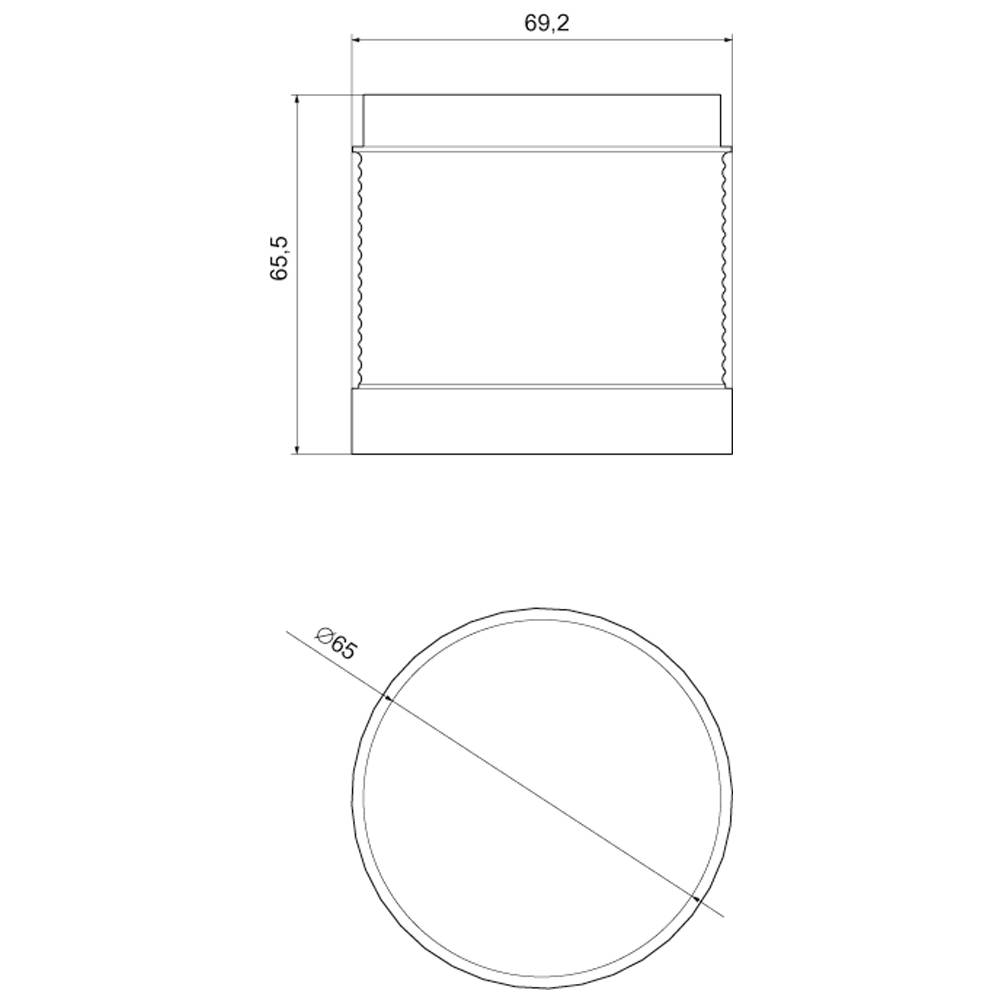

A technical diagram shows the dimensions of a cylindrical object with an upper diameter of 69.2 mm and a height of 68.5 mm.

1/5

Image similar

Datasheet (PDF)

Dispatches on Wed, 9 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

Report legal concerns

Technical specifications

Design of the product: Including bulbs
Ambient temperature: -20 °C to +50 °C
Type of bulb: Xenon gas discharge bulb

Product type: Flasher module

Operating voltage: 115 V

Factory colour: Transparent

Lighted picture: Flash

Signal type: Flash

(Ø): 70 mm

Height: 65.5 mm

Features: Xenon

: IP65

Dim: (Ø x H) 70 mm x 65.5 mm

Width: 70 mm

Colour: Clear

Material: PC

Type: 8WD4440-0CE

Light intensity: 32098 cd

Weight: 88 g

Type: Bayonet

Calotte colour: Clear

Max. temperature: +50 °C

Min. temperature: -20 °C

: Clear

: 70 mm

: Flash light

: Other

: AC

: IP65

: Other

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1701640 Siemens Flasher module 8WD44400CE 8WD4440-0CE Xenon Clear 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1701640 Siemens Flasher module 8WD44400CE 8WD4440-0CE Xenon Clear 1 pc(s)

Description

Continuous light element, with integrated LED, green, 115 V AC, Diameter 70 mm
