Buy Siemens Flasher module 8WD44500CC 8WD4450-0CC Xenon Green 1 pc(s)

Image similar

A yellow charger with green, yellow, and red signal lights stands in the foreground; a man is working on a machine in the background.

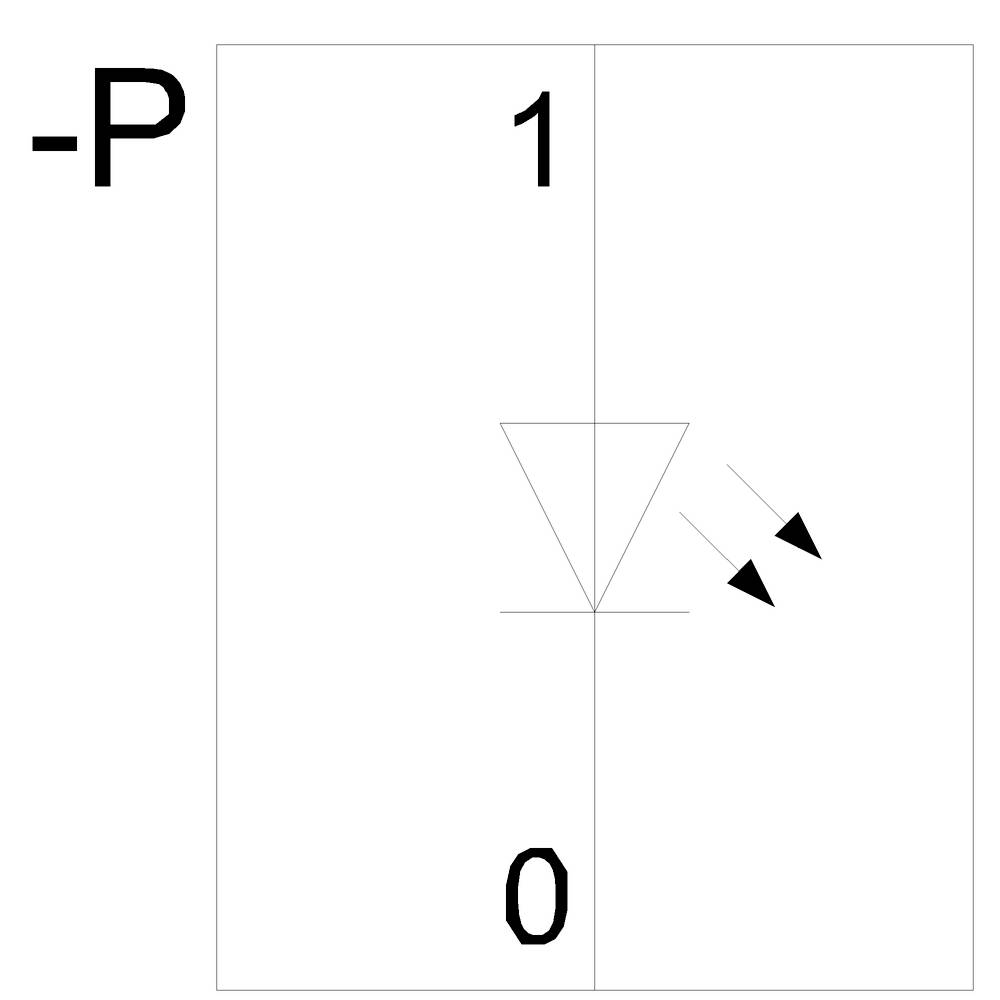

Diagram shows a triangle with arrows pointing right and text '-P' on the left, '1' at the top, '0' at the bottom. Symbolises bias voltage direction.

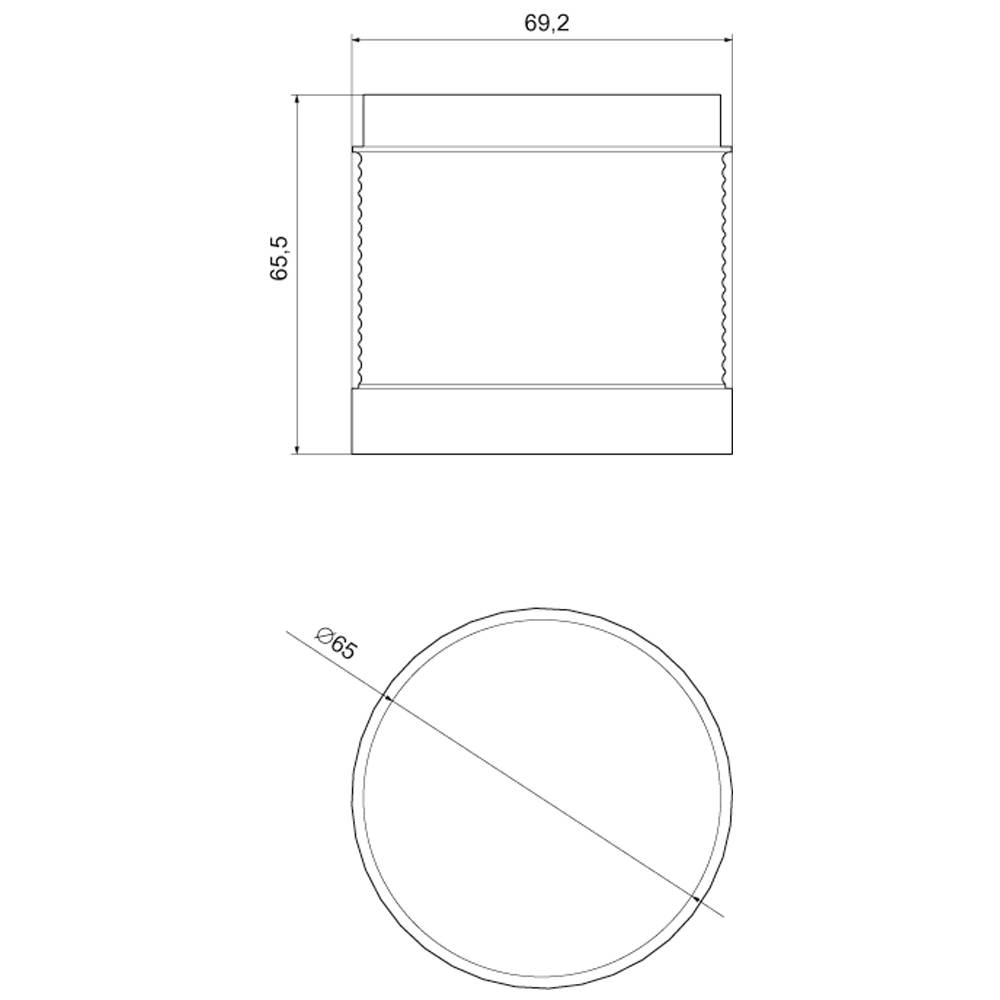

Technical drawing of a cylindrical object, with dimensions of 69.2 mm width and 68.5 mm height. Top view shows a circle.

1/4

Image similar

Datasheet (PDF)

Dispatches on Wed, 14 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Design of the product: Including bulbs
Ambient temperature: -20 °C to +50 °C
Type of bulb: Xenon gas discharge bulb

Product type: Flasher module

Operating voltage: 230 V

Factory colour: Green

Lighted picture: Flash

Signal type: Flash

(Ø): 70 mm

Height: 65.5 mm

Features: Xenon

: IP65

Dim: (Ø x H) 70 mm x 65.5 mm

Width: 70 mm

Colour: Green

Material: PC

Type: 8WD4450-0CC

Light intensity: 21724 cd

Weight: 87 g

Type: Bayonet

Max. temperature: +50 °C

Min. temperature: -20 °C

: Green

: 70 mm

: Flash light

: Green

: AC

: IP65

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1742579 Siemens Flasher module 8WD44500CC 8WD4450-0CC Xenon Green 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1742579 Siemens Flasher module 8WD44500CC 8WD4450-0CC Xenon Green 1 pc(s)

Description

n- or pe-distribution terminal f.conductor cross sect.4sqmm f.busbar 6X6mm
