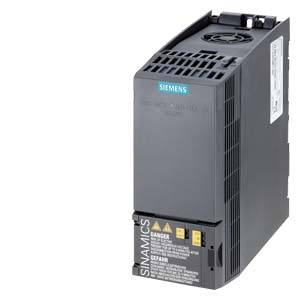

Siemens Frequency inverter 6SL3210-1KE14-3AP2 1.1 kW 380 V, 480 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 604.20 / piece)
€ 604.20
plus VAT.
Technical specifications
- Relative symmetrical power frequency tolerance: 5
- Relative symmetrical power voltage tolerance: -20
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
1.1 kW
- Max. frequency
550 Hz
- Min. frequency
0 Hz
- Frequency range
0 Hz - 550 Hz
- Nominal current
4.3 A
- Depth
155 mm
- Height
173 mm
- Width
73 mm
IP20
- Type
6SL3210-1KE14-3AP2
- Dim
(W x H x D) 73 x 173 x 155 mm
- Manufacturer part #
6SL32101KE143AP2
- Weight
1.5 kg
Documents & Downloads
Datasheet
Datasheet 1736113 Siemens Frequency inverter 6SL3210-1KE14-3AP2 1.1 kW 380 V, 480 V
User & Safety Instructions
User & Safety Instructions 1736113 Siemens Frequency inverter 6SL3210-1KE14-3AP2 1.1 kW 380 V, 480 V
Description
SINAMICS G120C RATED POWER 2,2KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X155(HXWXD) EXTERNAL 24V
