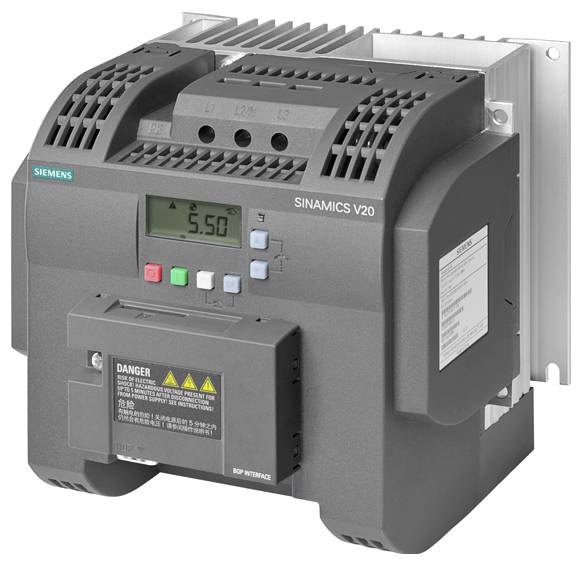

Siemens Frequency inverter 6SL3216-5BE17-5CV1 0.75 kW 3-phase

SINAMICS V20 flat heat sink 380-480 V 3 AC -15 1/+10% 47-63Hz rated output 0.75 kW with 150% overload for 60 s integrated filter C3 I/O: 4 DI, 2 digital outputs, 2 AO field bus: USS/MODBUS RTU with integrated BOP protection: IP20/UL unencapsulated Size: A 90x150x115 (BxHxT) flat heatsink integrated braking unit SINAMICS V20 frequency converter. Simple. Robust. Efficient. For industrial applications and commercial applications in the voltage range 3AC 380 V to 480 V. SINAMICS V20 is characterized by short commissioning times, simple operation, robustness and cost-efficiency. The converter can be operated directly from the packaging without any additional modules. To increase energy efficiency, the converter is equipped with an energy-optimized control method with automatic flow reduction. It also represents the current power consumption and has additional integrated power saving functions. The keep-running mode enables a stable operation even under difficult and fluctuating mains conditions. The converter is available in nine sizes in a power range from 0.12 kW to 30 kW for operation on single and three-phase networks (1AC 200 V to 240 V, 3AC 380 V to 480 V). The SINAMICS V20 can be configured using various options, such as the Basic Operator Panel (BOP) local operator panel or SINAMICS V20 Smart Access Module mobile operator panel, BOP interface, standard network cables, line filters, braking resistors, shielding, etc. can be adapted individually to the requirements of the application. It also enables simple system configuration with predefined macros in the converter and pre-fabricated function blocks from the Totally Integrated Automation Portal (TIA-Portal) for fast connection e.g. to a SIMATIC-S7-1200 controller. The SINAMICS V20 basic converter is a technical and economical alternative for the Micromaster 420 frequency converter. SINAMICS - just my drive.
