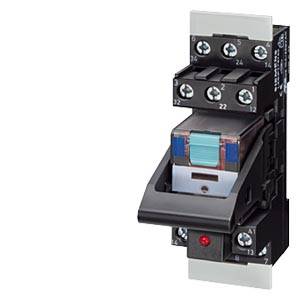

Siemens LZS:PT5A5L24 Plug-in relay 4 change-overs 5 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Contact type

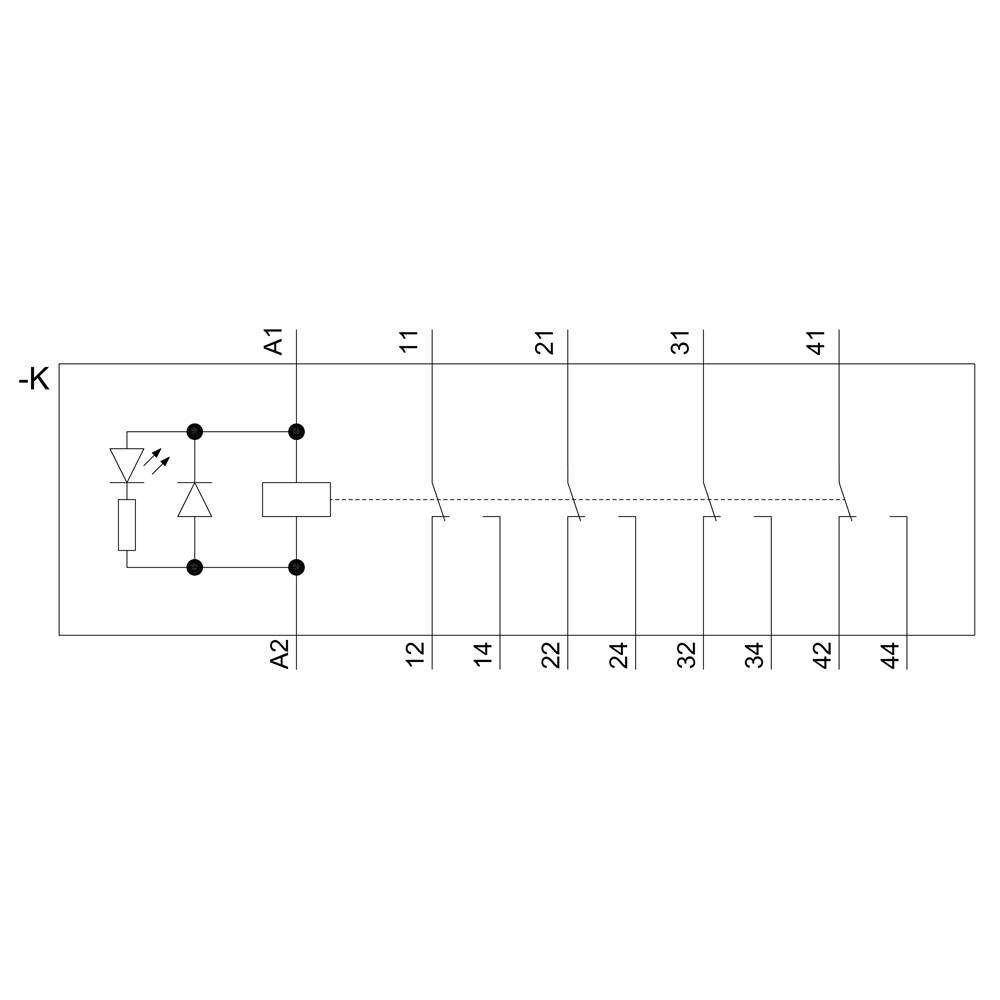

4 change-overs
Type
LZS:PT5A5L24
Connection
Screws
Contact material
AgNi 90/10
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 17.65 / piece)
€ 88.23
plus VAT.
Technical specifications
- Power loss: 1 W
- Thermal current 6 A
- To suit conductor cross-section: 1 mm²-2.5 mm²
- Mounting type: Snap-on mounting
- Wire stripping length: 8 mm
- Product type
Plug-in relay
- Type
LZS:PT5A5L24
- Connection
Screws
- Contact type
4 change-overs
- Contact material
AgNi 90/10
- Electrical lifespan
250000
- Durability
3.0E7
IP20
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Depth
74 mm
- Width
28 mm
- Height
72 mm

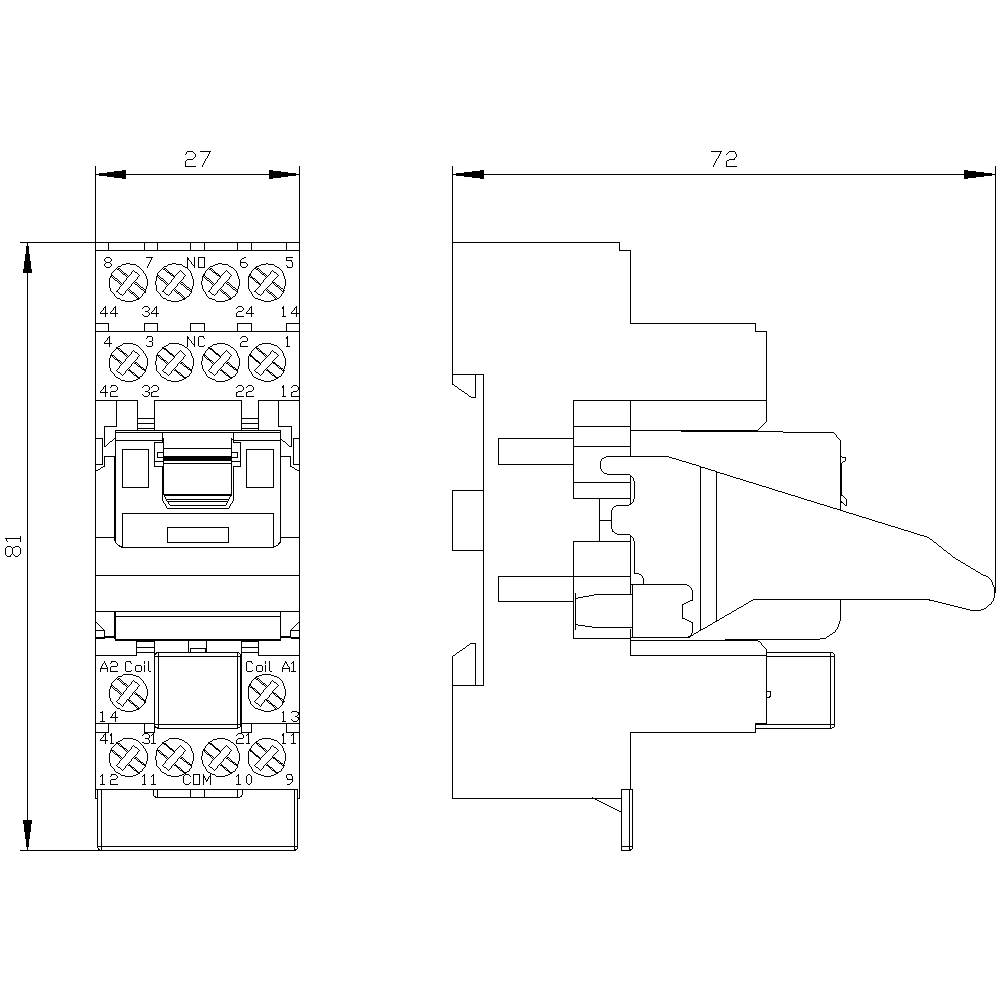

- Dim
(W x H x D) 28 x 72 x 74 mm
- Content
5 pc(s)
- Mounting type
Push-fit
- Operating voltage
24 V DC
- Max. operating voltage
24 V DC
Documents & Downloads
Datasheet
Datasheet 1740362 Siemens LZS:PT5A5L24 Plug-in relay 4 change-overs 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1740362 Siemens LZS:PT5A5L24 Plug-in relay 4 change-overs 5 pc(s)
Description
Plug-in socket for PT relay 4 changeover contacts with logic isolation Spring-type terminal (push-in)
