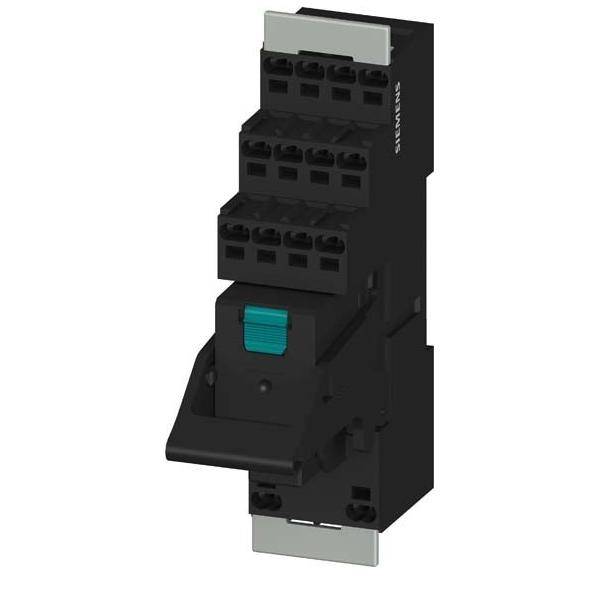

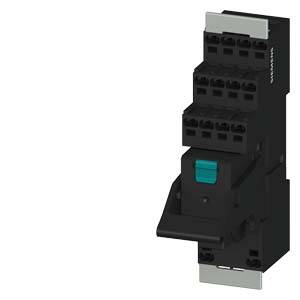

Siemens LZS:PT5D5S15 Plug-in relay 4 change-overs Piece 5 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Plug-in relay
Contact type
4 change-overs
Type
LZS:PT5D5S15
Connection
Spring-loaded connector
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 19.33 / piece)
€ 96.63
plus VAT.
Technical specifications
- Mounting type: Snap-on mounting
- Power loss: 1 W
- Thermal current 6 A
- To suit conductor cross-section: 0.75 mm²-1.5 mm²
- Wire stripping length: 12 mm
- Control supply voltage frequency: 50/60 Hz
- Packaging type
Piece
- Product type
Plug-in relay
- Type
LZS:PT5D5S15
- Connection
Spring-loaded connector
- Contact type
4 change-overs
- Contact material
AgNi 90/10
- Electrical lifespan
250000
- Durability
2.0E7
- Features
pluggable
IP20
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Depth
98 mm
- Width
28 mm
- Height
79 mm
- Dim
(W x H x D) 28 x 79 x 98 mm
- Content
5 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1740372 Siemens LZS:PT5D5S15 Plug-in relay 4 change-overs Piece 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1740372 Siemens LZS:PT5D5S15 Plug-in relay 4 change-overs Piece 5 pc(s)
Description
Labeling plate 26 mm for PT relay
