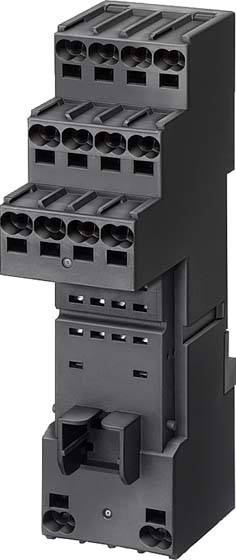

Black electronic component with multiple slots and a lever, possibly for industrial or electrical applications.

Image similar

Black electronic component with multiple slots and a lever, possibly for industrial or electrical applications.

Electrical cabinet with electrical components: contactors, relays, fuses, wiring and control devices. Indicator lights at the top display system status.

A rectangular spatial plan with numbered segments from A1 to 44, distributed across an axis from -U to 4.

Technical drawing of an electrical switchgear with dimensional specifications in millimetres of 98 x 28 front view and 36.9 side view.

'Diagram of an electrical circuit plan with symbolic representations of contacts and coils, including labels such as 12, 41, COM.'

1/5

Image similar

Product type

Socket

Type

LZS:PT7874P

Connection

Spring-loaded connector

IP rating

IP20

Max. temperature

+70 °C

Datasheet (PDF)

Deutsch (Deutschland)

Siemens

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.92 / piece)

€

Report legal concerns

Technical specifications

Mounting type: Snap-on mounting
To suit conductor cross-section: 0.75 mm²-1.5 mm²
Wire stripping length: 12 mm

Product type: Socket

Type: LZS:PT7874P

Connection: Spring-loaded connector

: IP20

Max. temperature: +70 °C

Min. temperature: -40 °C

Depth: 98 mm

Width: 28 mm

Dim: (W x D) 28 mm x 98 mm

Content: 1 pc(s)

: 28

: 98 mm

: 48.3 mm

: FALSE

: Polarized

: Mono stable

: FALSE

: TRUE

: Spring clamp connection

: IP20

: FALSE

: 0

: 0

: 0

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1702435 Siemens LZS:PT7874P Socket 1 pc(s)

Datasheet 1702435 Siemens LZS:PT7874P Socket 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1702435 Siemens LZS:PT7874P Socket 1 pc(s)

Description

Plug-in relay complete unit 3 W, 230 V AC LED module red Standard plug-in socket screw terminal 3.5 mm pinning
