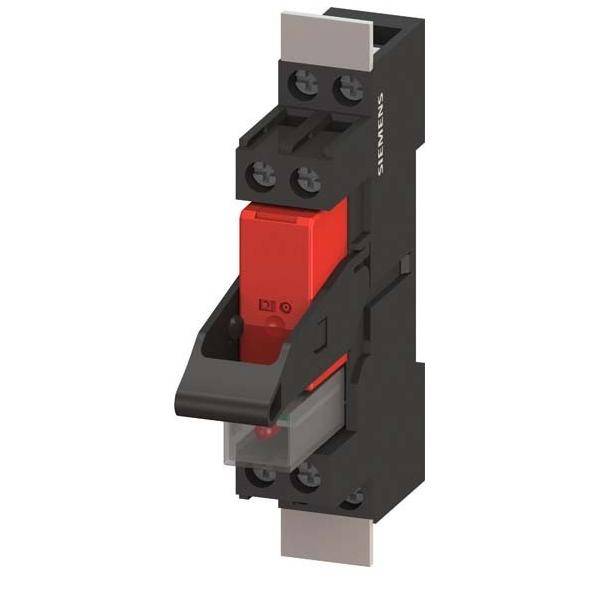

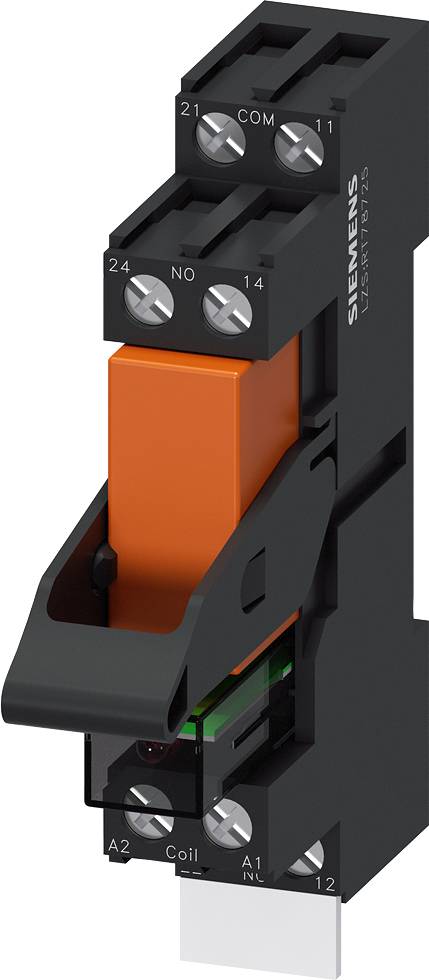

Siemens LZS:RT3A4T30 Plug-in relay 1 change-over 5 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Contact type
1 change-over
Type
LZS:RT3A4T30
Connection
Screws
Contact material
AgNi 90/10
Datasheet (PDF)
Sales and shipping:
Number (Package size 5 pc(s))
Total (€ 21.01 / piece)
€
Technical specifications
- Mounting type: Snap-on mounting
- Power loss: 1 W
- Thermal current: 16 A
- To suit conductor cross-section: 1 mm²-2.5 mm²
- Wire stripping length: 8 mm
- Control supply voltage frequency: 50/60 Hz
- Product type
Plug-in relay
- Type
LZS:RT3A4T30
- Connection
Screws
- Contact type
1 change-over
- Contact material
AgNi 90/10
- Electrical lifespan
600000
- Durability
1.0E7
IP20
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Depth
78 mm
- Width
15.5 mm
- Height
71 mm
- Dim
(W x H x D) 15.5 x 71 x 78 mm
- Content
5 pc(s)
Documents & Downloads
Datasheet
Datasheet 1740394 Siemens LZS:RT3A4T30 Plug-in relay 1 change-over 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1740394 Siemens LZS:RT3A4T30 Plug-in relay 1 change-over 5 pc(s)
Description
Plug-in relay complete unit 1 W, 230 V AC LED module red Standard plug-in socket screw terminal
