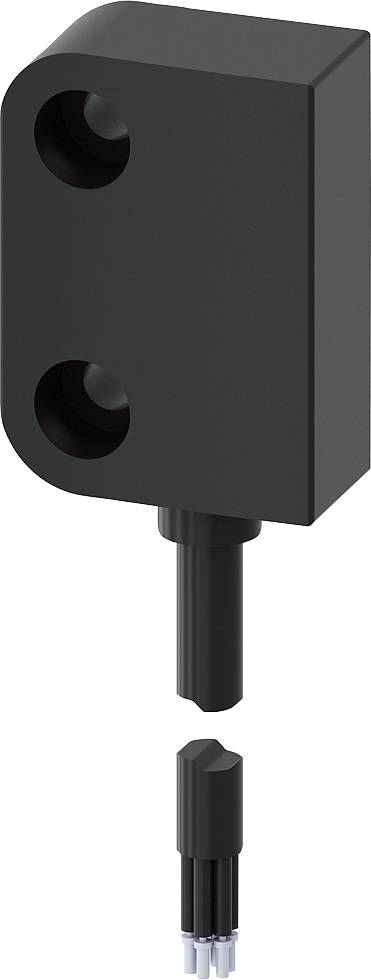

Siemens Magnetic switch 3SE6627-3CA04
EAN:
Part number:
Item no:
Product type
Magnetic switch
Max. operating voltage
75 V
Connector
Cable
Length
13 mm
Type
3SE6627-3CA04
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 109.24 / piece)
€
Technical specifications
- Mounting type: screw fastening

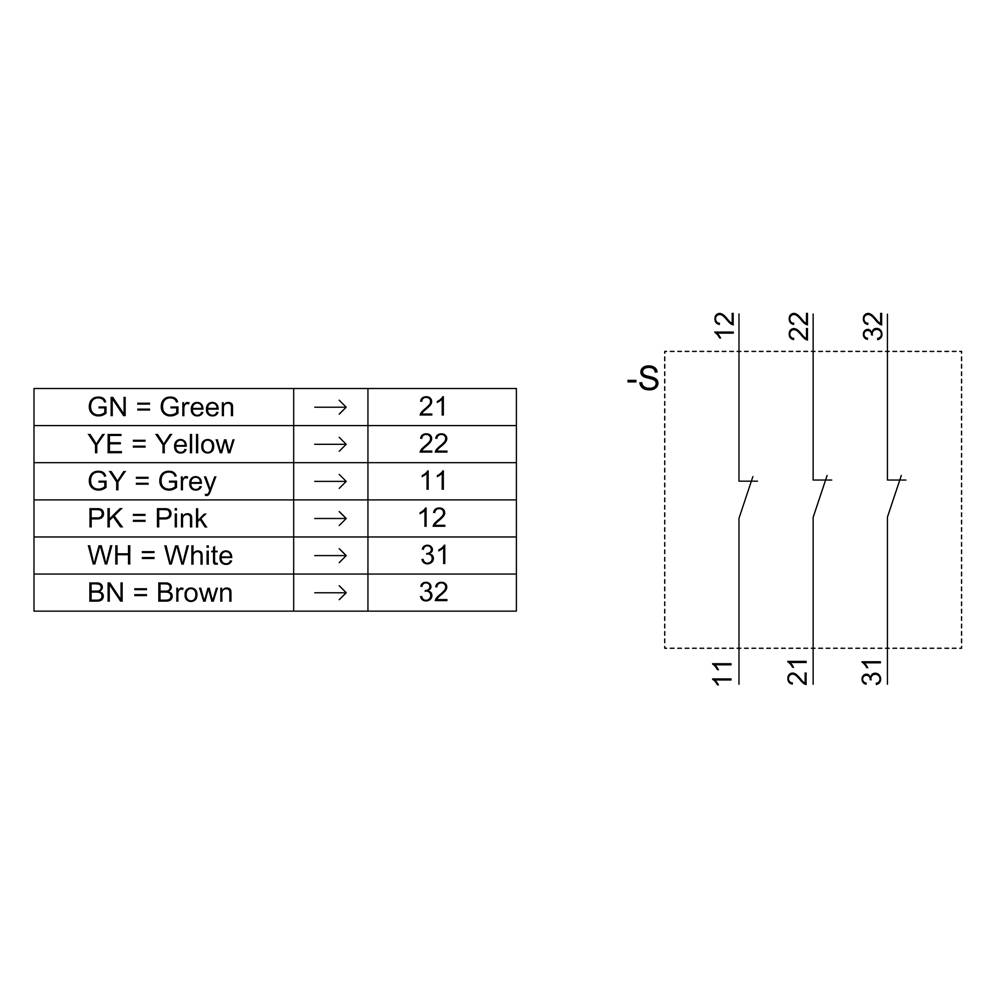

- Execution of the switching function: opener
- Operating power: 10 W
- Operating current: 400 mA
- Product type
Magnetic switch
- Type
3SE6627-3CA04
- Max. operating voltage
75 V
- Operating voltage
75 V (max)
- Cable length
3.00 m
- Switching frequency
5 Hz
- Connector
Cable
- Enclosure material
Plastic
IP67
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
13 mm
- Width
26 mm
- Height
36 mm

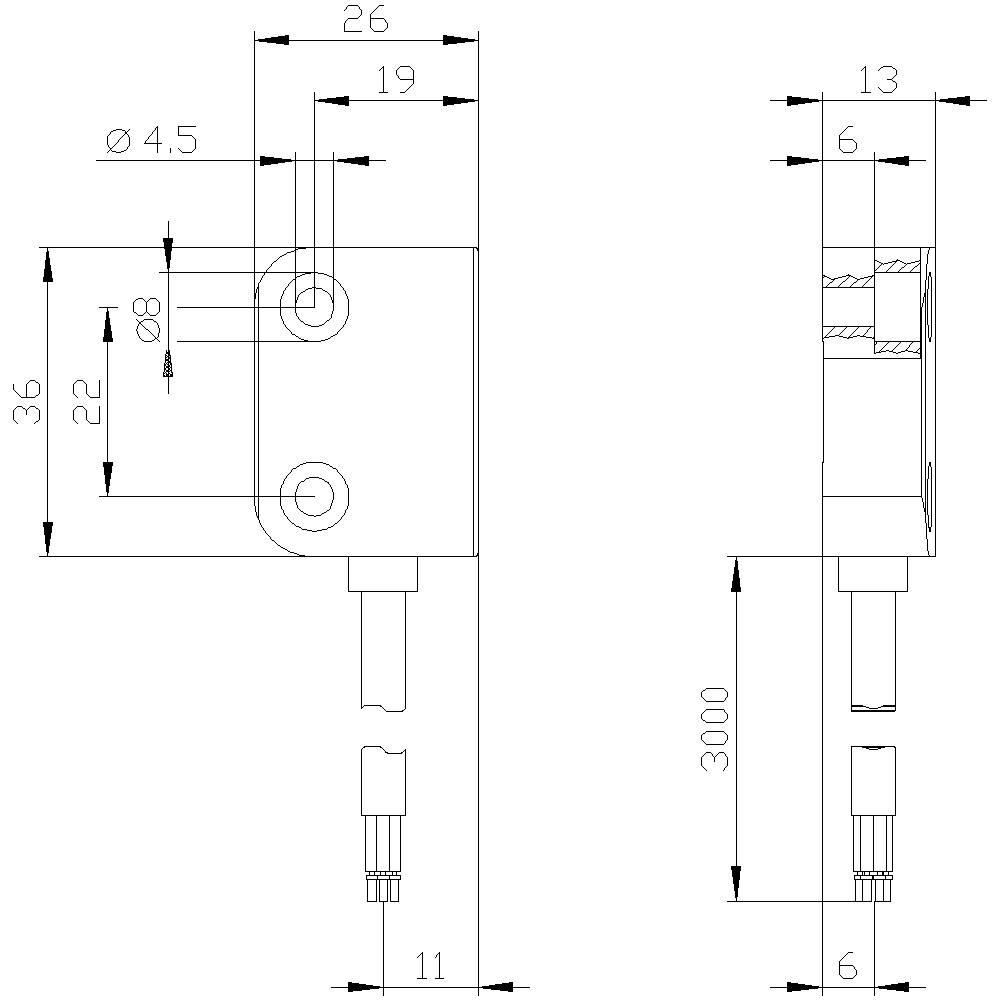

- Dim
(L x W x H) 13 x 26 x 36 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
DC
Plastic
TRUE
0
1
0
0
Cable
None
None
15 mm
5 mm
Quasi-flat
FALSE
TRUE
IP67
Magnet
26 mm
36 mm
13 mm
Level e
3
- UKCA
yes
