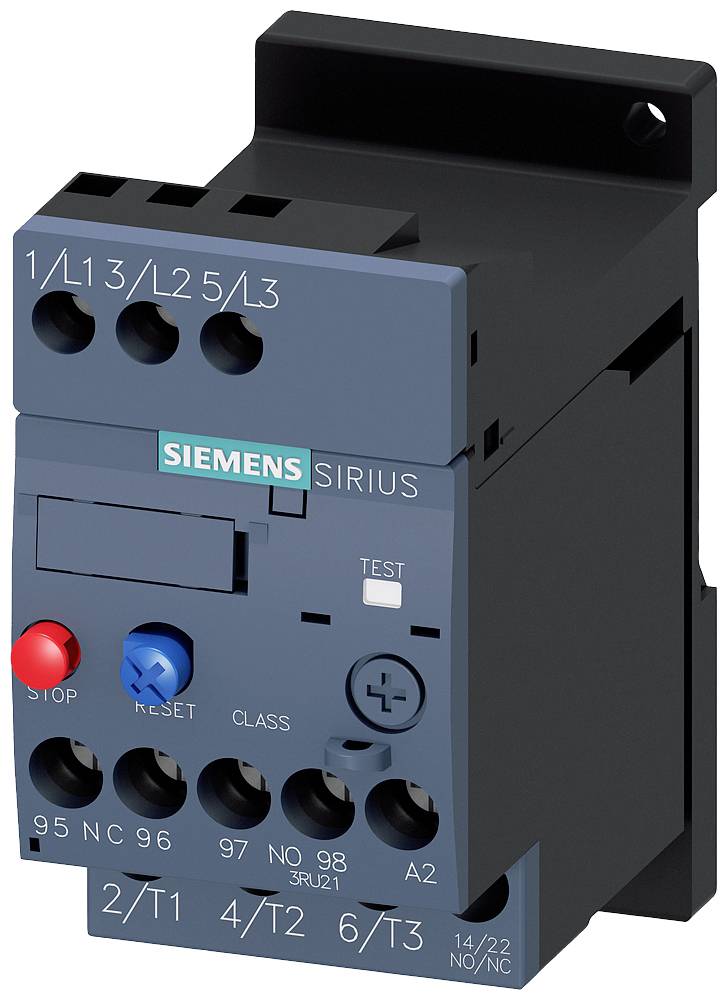

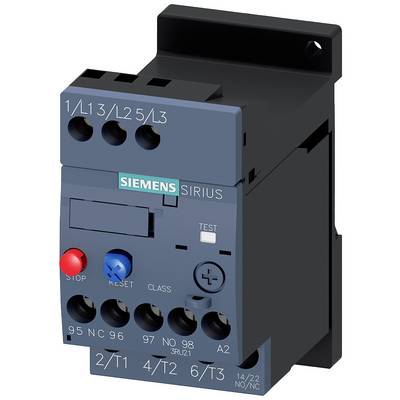

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1HB1 Overload
EAN:
Part number:
Item no:
Product type
O/L relay
Functions
Overload
Max. operating voltage
690 V AC
Contact type
1 maker
1 breaker
Type
3RU2116-1HB1
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Technical specifications
- Size of the overload relay: S00
- Mounting type: stand-alone installation
- Power loss: 6 W
- Operating frequency: 50/60 Hz
- Isolation voltage: 690 V
- Surge voltage resistance: 6000 V
- Pins for main circuit: 3
- Operating current: 8 A
- Product type
O/L relay
- Type
3RU2116-1HB1
- Type
S00
- Functions
Overload
- Features
Automatic/manual switch
- Operating voltage
690 V AC
- Max. operating voltage
690 V AC
- Operating voltage
690 V AC (max)
- Amperage adjustment range (min.)
5.5 A
- Amperage adjustment range (max.)
8 A
- Adjustment range (amperage)
5.5 - 8 A
- Contact type
1 maker
1 breaker
- Connection
Screws
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C

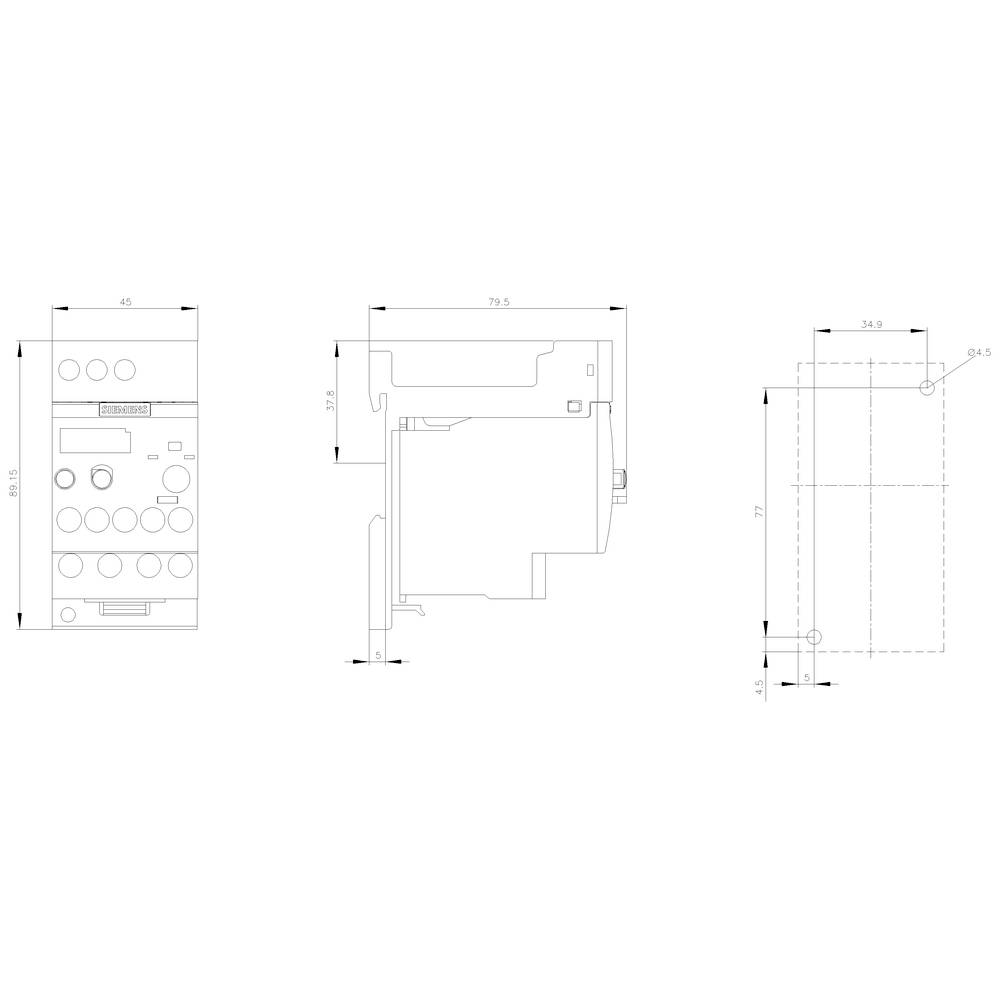

- Width
45 mm
- Height
89 mm
- Depth
80 mm
- Dim
(W x H x D) 45 x 89 x 80 mm
- Content
1 pc(s)
Separate positioning
1
1
0
CLASS 10
Screw connection
690 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1431178 Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1HB1 Overload
User & Safety Instructions
User & Safety Instructions 1431178 Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1HB1 Overload
Description
Overload relay 5.5...8.0 A thermal for motor protection size S00, CLASS 10 stand-alone main circuit: Screw auxiliary circuit: Screw manual automatic RESET SIRIUS 3RU2 thermal overload relay for current-dependant protection of consumers with normal start-up against impermissible high heating due to overload or phase failure.
This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous applications (ATEX or IEC Ex) are a matter of course.
Available with different adjustment ranges of the overload release. They are available with screw or spring-type terminals for quick, maintenance-free and vibration-proof connection, as well as for stand-alone installation.
The accessories fit all sizes S00 to S3.
Simple, efficient, always up-to-date - the SIRIUS modular system.
