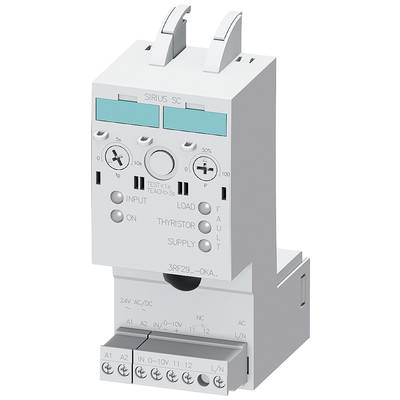

Siemens Power controller 24 V 1 change-over 1 pc(s) 3RF2904-0KA13-0KC0
EAN:
Part number:
Item no:
Product type
Power controller
Contact type
1 change-over
Switching voltage (max.)
230 V DC/AC
Type
3RF2904-0KA13-0KC0
Operating voltage
24 V
Datasheet (PDF)
Number
Total (€ 201.67 / piece)
€ 201.67
plus VAT.
Technical specifications
- Auxiliary contact type: 1 NO contact:1 NC contact
- Mounting type: Pluggable
- Product type
Power controller
- Type
3RF2904-0KA13-0KC0
- Operating voltage
24 V
- Features
pluggable
- Contact type
1 change-over
- Switching voltage (max.)
230 V DC/AC
- Min. temperature
-25 °C
- Max. temperature
+60 °C

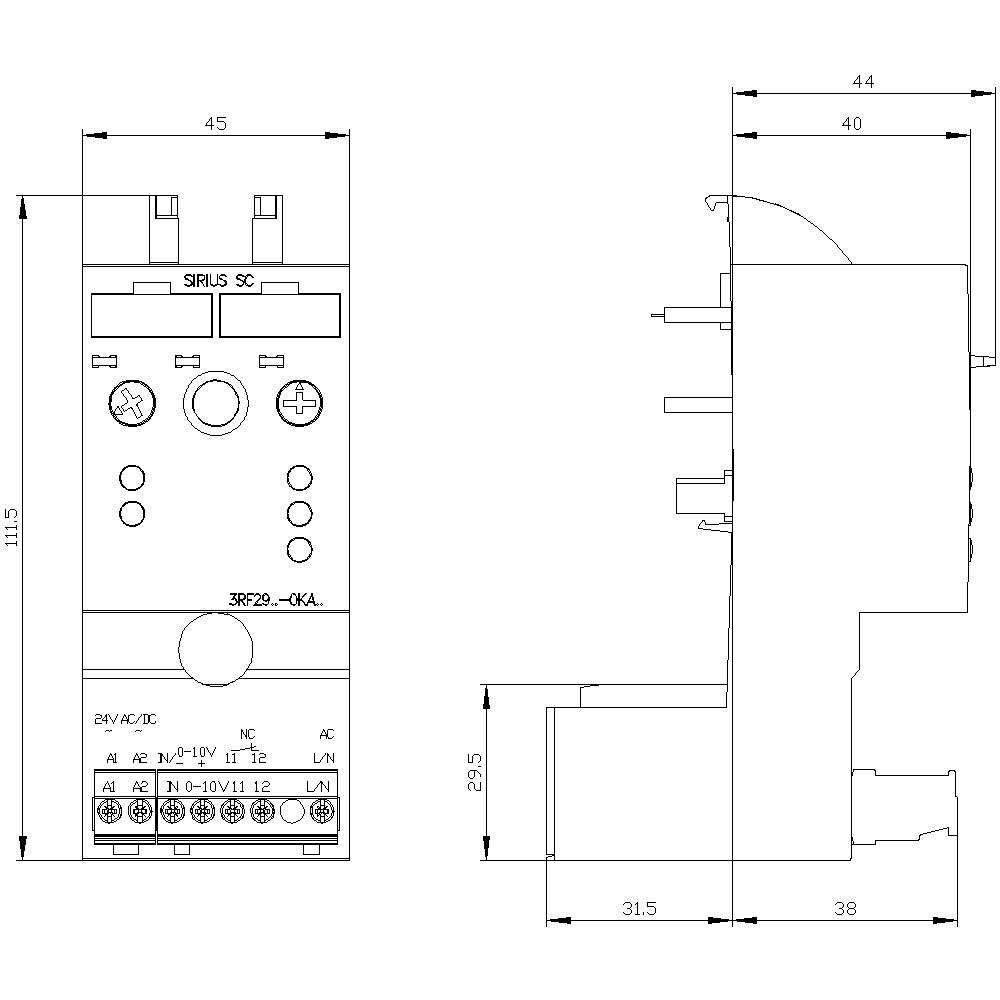

- Width
45 mm
- Height
111.5 mm
- Depth
69.5 mm
- Dim
(W x H x D) 45 x 111.5 x 69.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Mounting type
Push-fit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1742881 Siemens Power controller 24 V 1 change-over 1 pc(s) 3RF2904-0KA13-0KC0
User & Safety Instructions
User & Safety Instructions 1742881 Siemens Power controller 24 V 1 change-over 1 pc(s) 3RF2904-0KA13-0KC0
Description
Solid-state contactor 3-phase 3RF2 AC 51 / 50 A / 40 °C 48-600 V / 230 V AC 2-phase controlled screw terminal Blocking voltage 1200 V
