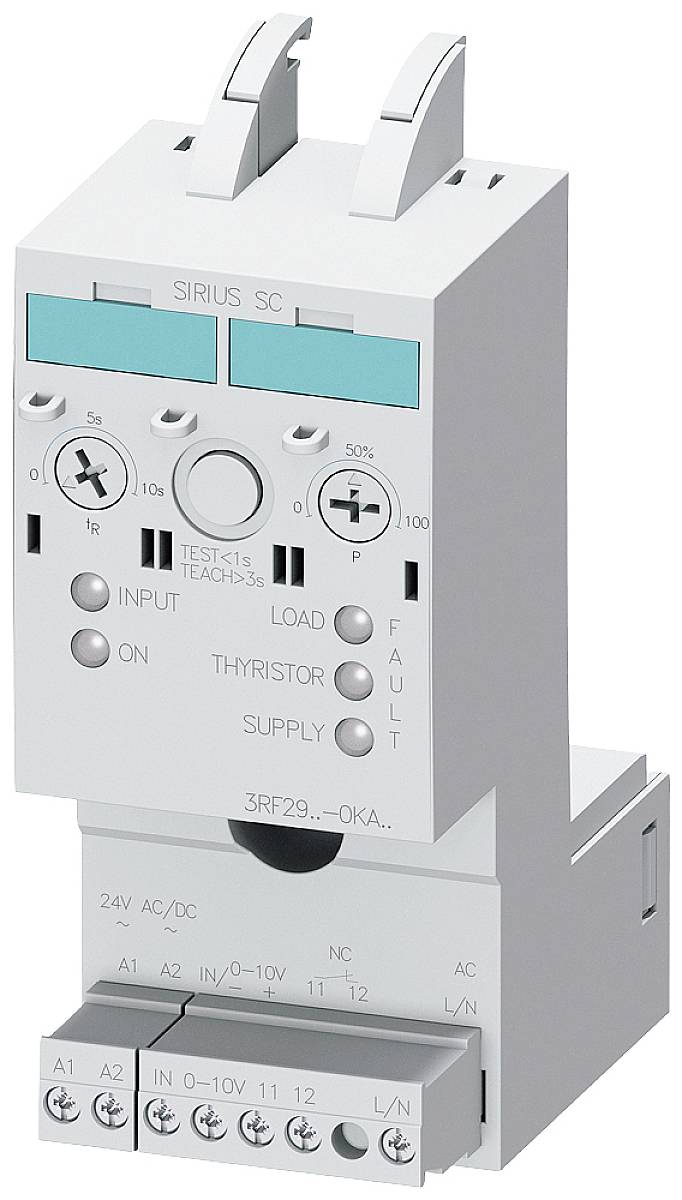

An electrical device with multiple connections and indicators for control and monitoring, described as 'Sirius SC'.

Image similar

An electrical device with multiple connections and indicators for control and monitoring, described as 'Sirius SC'.

An open electrical cabinet reveals various electrical components and wiring, arranged on vertical shelves.

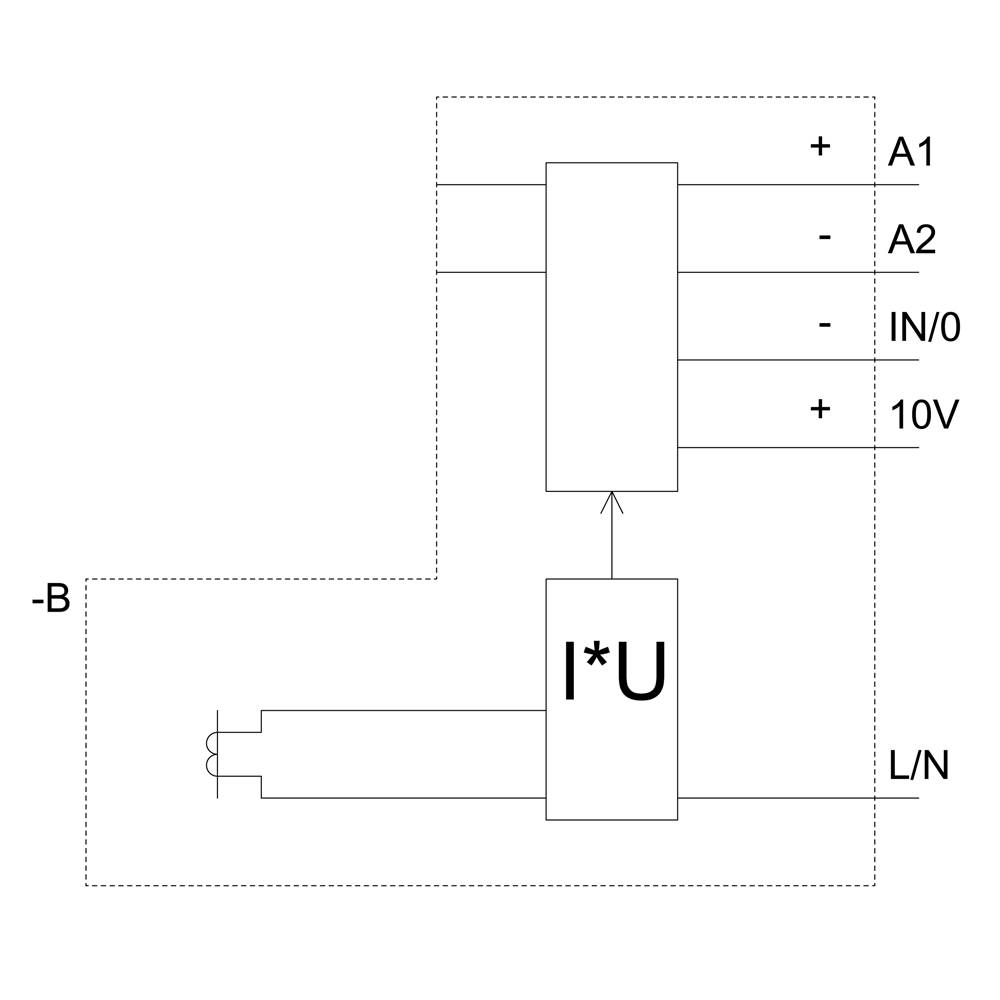

'Circuit diagram of current and voltage measurement. A1, A2: Connections, IN/0: Input, 10V: Voltage output. I*U: Measurement module, L/N: Power line.'

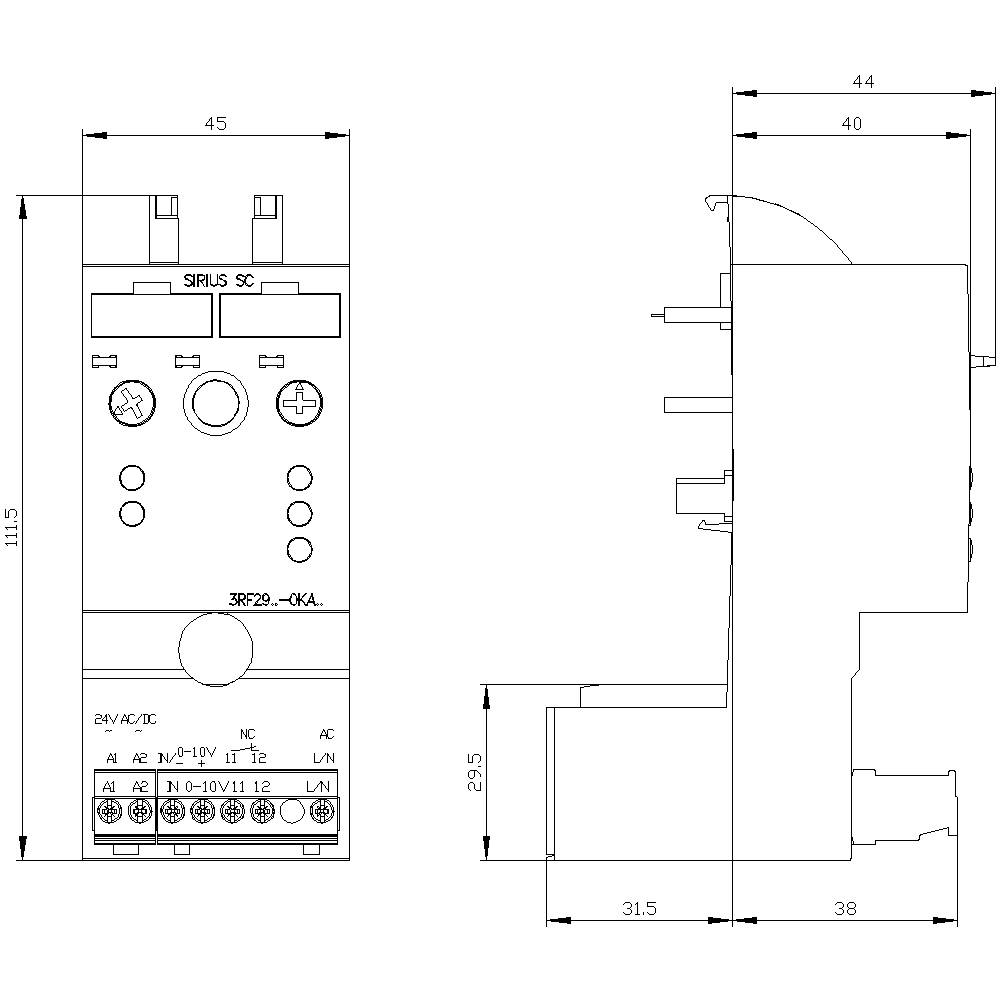

Technical drawing of an electrical component with dimensions in millimetres. Front view and side view display connections and measurements.

1/4

Image similar

Siemens

Datasheet (PDF)

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 201.67 / piece)

€

Report legal concerns

Technical specifications

Auxiliary contact type: 1 NO contact:1 NC contact
Mounting type: Pluggable

Type: 3RF2904-0KA13-0KT0

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 111.5 mm

Depth: 69.5 mm

Dim: (W x H x D) 45 x 111.5 x 69.5 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Mounting type: Push-fit

Product type: Power controller

Documents & Downloads

Datasheet

Datasheet 1742882 Siemens Power controller 1 pc(s) 3RF2904-0KA13-0KT0

User & Safety Instructions

User & Safety Instructions 1742882 Siemens Power controller 1 pc(s) 3RF2904-0KA13-0KT0

Description

Solid-state contactor 3-phase 3RF2 AC 51 / 40 A / 40 °C 48-600 V / 230 V AC 3-phase controlled screw terminal Blocking voltage 1200 V
