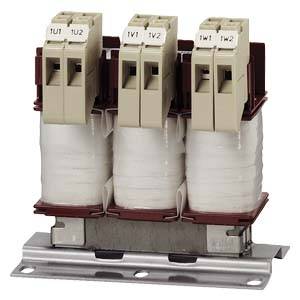

Siemens 4EP32001US00 4EP3200-1US00 Line choke 2.24 mH 6.3 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Line choke
Inductance (L)
2.24 mH
Max. temperature
40 °C
Nominal voltage
480 V
Nominal current
6.3 A
Datasheet (PDF)
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
Highlights & Details
MAIN RCT 3AC480V 60HZ 16A UK2%
Our service for you
Technical specifications
- Protection class IP: IP 00
- Design of electrical connection / on the input: screw/flat plug connection
- Phase number/of the input voltage: 3
- Product type
Line choke
- Inductance (L)
2.24 mH
- Nominal voltage
480 V
- Nominal current
6.3 A
- Max. temperature
40 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
4EP3200-1US00
IP00
50.0-60.0 Hz
FALSE
TRUE
FALSE
TRUE
TRUE
2.24 mH
480 V
3
2 %
5.67-5.67 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1727619 Siemens 4EP32001US00 4EP3200-1US00 Line choke 2.24 mH 6.3 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1727619 Siemens 4EP32001US00 4EP3200-1US00 Line choke 2.24 mH 6.3 A 1 pc(s)
Description
MAINS CHOKE F.FU PHASES:3 UN1(V):480 ITHMAX 1(A) / F1(HZ):16 /60 I LN (A):14,4 UK(%):2 LN(MH):0,881 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW CONNECTION EN 61558-2-20 UL/CSA-RECOGNIZED CHOKE
