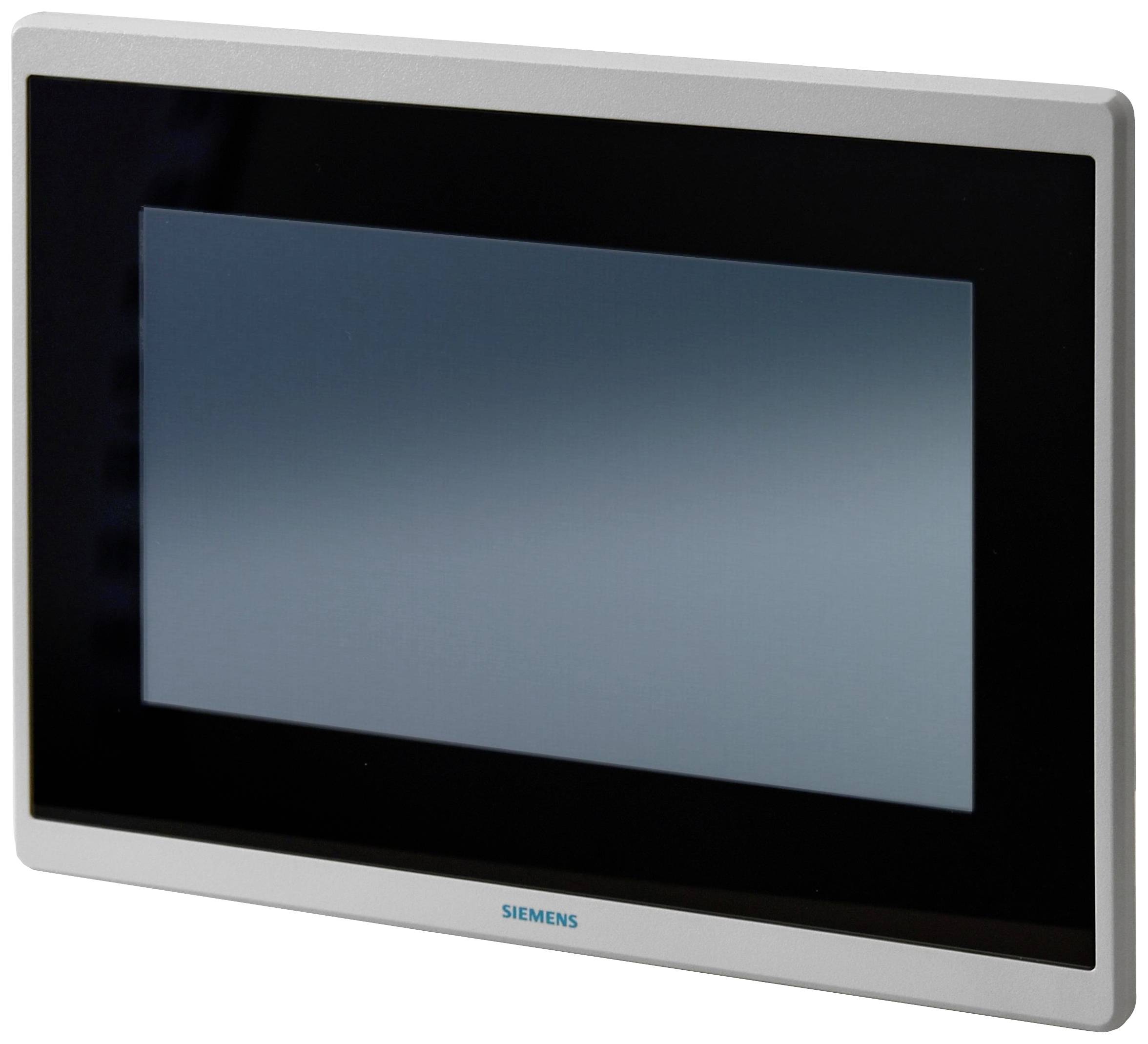

Siemens Siemens-KNX S55623H128 Touchscreen module S55623-H128
EAN:
Part number:
Item no:
Technical specifications
- Product type
Touchscreen module
- Series
Siemens-KNX
- Used at
Indoors
- Operating voltage
24 V DC/AC
- Data transfer (Smart Home)
Wired
- Mounting type
Panel-fit
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Features
Touch function
Other
Monochrome
Other
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2884137 Siemens Siemens-KNX S55623H128 Touchscreen module S55623-H128
Description
High-quality touch panel for on-site technical operation of systems.
- Optimized for local on-site operation of the Design building automation system
- Built-in web server with a BACnet/IP web interface for connecting an HTML5 web browser to a device on the network
- General operation and monitoring of the plant functions (alarms, time switching programs, calendar, set-point changes, display of actual values, etc.)
- Tool-based commissioning with ABT SITE
- Tool-free commissioning with HTML5.0 web browser
- Compact design with low mounting depth, for mounting in cabinet doors
- 7 high-resolution capacitive touch display in widescreen format
- Alarm display LED when the screen is inactive
- Operating voltage 24 V AC or 24 V DC
