Buy Siemens Signal tower component 8WD44205BF 8WD4420-5BF LED Blue 1 pc(s)

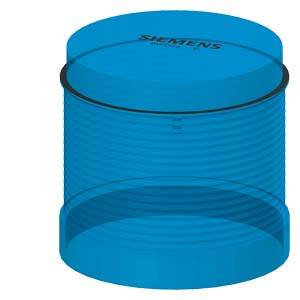

Blue Siemens cylindrical container made of translucent material, depicted without a scaled dimension or additional information.

Image similar

Charger with control lights and display in the foreground, blurred person in the background at a similar station.

Diagram of a logic gate type. Left side with '-P', right side with triangle and two arrows. Numbers '1' at the top, '0' at the bottom.

Technical drawing of a cylindrical object with two views: Side view with dimensions 69.2 x 68.5 mm, and top view.

1/4

Image similar

Datasheet (PDF)

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

Report legal concerns

Technical specifications

Design of the product: Including bulbs
Ambient temperature: -20 °C to +50 °C
LED life 100000 h
Maximum current consumed: 30 mA
Type of bulb: LED

Product type: Signal tower component

Operating voltage: 24 V

Max. current consumption: 30 mA

Factory colour: Blue

Lighted picture: Flashing light

Signal type: Flasher

(Ø): 70 mm

Height: 65.5 mm

Features: LED

: IP65

Dim: (Ø x H) 70 mm x 65.5 mm

Width: 70 mm

Colour: Blue

Material: PC

Type: 8WD4420-5BF

Light intensity: 0.17 cd

Weight: 73 g

Type: Bayonet

Max. temperature: +50 °C

Min. temperature: -20 °C

: Blue

: 70 mm

: Blinker light

: Blue

: AC/DC

: LED

: IP65

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1742559 Siemens Signal tower component 8WD44205BF 8WD4420-5BF LED Blue 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1742559 Siemens Signal tower component 8WD44205BF 8WD4420-5BF LED Blue 1 pc(s)

Description

Installation terminal 2.5 mm2, 5.2 mm width gray PE, L, L disconnect
