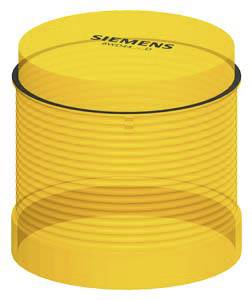

Buy Siemens Signal tower component 8WD44405BD 8WD4440-5BD LED Yellow 1 pc(s)

Image similar

A man in work attire is operating an electric charger. Green, yellow, and red lights are flashing in the foreground.

Siemens Signal tower component 8WD44405BD 8WD4440-5BD LED Yellow 1 pc(s)-2

Diagram of a P-N junction: on the left a negatively charged 'P', on the right an 'N', arrows showing electron movement. Voltage from 1 to 0.

Technical drawing of a cylindrical object. Top: Side view with height 68.5 mm and width 69.2 mm. Bottom: Top view with diameter 68.5 mm.

1/5

Image similar

Datasheet (PDF)

Dispatches on Fri, 25 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€ 100.83

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Design of the product: Including bulbs
Ambient temperature: -20 °C to +50 °C
LED life 100000 h
Current consumption max. 25 mA
Type of bulb: LED

Product type: Signal tower component

Operating voltage: 115 V

Max. current consumption: 25 mA

Factory colour: Yellow

Lighted picture: Flashing light

Signal type: Flasher

(Ø): 70 mm

Height: 65.5 mm

Features: LED

: IP65

Dim: (Ø x H) 70 mm x 65.5 mm

Width: 70 mm

Colour: Yellow

Material: PC

Type: 8WD4440-5BD

Light intensity: 1.05 cd

Weight: 74 g

Type: Bayonet

Max. temperature: +50 °C

Min. temperature: -20 °C

: Yellow

: 70 mm

: Blinker light

: Other

: AC

: LED

: IP65

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1706985 Siemens Signal tower component 8WD44405BD 8WD4440-5BD LED Yellow 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1706985 Siemens Signal tower component 8WD44405BD 8WD4440-5BD LED Yellow 1 pc(s)

Description

Flashlight element, with integrated LED, clear, 230 V AC, Diameter 70 mm
