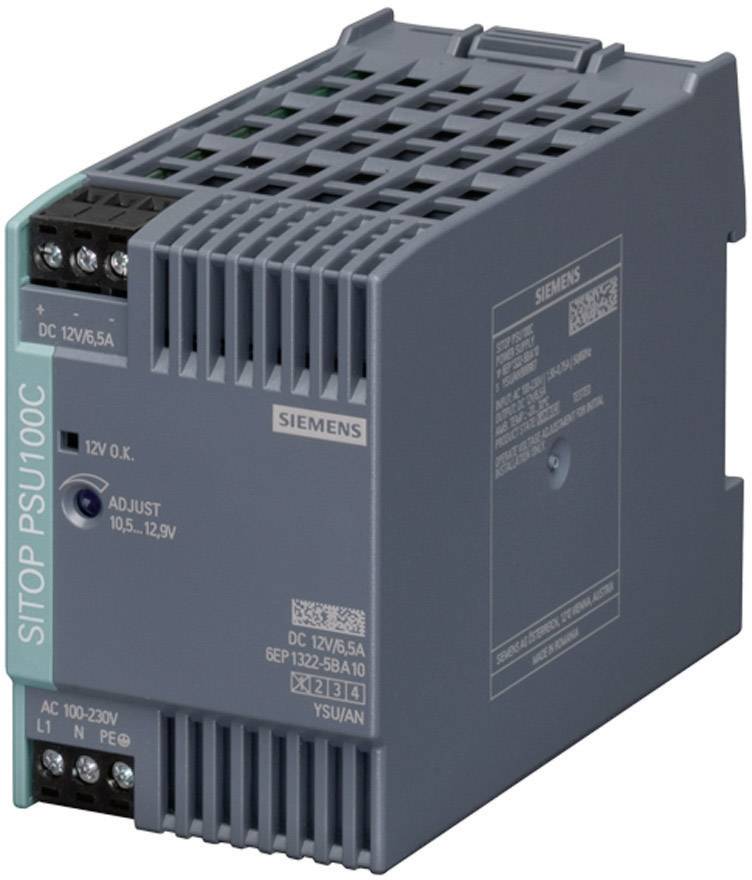

Siemens 6EP13225BA10 Rail mounted PSU (DIN) 12 V DC 6.5 A 78 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Siemens 6EP13225BA10 Rail mounted PSU (DIN) 12 V DC 6.5 A 78 W No. of outputs:1 x Content 1 pc(s)
- Space saving 52.5mm width slim design
- High efficiency rating
- Input voltage range: 85 - 264 Vac, 110 - 300 V DC
- 1 phase
- Output: 12V DC 6.5A 78W
- Switched Mode
- Termination type: Plug terminals
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
110 - 300 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
12 V DC
- Inputs
1
- Input voltage
85 - 264 Vac, 110 - 300 V DC
- Input voltage (max.)
264 V AC
- Max. output current
6.5 A
- Output current (max.) - rounded
6.5 A
78 W
- Phases
1
- Output voltage (nominal)
12 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(W x H x D) 52.5 x 80 x 100 mm
- Weight
0.32 kg
- Output voltage (max.)
12.9 V DC
- Output voltage (min.)
10.5 V DC
- Manufacturer part #
6EP13225BA10
- Content
1 pc(s)
- Width
52.5 mm
- Height
80 mm
- Type
SITOP PSU100C 12 V/6,5 A
- Depth
100 mm
78 W
- Connections
Plug terminals
- Output current (details)
6.5 A
52.5
80 mm
100 mm
180 mm
52.5 mm
TRUE
AC/DC
Screw connection
TRUE
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 513396 Siemens 6EP13225BA10 Rail mounted PSU (DIN) 12 V DC 6.5 A 78 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 513396 Siemens 6EP13225BA10 Rail mounted PSU (DIN) 12 V DC 6.5 A 78 W No. of outputs:1 x Content 1 pc(s)
Description

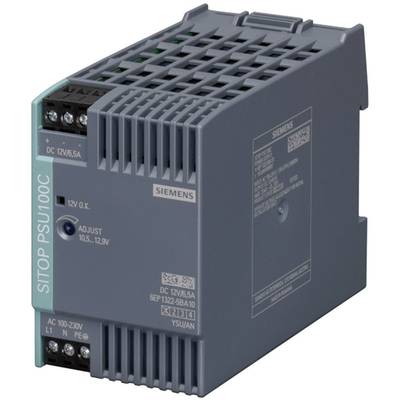

Siemens SITOP PSU100C 12 V/6,5 A power supplies are ideal for switch boxes and small switch cabinets. Power-efficient current supply for DIN rail mounting with less loss of power in the entire load range even in standby mode.
Features
- Power indicator
- Adjustable output voltage (10.5 - 12.9 V)
- Operating temperature -20 to +70 °C (> 50 °C derating).
