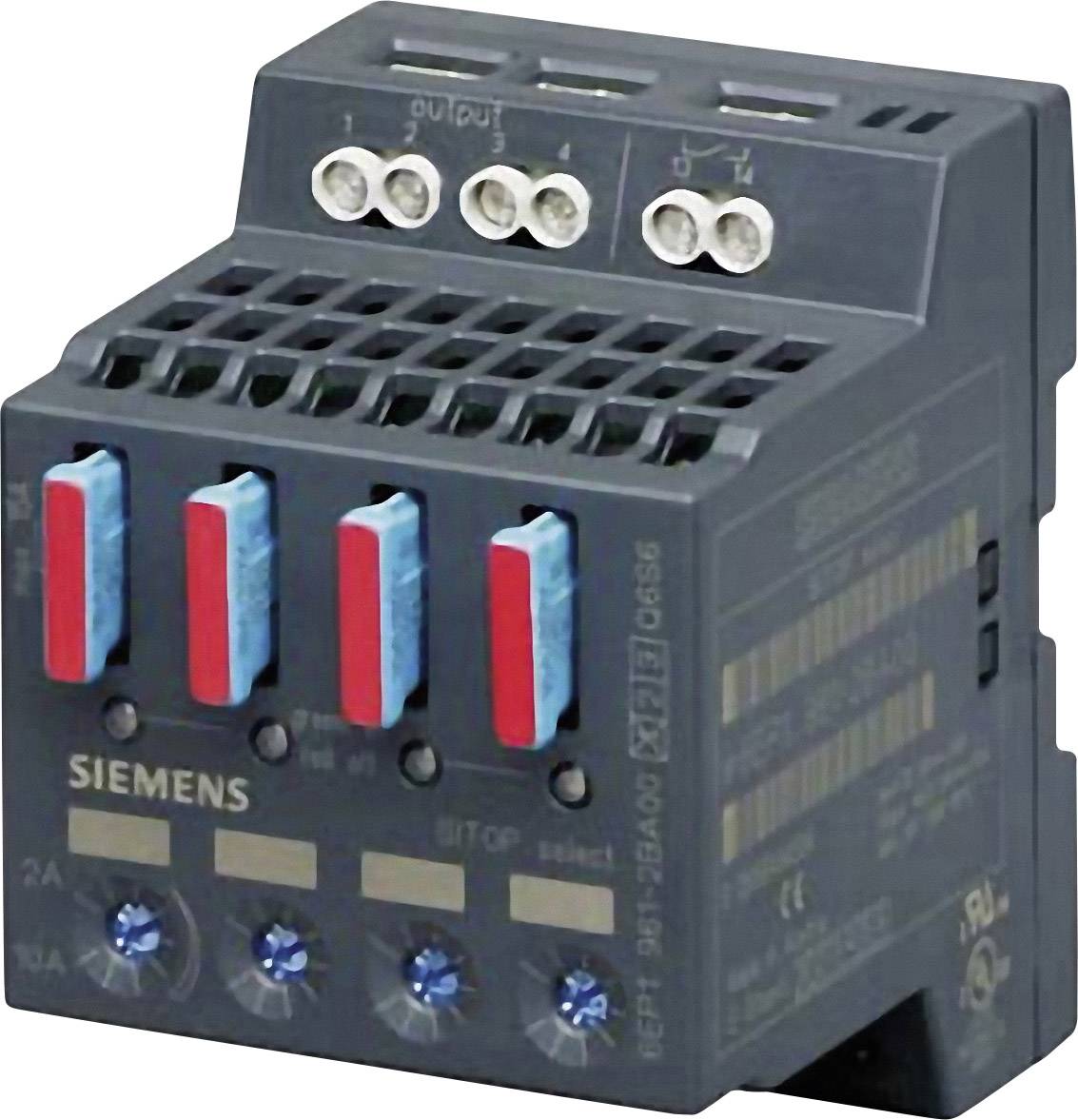

Siemens 6EP19612BA00 Rail mounted PSU (DIN) 24 V DC 10 A No. of outputs:4 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€
Only 4 Piece(s) available
Highlights & Details
Siemens 6EP19612BA00 Rail mounted PSU (DIN) 24 V DC 10 A No. of outputs:4 x Content 1 pc(s)
- / 2 - 10 A
- Input voltage range 24 V DC
Technical specifications
- IP20
- Nominal input voltage
24 V/DC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
22 V DC
- Input voltage
24 V DC
- Input voltage (max.)
30 V DC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
- Output voltage (nominal)
24 V DC
- No. of outputs
4 x
- Connection
Screw terminal
- Dim
(W x H x D) 70 x 90 x 90 mm
- Weight
0.15 kg
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Manufacturer part #
6EP19612BA00
- Content
1 pc(s)
- Width
70 mm
- Height
90 mm
- Max. temperature
+60 °C
- Min. temperature
-40 °C
- Type
SITOP SELECT 4 x 10A
- Depth
90 mm
- Output current (details)
2 - 10 A
72
90 mm
90 mm
FALSE
Screw connection
0
1
0
Documents & Downloads
Datasheet
Datasheet 510197 Siemens 6EP19612BA00 Rail mounted PSU (DIN) 24 V DC 10 A No. of outputs:4 x Content 1 pc(s)
Description
Used in conjunction with 24 V power supplies this diagnosis module SITOP SELECT distributes the load current over several current circuits and monitors these individual current circuits. Any errors on the individual circuits are identified and then selectively switched off.
Features
- Outputs: 4
- Setting range: 2 to 10 A per channel.
