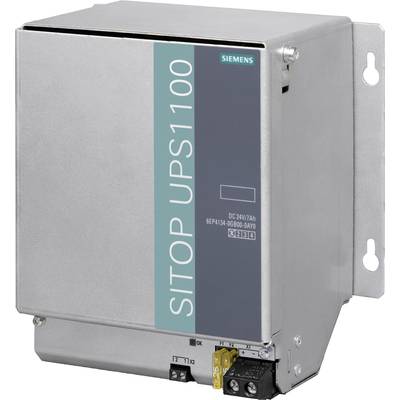

Siemens SITOP UPS1100 6EP41340GB000AY0 Energy storage
EAN:
Part number:
Item no:
Number
Total (€ 163.86 / piece)
€
Only 2 Piece(s) available
Technical specifications
- Product type
Energy storage
- Input voltage (max.)
29 V DC
- Min. input voltage
21 V DC
- Output voltage (max.)
24 V DC
- Dim
(W x H) 186 mm x 186 mm
- Connections
Screw connector
- Output current (details)
40 A
- Weight
6100 g
- Width
186 mm
- Height
186 mm
- Type
SITOP UPS1100
- Output voltage
24 V DC
- Max. current
40 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1275364 Siemens SITOP UPS1100 6EP41340GB000AY0 Energy storage
Security datasheet
Security datasheet 1275364 Siemens SITOP UPS1100 6EP41340GB000AY0 Energy storage
Description
Maintenance-free battery module with 7Ah (wall mounting) for DC-UPS module SITOP UPS 1600, 10 A and 20 A. The intelligent battery management of the UPS 1600 charges the UPS 1100 with the optimum temperature-driven charging characteristics and monitored via Energy Storage Link The Status (operating data and diagnostic information) of the connected battery modules. To increase the performance may be up to six battery modules can be connected in parallel.
This text is machine translated.
This text is machine translated.
Features
- Battery module SITOP UPS 1100 with integrated electronics
- Intelligent battery management
Scope of delivery
- Battery module
Hints
In the storage, installation and operation of the lead-acid batteries are the relevant DIN/VDE regulations or country-specific regulations (e.g., VDE 0510 Part 2 / EN 50272-2) must be observed.
Furausreichende ventilation of the battery location is.
Possible ignition sources must be at least 50 cm away
