Buy Siemens SSR 24 V DC 1 maker 1 pc(s) 3RF2030-1AA06

Industrial relay with 'SIRIUS' designation, grey housing, terminal connection, suitable for switchboard mounting.

An open electrical cabinet with multiple rows of electronic components and cables; shows the internal structure and wiring.

'Circuit symbol for a protective circuit with two anti-parallel diodes. Connections: 1L, 2T, A1+, A2-.'

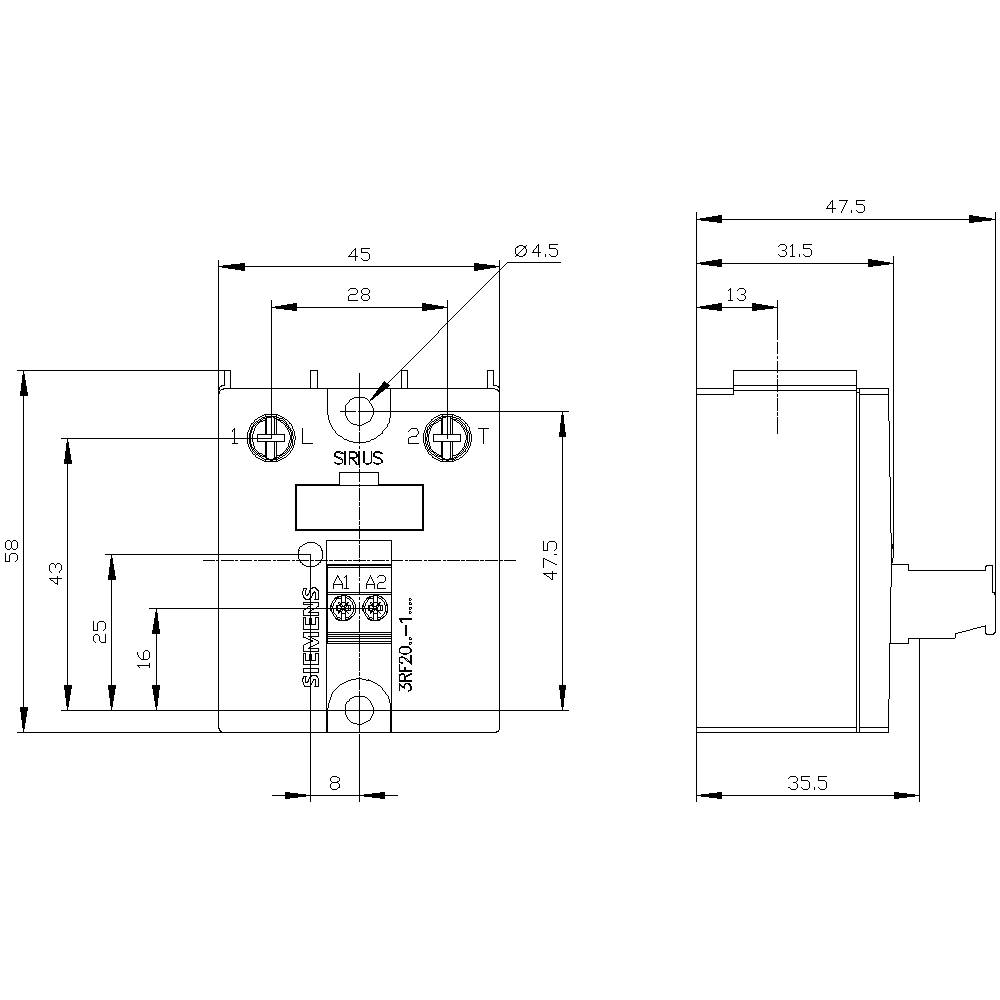

Technical drawing of a SIRIUS device with detailed measurements in millimetres, showing front and side views.

1/4

Product type

SSR

Contact type

1 maker

Switching voltage (max.)

600 V DC/AC

Type

3RF2030-1AA06

Operating voltage

24 V DC

Datasheet (PDF)

Dispatches on Wed, 30 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 67.22 / piece)

€ 67.22

plus VAT.

Report legal concerns

Highlights & Details

SEMI-COND. RELAY 3RF2 WIDTH

Our service for you

Technical specifications

Type of voltage: DC
Conductor cross-section single or multi-wire: 6 mm²
Conductor cross-section for finely-stranded: 10 mm²
Installation type: screw fastening
Number of poles: 1 pole

Product type: SSR

Type: 3RF2030-1AA06

Operating voltage: 24 V DC

Contact type: 1 maker

Switching voltage (max.): 600 V DC/AC

Max. switching capacity: 18000 VA

Connection: Screws

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 58 mm

Depth: 48 mm

Dim: (W x H x D) 45 x 58 x 48 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Mounting type: Screw-fit

No. of pins: 1-pin

: 1

: TRUE

: 30 A

: DC

: 30 A

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1743371 Siemens SSR 24 V DC 1 maker 1 pc(s) 3RF2030-1AA06

User & Safety Instructions

User & Safety Instructions 1743371 Siemens SSR 24 V DC 1 maker 1 pc(s) 3RF2030-1AA06

Description

Semiconductor relay, 1-phase 3RF2 Overall width 45 mm, 70 A 48-600 V / 110-230 V AC screw terminal
